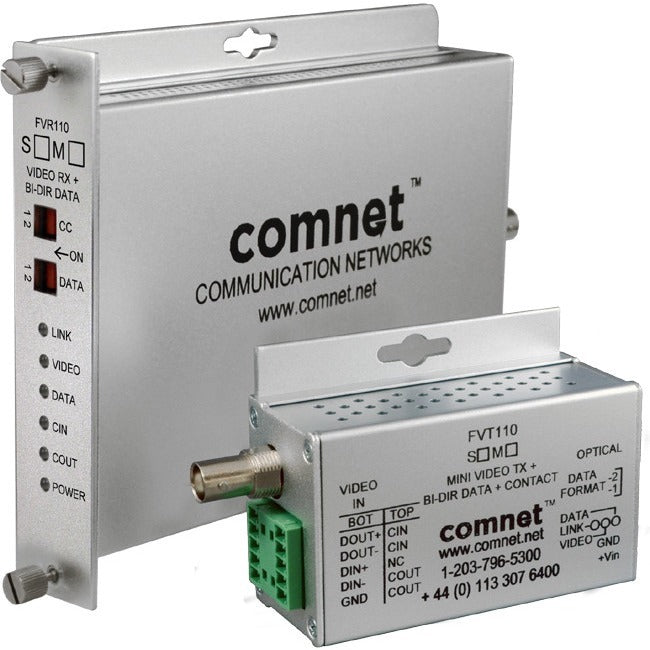

ComNet Mini Video Transmitter/Data Transceiver
The ComNet FVT/FVR110 series is a video transmitter/receiver and data transceiver that supports the simultaneous transmission of short haul quality 10-bit EIA RS-250C digitally encoded video and bi-directional data over one multimode or single mode optical fiber. The module is universally compatible with major CCTV camera manufacturers and supports RS232, RS422 and 2 or 4-wire RS485 data interfaces and most data protocols. It also supports "up-the-coax" data transmission from all major manufacturers, utilizing time-base correction these units can achieve distances of 48km. The FVT/FVR110 supports Panasonic Proteus™ , Pelco Coaxitron™ and Bosch Bilinx™ Up-the-Coax systems. The FVT110 also transmits a single bi-directional contact closure signal. Packaged in the exclusive ComNet ComFit housing, the full-size units may be either wall or rack-mounted, or may be DIN-rail mounted by the addition of ComNet model DINBKT1 adaptor plate.
- Voltage transient protection on all power and signal input/output lines provides protection from power surges and other voltage transient events.
- Automatic resettable fuses on all power lines
- Compatible with all NTSC, PAL, or SECAM CCTV camera systems
- Designed to meet full compliance with the environmental requirements (ambient operating temperature, mechanical shock, vibration, humidity with condensation, high-line/low-line voltage conditions and transient voltage protection) of NEMA TS-1/TS-2 and the Caltrans Specification for Traffic Signal Control Equipment.
- Exceeds all requirements for RS-250C short-haul transmission: True broadcast video performance
- Time-Based Corrected Up-the-Coax Data
- Full Duplex Data channel
- Full Duplex Contact Closure
- Distances up to 30 miles (48 km)
- Supports Panasonic Proteus™, Pelco Coaxitron™and Bosch Bilinx™ Up-the-Coax systems
Product Type: Transceiver/Media Converter
Environmentally Friendly: Yes
Environmental Certification: WEEE
Country Of Origin: United States
Product Series: FVT/FVR110(M,S)1[M]
Brand Name: ComNet
Form Factor: Rack-mountable
Manufacturer: ACRE
Product Name: Mini Video Transmitter/Data Transceiver
Manufacturer Part Number: FVT110M1/M
Manufacturer Website Address: http://www.acre-co.com
Package Contents:
- Mini Video Transmitter/Data Transceiver
- DC Plug-in Power Supply
Limited Warranty: Lifetime
