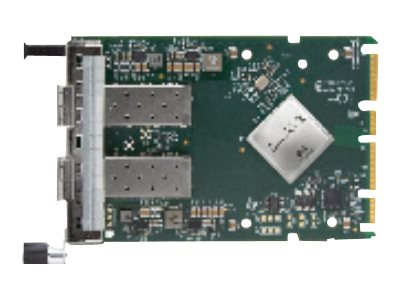

Mellanox ConnectX-6 Dx 25Gigabit Ethernet Card
NVIDIA® Mellanox® ConnectX®-6 Dx SmartNIC is the industry's most secure and advanced cloud network interface card to accelerate mission-critical data-center applications, such as security, virtualization, SDN/NFV, big data, machine learning, and storage. The SmartNIC provides up to two ports of 100 Gb/s or a single-port of 200 Gb/s Ethernet connectivity and delivers the highest return on investment (ROI) of any smart network interface card.
ConnectX-6 Dx is a member of NVIDIA Mellanox's world-class, award-winning ConnectX series of network adapters powered by leading 50 Gb/s (PAM4) and 25/10 Gb/s (NRZ) SerDes technology and novel capabilities that accelerate cloud and data-center payloads.
SECURITY FROM ZERO TRUST TO HERO TRUST
In an era where privacy of information is key and zero trust is the rule, ConnectX-6 Dx adapters offer a range of advanced built-in capabilities that bring security down to the endpoints with unprecedented performance and scalability, including:
- Crypto - IPsec and TLS data-in-motion inline encryption and decryption offload, and AES-XTS block-level data-at-rest encryption and decryption offload.
- Probes & DoS Attack Protection - ConnectX-6 Dx enables a hardware-based L4 firewall by offloading stateful connection tracking through Mellanox ASAP2 - Accelerated Switch and Packet Processing®.
- NIC Security - Hardware Root-of-Trust (RoT) Secure Boot and secure firmware update using RSA cryptography, and cloning-protection, via a device-unique secret key.
ADVANCED VIRTUALIZATION
ConnectX-6 Dx delivers another level of innovation to enable building highly efficient virtualized cloud data centers:
- Virtualization - Mellanox ASAP technology for vSwitch/vRouter hardware offload delivers orders of magnitude higher performance vs. software-based solutions. ConnectX-6 Dx ASAP offers both SR-IOV and VirtIO in-hardware offload capabilities, and supports up to 8 million rules.
- Advanced Quality of Service - Includes traffic shaping and classification-based data policing.
INDUSTRY-LEADING ROCE
Following the Mellanox ConnectX tradition of industry-leading RoCE capabilities, ConnectX-6 Dx adds another layer of innovation to enable more scalable, resilient and easy-to-deploy RoCE solutions.
Zero Touch RoCE - Simplifying RoCE deployments, ConnectX-6 Dx allows RoCE payloads to run seamlessly on existing networks without requiring special configuration on the network (no PFC, no ECN). New features in ConnectX-6 Dx ensure resiliency and efficiency at scale of such deployments.
Configurable Congestion Control - API to build user-defined congestion control algorithms, best serving various environments and RoCE and TCP/IP traffic patterns.
BEST-IN-CLASS PTP FOR TIME SENSITIVE APPLICATIONS
Mellanox offers a full IEEE 1588v2 PTP software solution as well as time sensitive related features called 5T45G. Mellanox PTP and 5T45G software solutions are designed to meet the most demanding PTP profiles. ConnectX-6 Dx incorporates an integrated Hardware Clock (PHC) that allows the device to achieve sub-20 usec accuracy while offering various timing related functions, including time-triggered scheduling or time-based SND accelerations (time based ASAP). Furthermore, 5T45G technology enables software applications to transmit front-haul (ORAN) compatible in high bandwidth. The PTP solution supports slave clock, master clock, and boundary clock.
Selected ConectX-6 Dx SmartNICs provide PPS-Out or PPS-In signals from designated SMA connectors.
- Up to 200 Gb/s bandwidth
- Message rate of up to 215 Mpps
- Sub 0.8 usec latency
- Flexible programmable pipeline for new network flows
- Mellanox Multi-Host with advanced QoS
- ASAP - Accelerated Switching and Packet Processing for virtual switches/routers
- Overlay tunneling technologies
- IPsec and TLS in-line crypto acceleration
- Block crypto acceleration for data-at-rest
- Hardware Root-of-Trust and secure firmware update
Product Type: 25Gigabit Ethernet Card
Brand Name: Mellanox
Form Factor: Plug-in Card
Manufacturer: Mellanox Technologies Ltd
Product Name: ConnectX-6 Dx 25Gigabit Ethernet Card
Device Supported: Server
Product Line: ConnectX-6 Dx
Manufacturer Part Number: MCX623432AC-ADAB
Manufacturer Website Address: http://www.mellanox.com
Package Contents:
- ConnectX-6 Dx 25Gigabit Ethernet Card
- Thumbscrew (Pull Tab) Brackets
Limited Warranty: 1 Year
