Description
- ATX12V / EPS12V
- Yes, flexible cable management
- 80 PLUS GOLD Certified
- 110 - 240 V 50/60 Hz

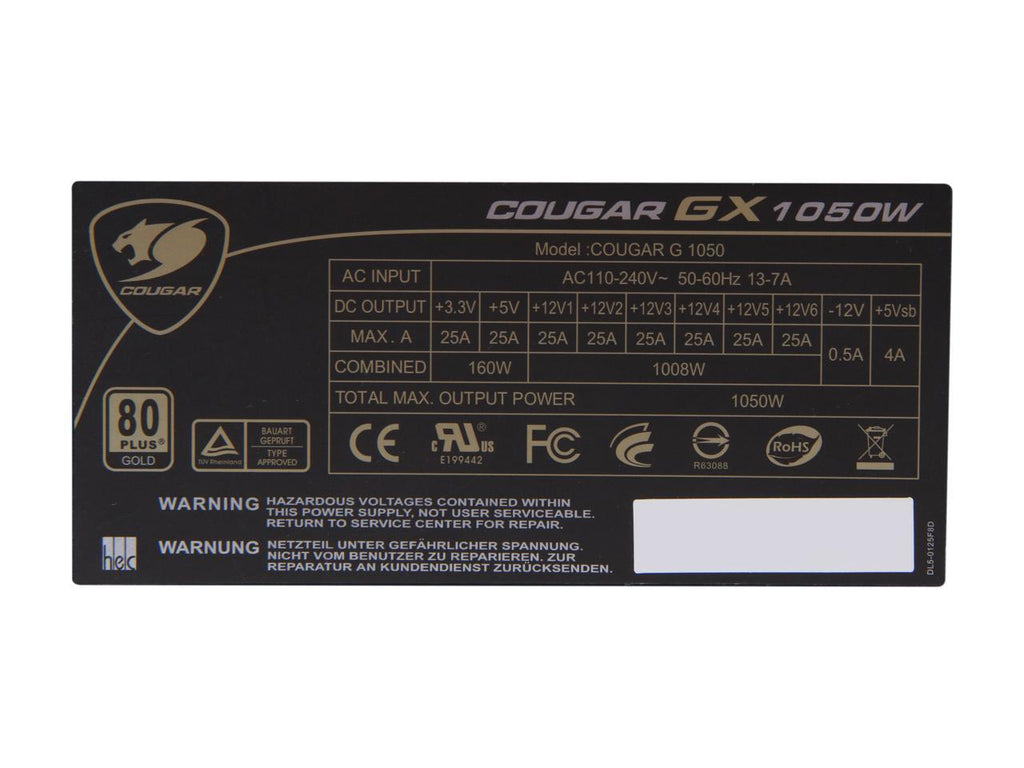

- +3.3V@25A, +5V@25A, +12V1@25A, +12V2@25A, +12V3@25A, +12V4@25A, +12V5@25A, +12V6@25A, [email protected], +5VSB@4A
New high-end series of power supplies specifically targeting demanding gamers, the COUGAR GX V3 series. The 80Plus Gold certified GX V3 series provides up to 93% peak efficiency. The advanced cable management solution allows users to only use those cables their peripherals actually need, thereby effectively reducing cable mess while at the same time improving air circulation and ventilation within the case. The rugged black coating in combination with the gold vent grill add to the overall robust and aggressive appearance of these units, thereby effectively increasing the game-style looks. COUGAR GX power supply, your best choice.
HIGH EFFICIENCY
Up to 93% efficiency with 80-PLUS GOLD efficiency requirement
SUPER SILENT & BEST LIFESPAN
Fan speed automatically governed based on the temperature.
105°C JAPANESE CAPACITORS
Best reliability, delivering 4 times the lifespan of conventional 85°C rated capacitors.
HIGH PERFORMANCE AT 50°C
Non-stop high performance and full rated wattage at 50°C/122°F ambient temperature.
COMPLIANT WITH THE LATEST ErP Lot6 2013
In Standby consumption is <0.3W
Specifications
| Model Name | AC Input | DC output | ||||||
|---|---|---|---|---|---|---|---|---|
| +3.3V | +5V | +12V1 | +12V2 | -12V | +5Vsb | Total | ||
| GX-1050 | 100-240Vac 50-60Hz 12-6.3A |
25A | 25A | 60A | 60A | 0.8A | 4A | 1050W |
| 160W | 1020W | |||||||
| Connector | Main | CPU | CPU | Peripheral | S-ATA | PCI-E |
|---|---|---|---|---|---|---|
| Pin | 24(20+4) Pins | 8(4+4) Pins | 8(4+4) Pins 8 Pins |
4 Pins | 5 Pins | 8(6+2) Pins |
| GX-1050 | 1 | - | 1 | 4 | 10 | 6 |
Features
80-PLUS Gold Certified
Up to 93% of efficiency, compliant with 80-PLUS GOLD efficiency requirement
105 °C JAPANESE CAPACITORS
Highest durable 105°C Japanese capacitors provide uncompromised performance and reliability, delivering 4 times the lifespan of conventional 85°C rated capacitors.

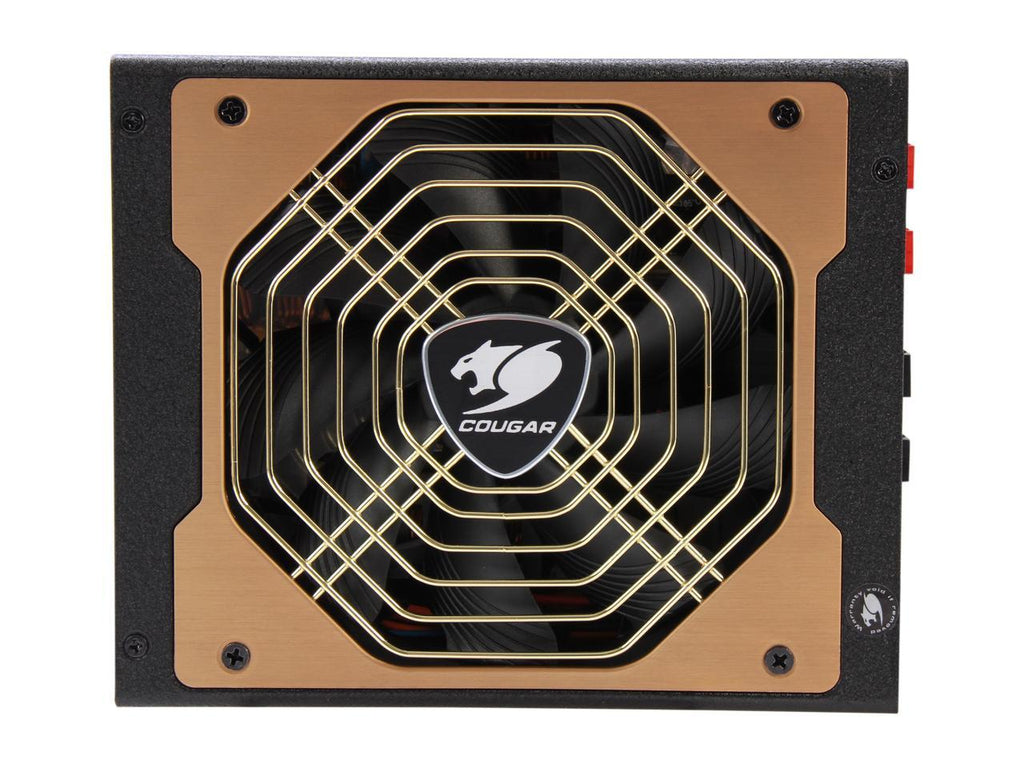

ULTRA-QUIET & TEMPERATURE-CONTROLLED 140mm FAN
140mm double ball bearing fan deliver optimum air flow with extremely low noise level, the fan speed automatically governed based on the temperature.
HIGH PERFORMANCE AT 50°C
Non-stop high performance and full rated wattage at 50°C/122°F ambient temperature.

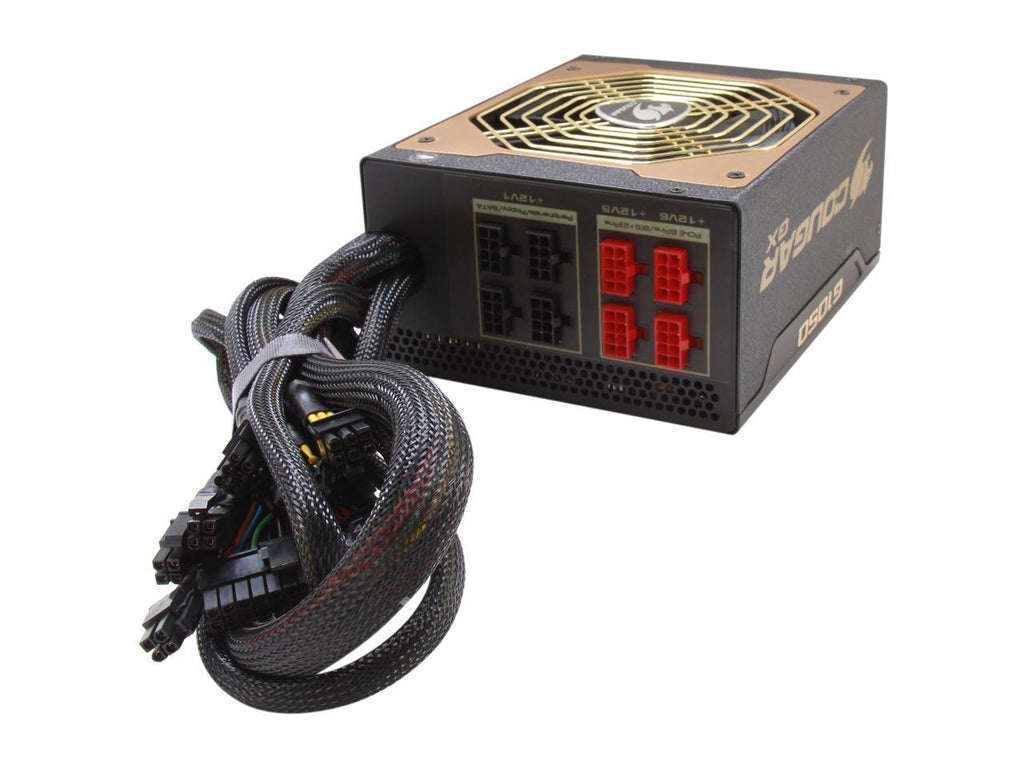

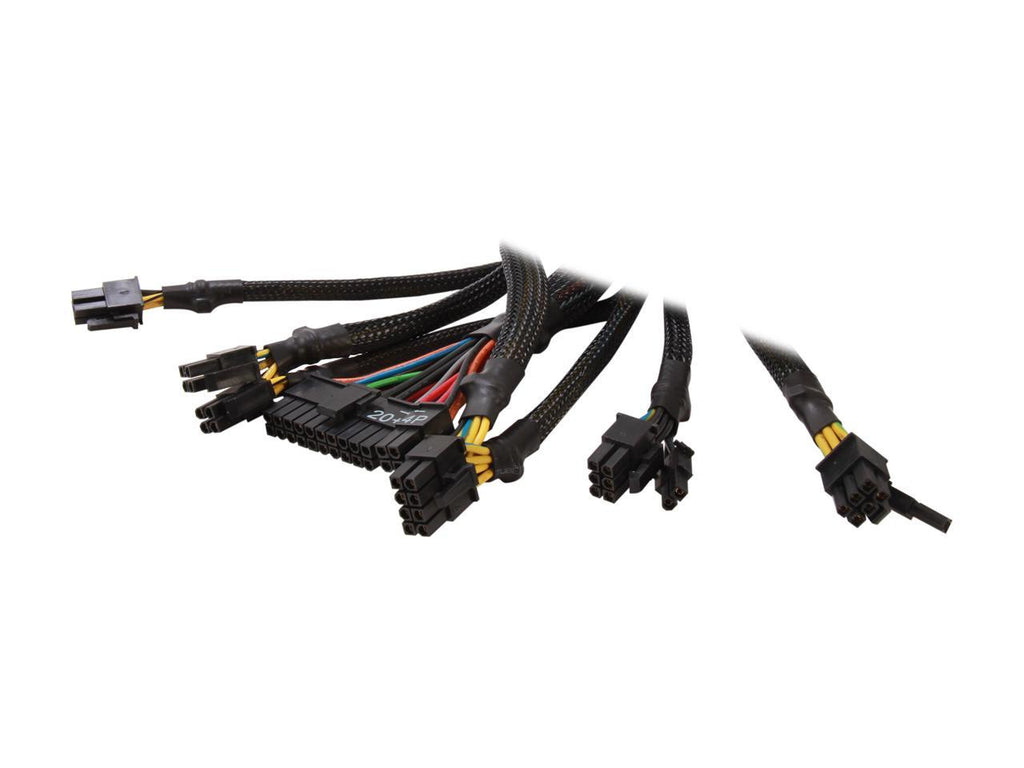

ADVANCED MODULAR CABLE
The advanced modular cable management is further improved by utilizing new flat cables that simplify installation as well as reducing air friction in order to maximize airflow. This gives gamers the power they need, and flexibility of easy upgrades they demand.
DYNAMIC MULTI-12V
Automatic dynamic load distribution on multi-12V lines provide high voltage stability power separately to the GPU and the CPU. If you are not using all output lines, the PSU automatically reroutes needed power from unused lines. This improves the performance and safety of the 12V lines considerably for systems with high-end graphics cards in SLI® or CrossFire mode.
>COMPATIBLE WITH LATEST PC-TECHNOLOGY
Supports the newest specifications of ATX12V v2.31 and EPS 2.92 standards Created for usage with current and next-generation multi-core CPU platforms.
COMPLIANT WITH THE LATEST ErP Lot6 2013
In Standby consumption is <0.3W, compliant with economy-friendly electrical equipment.
SUPPORT MULTI-GPU TECHNOLOGY
Support PCI Express 2.0 next-generation graphic card with 8(6+2)pin PCI-E connector.
FULL PROTECTIONS WITH OCP, SCP, OVP, UVP, OPP & OTP
Protection
UVP (Under Voltage Protection)
If the voltages fall below a certain tolerance value on the single lines, the PSU automatically switches off.
OVP (Over Voltage Protection)
If the voltages increase above a certain tolerance value on the single lines, the PSU automatically switches off.
SCP (Short-Circuit Protection)
In the case of a short-circuit this feature prevents damage to the core components of the PSU and its system components.
OPP (Over Load Protection)
If the system is over sized and requires more power from the PSU than it can perform, this protection function is activated.
OCP (Over Current Protection)
If the load on a single line is higher than indicated, the PSU automatically switches off.
OTP (Over Temperature Protection)
If the temperature is too high, the PSU automatically switches off.
Safety Requirement
Gallery
General Information
| UPC | 871520007646 |
|---|
