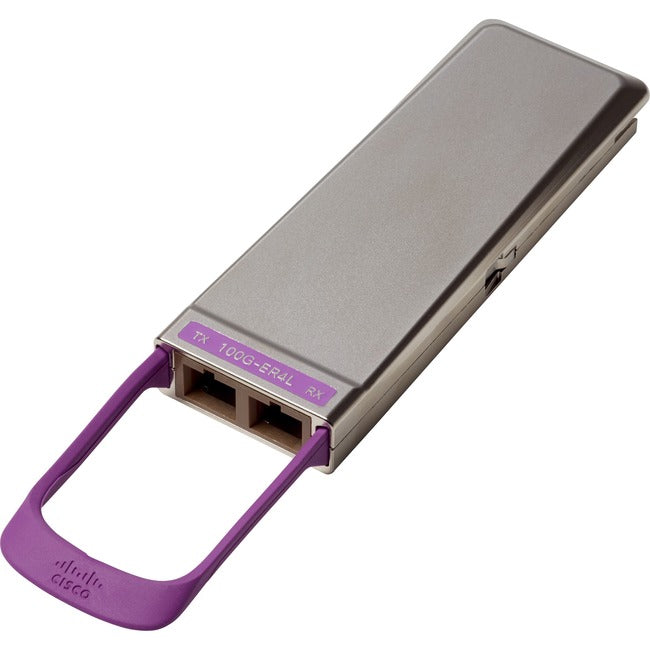

Cisco CPAK 100GBASE-ER4 Lite Module
The primary application of the Cisco CPAK 100GBASE-ER4 Lite module is to support 100-Gbps optical links over standard single-mode fiber (SMF, G.652) terminated with SC connectors. Nominal power consumption is less than 7.5W.
The ER4 Lite module is compatible with the 100GBASE-ER4 standard and supports link lengths up to about 25 km over standard SMF, G.652. It delivers an aggregate data signal of 100 Gbps, carried over four LAN wavelength-division multiplexing (WDM) wavelengths operating at a nominal 25 Gbps per lane. The module can be used over longer distances in engineered links with CPAK-100G-ER4L modules at both ends. Optical multiplexing and demultiplexing of the four wavelengths are managed within the module.
- Optical fiber cable compatible - Spans afar and provides speedy data transmission rates between servers and network components
- For transmitting data at gigabit speed over hundreds of miles with little integrity loss, single-mode fiber optic is an ideal solution
- Provides high performance and flexible solution with 100 Gigabit Ethernet connectivity
- With 100GBase-ER4 technology, get up to 100Gbps data transfer rate over optical fiber cable
Product Type: CFP
Country Of Origin: Thailand
Brand Name: Cisco
Form Factor: Hot-swappable
Manufacturer: Cisco Systems, Inc
Product Name: CPAK 100GBASE-ER4 Lite Module
Manufacturer Part Number: CPAK-100G-ER4L=
Manufacturer Website Address: http://www.cisco.com
Weight (Approximate): 0.28 lb
