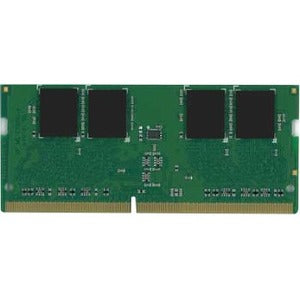

Dataram 4Gb Ddr4 Sdram Memory Module Dtm68611-H

Dataram 4GB DDR4 SDRAM Memory Module
DTM68611-H is a non-ECC Unbuffered DDR4 small-outline 512Mx64 memory module, which conforms to JEDEC's PC4- 2400 standard. The assembly is SingleRank. The rank is comprised of eight 512Mx8 DDR4-2400 SKHynix SDRAMs. One 4K-bit EEPROM is used for Serial Presence Detect.

Both output driver strength and input termination impedance are programmable to maintain signal integrity on the I/O signals in a Fly-by topology.

• 4 GB memory smoothly executes complex apps and games


• DDR4-2400/PC4-19200 interface multiplexes 2-bit data from memory cell and I/O buses to minimize processor idle time and enhance your computer's performance


• Up to 2400 MHz speed with unbuffered signal for playing the latest games and using heavy software

Product Type: RAM Module
Environmentally Friendly: Yes
Environmental Certification: RoHS
Brand Name: Dataram
Form Factor: SoDIMM
Length: 2.7"
Manufacturer: Dataram Corporation
Product Name: 4GB DDR4 SDRAM Memory Module
Manufacturer Part Number: DTM68611-H
Manufacturer Website Address: http://www.dataram.com
Number Of Pins: 260-pin
Thickness: 145.7 mil
