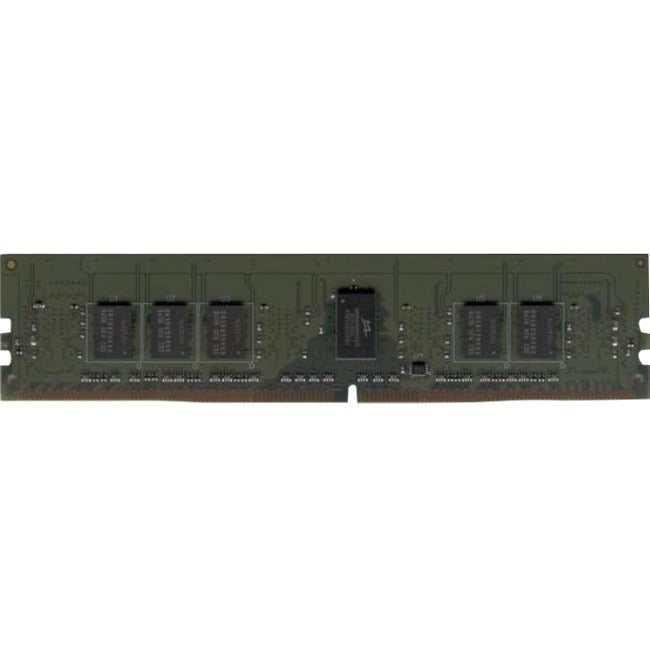

Dataram 4Gb Ddr4 Sdram Memory Module Dvm21R1T8/4G

Dataram 4GB DDR4 SDRAM Memory Module

DVM21R1T8/4G is a registered 512Mx72 memory module, which conforms to JEDEC's DDR4-2133, PC4-2133 standard. The assembly is Single-Rank. The rank is comprised of nine 512Mbx8 DDR4- 2133 SDRAMs.

One 4K-bit EEPROM is used for Serial Presence Detect and a combination register/PLL, with Address and Command Parity, is also used.

Both output driver strength and input termination impedance are programmable to maintain signal integrity on the I/O signals in a Fly-by topology.

A thermal sensor accurately monitors the DIMM module and can prevent exceeding the maximum operating temperature of 95C.

• DIMM 4 GB memory smoothly executes complex apps and games


• DDR4 SDRAM interface multiplexes 2-bit data from memory cell and I/O buses to minimize processor idle time and enhance your computer's performance

Product Type: RAM Module
Environmentally Friendly: Yes
Environmental Certification: RoHS
Brand Name: Dataram
Form Factor: DIMM
Length: 1.2"
Manufacturer: Dataram Corporation
Product Name: 4GB DDR4 SDRAM Memory Module
Manufacturer Part Number: DVM21R1T8/4G
Manufacturer Website Address: http://www.dataram.com
Number Of Pins: 288-pin
