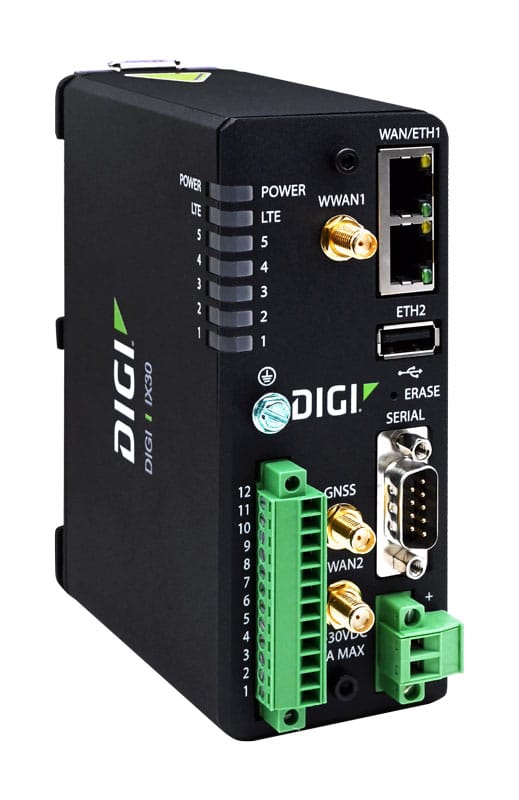

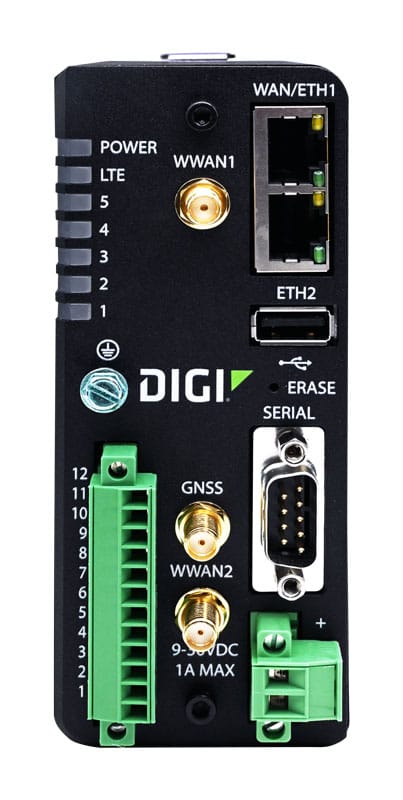

Digi IX30 — FirstNet Capable LTE-Advanced Cat 7
-
Cellular connectivity:
- FirstNet Capable™ LTE-Advanced Cat 7
- LTE-Advanced Cat 7 — FDD: B2, B4, B5, B7, B12, B13, B14 FirstNet®, B25, B26, B66, B71; TDD: B41, B42, B43, B48
- WCDMA: B2, B4, B5
- GNSS: GPS, GLONASS, BeiDou, Galileo, QZSS
- Connectors: (3) 50 Ω SMA (2x cellular, 1x GNSS); center pin: female
- SIM slots: (2) Mini-SIM (2FF)
- SIM security: Secured in cellular module
- GNSS: Protocol NMEA 0183 V3.0; Acquisition Time Hot Start 1 s; Warm Start 29 s; Cold Start 32 s; Accuracy Horizontal: < 2 m (50%), < 5 m (90%); Altitude: < 4 m (50%), < 8 m (90%); Velocity: < 0.2 m/s
-
Software and management:
- Remote management: Digi Remote Manager®, SNMP v1/v2c/v3 (user installed/managed), SMS
- Local management: Web UI (HTTP/HTTPS); CLI (Telnet, SSH, Serial)
- Management / troubleshooting tools: FTP, SFTP, SCP; protocol analyzer with PCAP for Wireshark; event logging with Syslog and SMTP; NTP/SNTP
-
Ethernet:
-
Ports: (2) RJ-45; 10/100 Mbps (auto-sensing)
-
Serial:
- (1) DB-9 DTE
- RS-232/422/285
- Signal support: TXD, RXD, CTS, DTR, DCD, DSR, RI
- Flow control: software (XON/OFF), hardware supported
-
I/O:

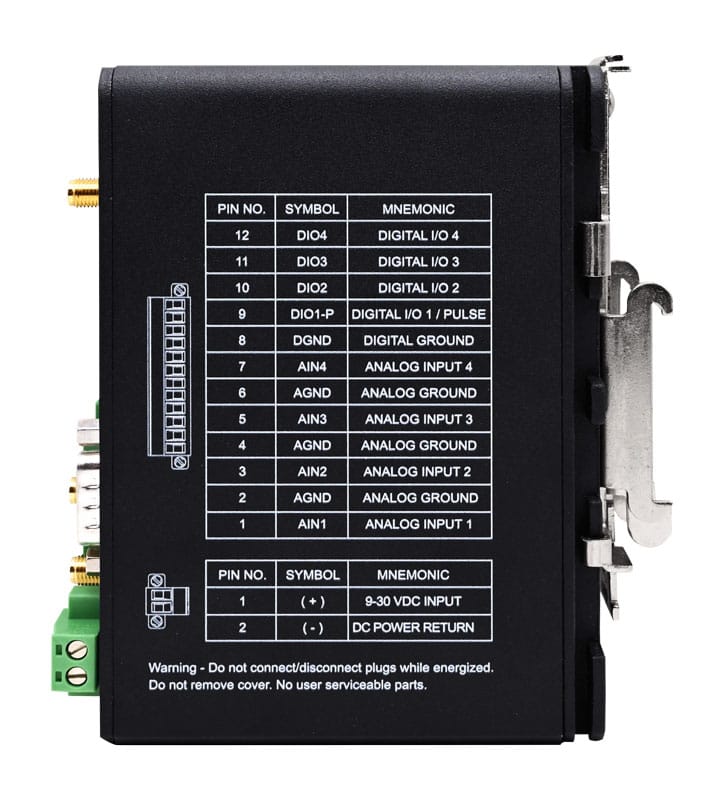

- Connector: 12-pin screw down terminal block
- Digital: 0-30 VDC, 200 mA max.; (4) I/O, software-selectable; pulse counter input
- Analog: (4) analog I/O; 4-20 mA or 0-10 V, software-selectable; 12-bit resolution
-
USB:
- Ports: (1) USB 2.0 Type A; 5 V 500 mA max
-
Physical:
-
Dimensions (L x W x H): 12.8 cm x 10 cm x 5.2 cm (5.04 in x 3.94 in x 2.05 in)
- Weight: 0.5 kg (1.1 lb)

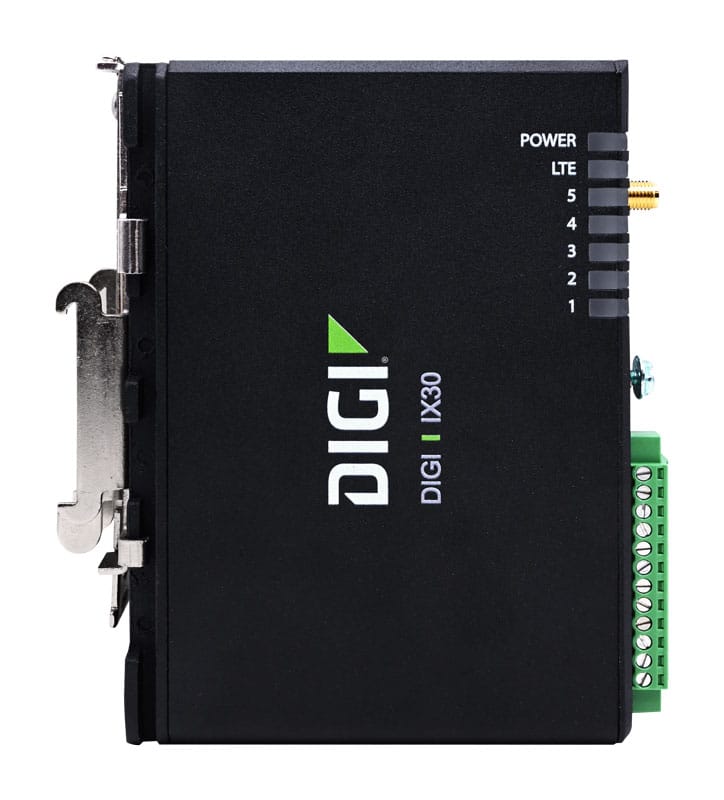

- Status LEDs: Signal Strength (5), LTE, Power
- Enclosure/Rating: Aluminum / IP30
- Mounting: DIN rail mount
-
Power requirements:
- Power input: 9 – 30 VDC, 18 W min power source required
- Power connector: Screw down removable terminal block
- Power consumption: 1.5 W (light traffic flow), 3.5 W (peak data transmission); 1 W (low power mode, idle traffic, no serial/no Ethernet WAN)
-
Environmental:
- Hazardous (Class 1 Div 2): Yes
- Operating temperature: -34° C to 74° C (-29° F to 165° F); reduced cellular performance may occur above 60° C (140° F)
- Storage temperature: -40° C to 85° C (-40° F to 185° F)
- Ethernet isolation: 1.5 kV RMS
- Serial port protection (ESD): 15 kV
- Relative humidity: 5% to 95% (non-condensing)
-
Approvals:
-
Cellular (IX30-00P7): PTCRB, Verizon, T-Mobile, AT&T, FirstNet Capable™; visit www.digi.com/resources/certifications for latest cellular certifications
- Safety: Hazardous locations: ANSI/ISA-12.12.01-2015, CAN/CSA C22.2 NO.213-15; Ordinary locations: UL 62368-1, 2nd Edition, 2014-10-14; UL 62368: 2014, 2nd Edition; ATEX standards: Protection method II 3 G Ex nA IIC T4 Gc; EN 60079-0:2012+A11:2013, EN 60079-15:2010, DEMKO 15 ATEX 1574X Rev. 1
- IECEX standards: US/UL/ExTR17.0077/00
- Emissions / Immunity: CE, RED, FCC Part 15 Subpart B, ICES-003, AS/NZS CISPR 322
- Environmental: RoHS3
-
Product warranty: 3-year*
-
Available accessories: Accessories not included; view available accessories
- IX30 Accessory Kit — PSU, antennas, Cat 6 Ethernet cable, GPS antenna: 76002113 (recommended)
- Power supply (required, choose industrial extended temperature or commercial)
- Power supply — 18 VDC, 1 A, wall mount level VI, industrial temperature, changeable plug tips, 2-pin combicon screw terminal plug: 76002104
- Power supply — 18 VDC, 1 A, wall mount level VI, commercial temperature, changeable plug tips, 2-pin combicon screw terminal plug: 76002117
- Antenna — 5G/LTE 600 MHz - 6 GHz, swivel, black: 76002114 (recommended / optional)
- Antenna base — SMA, 1 m, RG174: 76000954 (recommended / optional)
- Cable — UTP, Cat 6, 2 m (6 ft), black, flat patch cable: 76002106 (recommended / optional)
What's in the box:
-
Digi IX30 — LTE-A Cat 7 North America, FirstNet Capable, dual Ethernet, RS-232/422/485, GNSS
*Standard 3-year warranty upgradeable to 5 years with purchase of a Digi Remote Manager Premier 5-year subscription applicable to the product purchased only at the time of product purchase and with product registration at that time in Digi Remote Manager.
