Description :

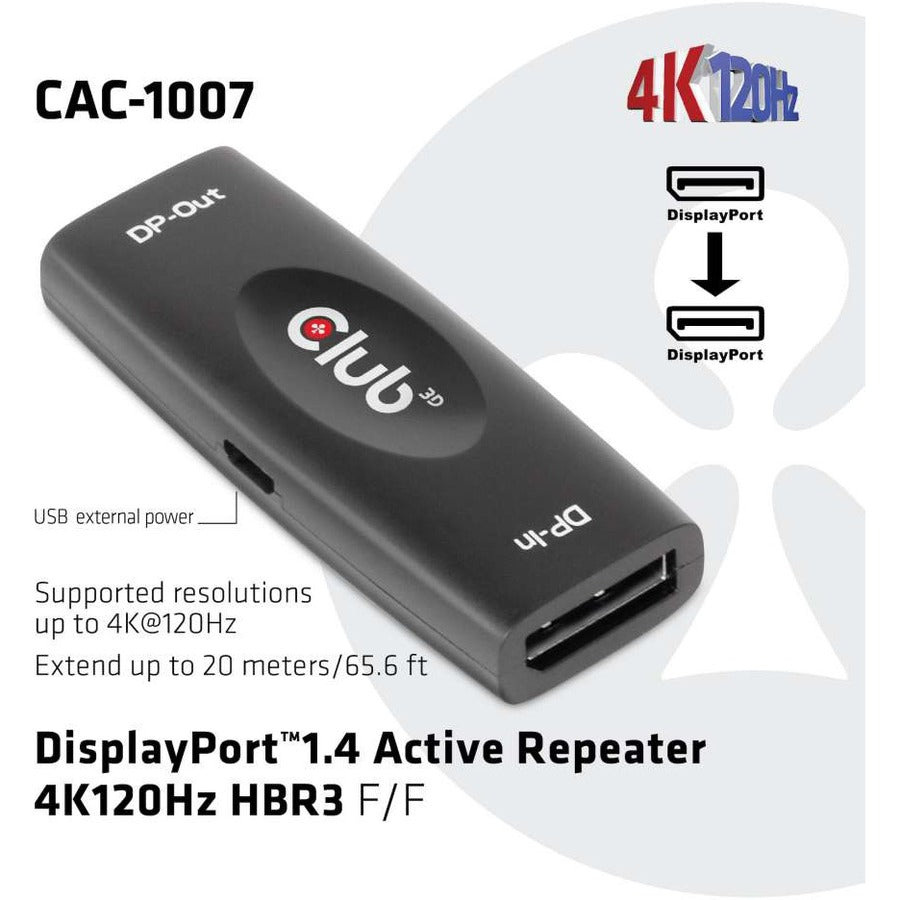

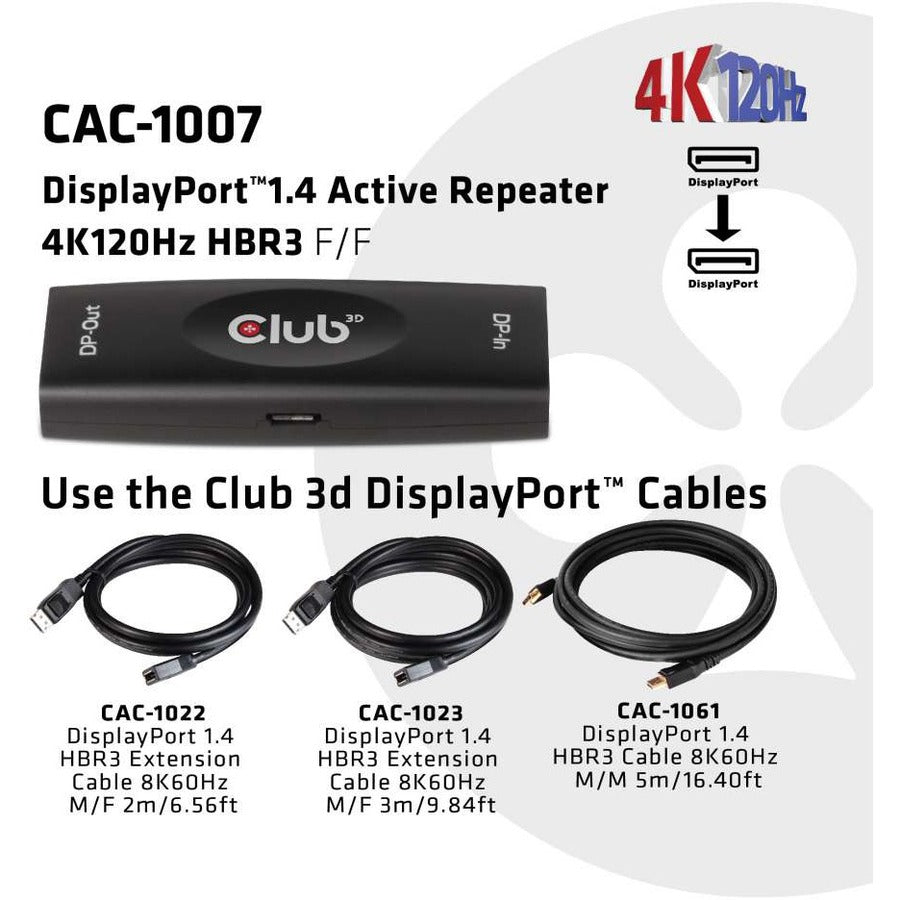

Club 3D DisplayPort 1.4 Active Repeater 4K120Hz HBR3 F/F

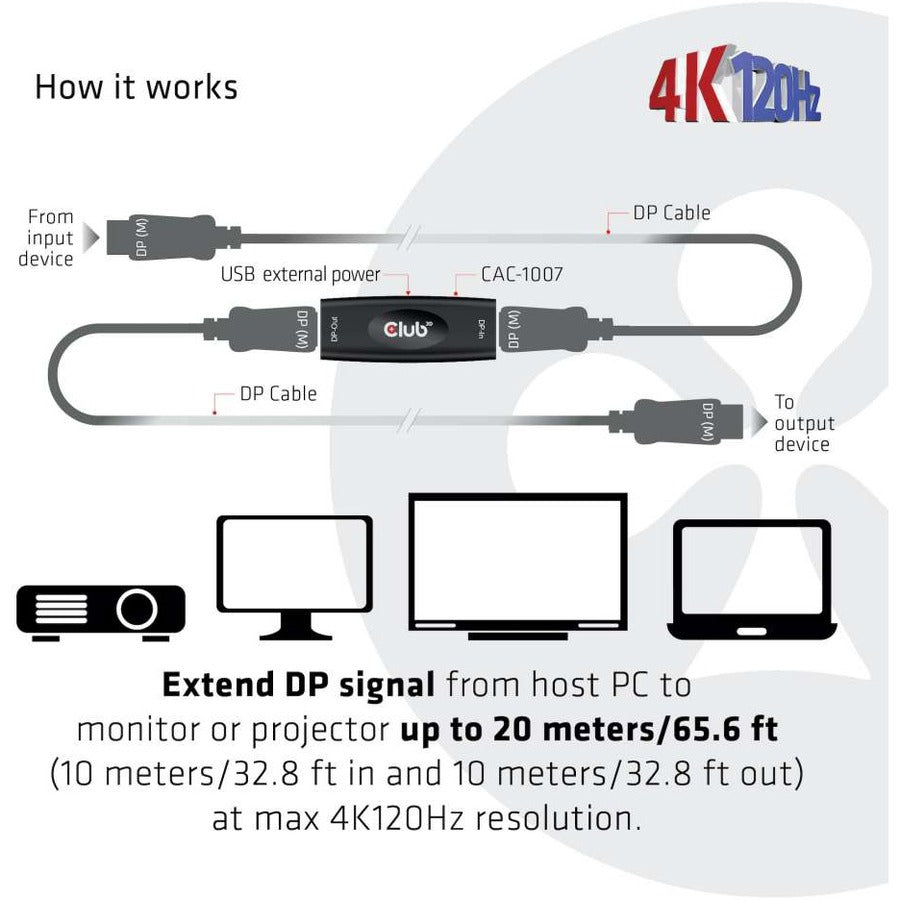

The Club 3D CAC-1007 is a DisplayPort™ 1.4 active repeater, which provides a convenient method for users to extend DP™ signal from host PC to monitor or projector up to 20 meters/65.6 ft (10 meters/32.8 ft in and 10 meters/32.8 ft out) at max 4K120Hz resolution, for 28AWG or above cable.
The Adapter is powered thru an Micro USB to USB Type A cable(provided with the product).
- Support DP1.4™ and downward compatible with lower versions
- Transmission speed 1.62 Gbps / 2.7 Gbps / 5.4Gbps / 8.1 Gbps
- Support DisplayPort™ 1.4 HBR3 with max video resolution 4K@120Hz.
- Extending Distance: max 20m/65.6ft (10m/32.8ft input, 10m/32.8ft output) for 28AWG or above cable,
- Support cascading function up to 3 levels
Product Type: Signal Repeater
Environmentally Friendly: Yes
Environmental Certification: RoHS
Brand Name: Club 3D
Manufacturer: Club 3D
Product Model: CAC-1007
Product Name: DisplayPort 1.4 Active Repeater 4K120Hz HBR3 F/F
Manufacturer Part Number: CAC-1007
Manufacturer Website Address: http://www.club-3d.nl

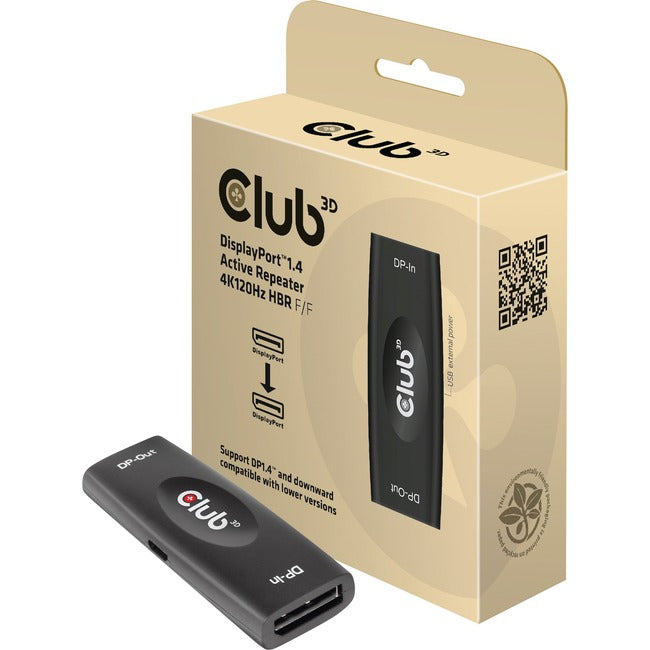

Package Contents:
- DisplayPort 1.4 Active Repeater 4K120Hz HBR3 F/F
- Micro USB to USB Type A Cable
Weight (Approximate): 0.60 oz
Specifications :
General Information
Manufacturer | Club 3D |
---|---|
Manufacturer Part Number | CAC-1007 |
Manufacturer Website Address | http://www.club-3d.nl |
Brand Name | Club 3D |
Product Model | CAC-1007 |
Product Name | DisplayPort 1.4 Active Repeater 4K120Hz HBR3 F/F |
Product Type | Signal Repeater |
UPC | 0841615101788 |
Weight (Approximate) | 0.60 oz |
---|
Package Contents |
|
---|---|
Environmentally Friendly | Yes |
