Dometic EnviroComfort ECD10K-HV AC Retrofit Kit - 10,000 BTU - 115V

EnviroComfort ECD10K-HV AC Retrofit Kit - 10,000 BTU - 115V

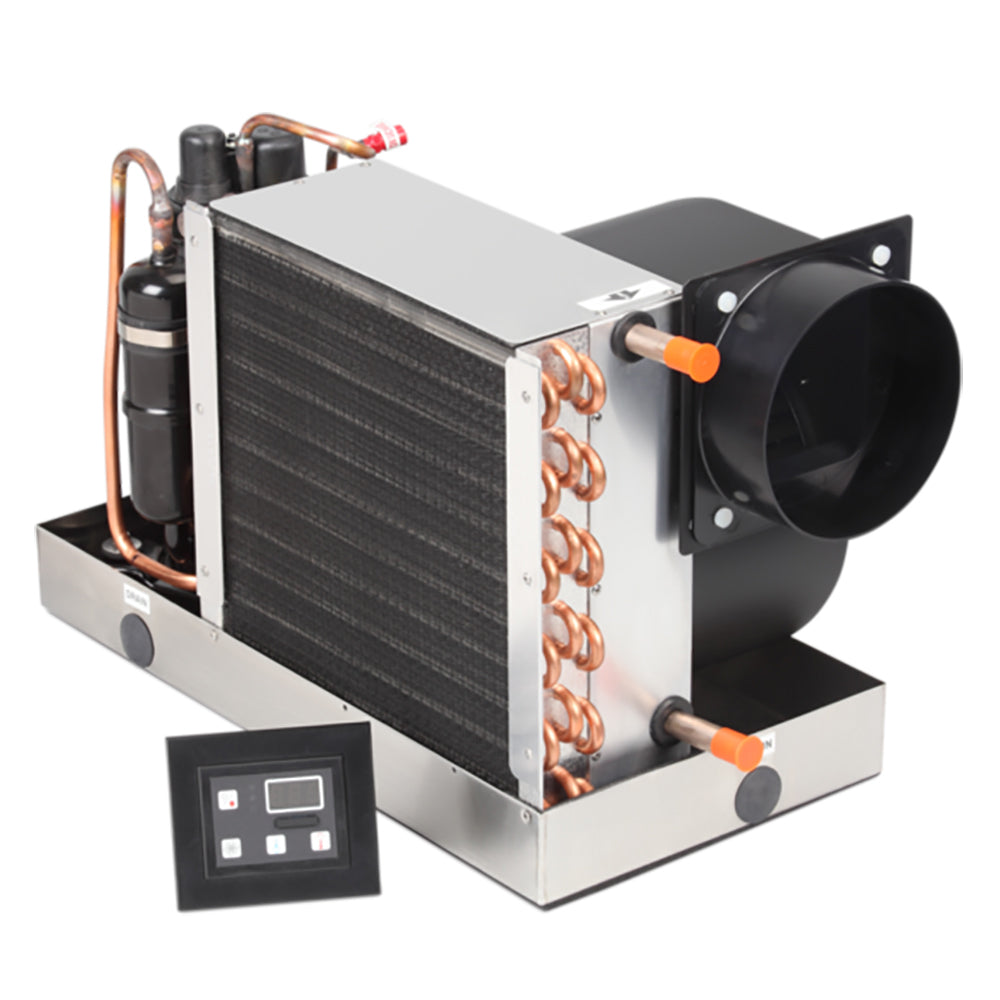

The Dometic Marine Air 10,000 BTU EnviroComfort Air Conditioning Retrofit Kit provides reverse-cycle cooling and heating capability so you stay comfortable onboard year-round.  This 10,000 BTU unit replaces an older self-contained air conditioner of comparable capacity in the 8,000 to 11,000 BTU range.

All units have high-velocity blowers with internal motors for a more compact installation footprint.  The blower can be rotated to a horizontal or vertical position for greater installation flexibility.  Units are built on an easy-to-plumb stainless-steel drain pan, and the pre-installed return-air filter is removable for cleaning.

ECD kits are ideal for replacing an existing air conditioning system or for a new air conditioning installation.  The Retrofit Kit includes the ECD self-contained air conditioning unit and digital control with bezel and is intended to replace an older self-contained air conditioner of comparable capacity.

Legacy Part Number - 207500310

Features:

• High-velocity, rotatable blower for horizontal or vertical installation
• Environmentally friendly R-410A refrigerant
• Easy to use Dometic Passport I/O digital control and display (P/N 9600005997)
• Plastic remote electrical box for convenience in mounting
• Stainless-steel drain pan
• Pre-installed return-air filter, easily removable and cleanable
• Small, compact, space-saving design

Specifications:

• Input voltage - 115 V
• Starting amps - 42 A
• Fuse Max. / Min. - 25 A/12 A
• Input frequency 50/60 Hz
• Refrigerant type - R410A
• Colling capacity - 10,000 BTU
• Min. supply duct size - 6"
• Seawater inlet connection - .625"
• Dimensions - Height 13.25" x Width 20" x Depth 9.63"

In the Box:

• Self-contained AC unit
• Digital control w/bezel and 15' cable
• Instruction manual

*Sold as an Individual
