Description

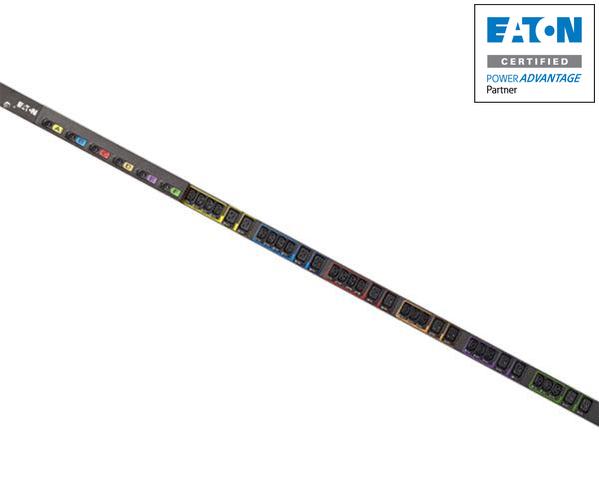

8.64kW, 1 x NEMA L21-30P In, 1 x NEMA 5-20R & 30 x IEC 60320 C13 Grip & 6 x IEC 60320 C19 Grip Out, 38U-A
Eaton EBA310-10. PDU types: Basic, Rack capacity: 38U-A, Mounting: Vertical. AC outlets quantity: 37 AC outlet(s), AC outlet types: C13 coupler, C19 coupler, NEMA 5–20R, Power plug: NEMA L21-30P. Cable length: 3 m, Certification: UL 60950. Nominal input voltage: 120-208 V, Maximum current: 24 A, AC input frequency: 50 - 60 Hz. Dimensions (WxDxH): 52.07 x 53.34 x 1689.1 mm
Designed for reliable and cost effective power distribution, Basic ePDUs have the form factor and receptacle choices to meet the needs of the demanding data center architect. With power levels ranging from 1.4 kW all the way to 17 kW, Eaton has the right Basic ePDU for any application. The new ePDU G3 Basic models feature Eaton’s patented IEC outlet grip plug retention, color-coded outlet sections, a low-profile form factor and a high operating temperature.
