Description
1.92kW, 1 x 5-20P & 1 x L5-20P In, 24 x 5-20R Out, 10/100 Ethernet, RS232, 38U-A

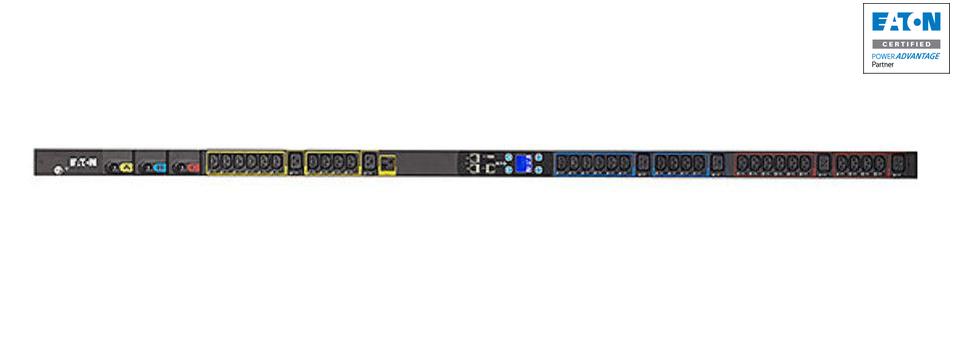

Eaton EMI101-10. PDU types: Monitored, Rack capacity: 38U-A, Mounting: Vertical. AC outlets quantity: 24 AC outlet(s), AC outlet types: NEMA 5–20R, Input connection type: 1 x 5-20P & 1 x L5-20P. Cable length: 3 m, Certification: UL60950-1. Nominal input voltage: 120 V, Maximum current: 16 A, AC input frequency: 50 - 60 Hz. Dimensions (WxDxH): 52.07 x 53.34 x 1689.1 mm
Eaton Metered Input ePDUs provide remote monitoring of the current draw of individual sections via network communication. This capability, combined with state-of-the-art software allows you to aggregate the information from many ePDUs in one location. A local display is also available for phase balancing and for easy start-up and provisioning of servers. New ePDU G3 Metered Input models feature best-in-class technologies, including ±1% billing grade accuracy, an advanced LCD pixel display, a hot-swap meter and the ability to daisy chain four ePDUs to share the same network connection and IP address.
