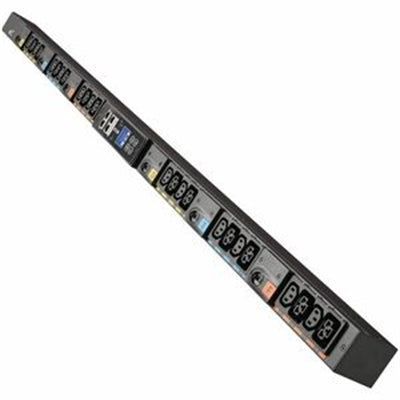

Eaton Universal-Input Managed PDU G4 — 24 Outlets, 23 kW Power Distribution
The Eaton Universal-Input Managed PDU G4 (EVMAGU23A-E) is a 0U vertical rack power distribution unit engineered for modern data centers requiring flexible, high-capacity power management. This managed PDU supports both 208V and 415/240V inputs through universal input architecture, making it ideal for single-phase or three-phase deployments across diverse infrastructure environments. With 24 outlets delivering up to 23 kW of managed power, this rack PDU provides the scalability and control needed for demanding IT operations.
Key Features
- 24 combo outlets: twelve C13 and twelve C39 connections for mixed equipment loads
- Universal input design supports 208V and 415/240V configurations
- 0U vertical form factor maximizes rack space efficiency
- 23 kW power capacity with flexible current support (16–55 A)
- Managed PDU capabilities for remote monitoring and outlet control
- End-entry 8-pin input connection for streamlined cable management
- Single-phase or three-phase deployment flexibility
- Input cable sold separately for custom configuration
Technical Specifications
| Specification |
Details |
| Manufacturer |
Eaton |
| Model Number |
EVMAGU23A-E |
| Product Type |
0U Vertical Managed PDU |
| Input Voltage |
208V / 415V–240V (Universal Input) |
| Output Outlets |
24 (12× C13 + 12× C39 Combo) |
| Maximum Power |
23 kW |
| Current Range |
16–55 A |
| Input Connection |
End-Entry 8-Pin |
| Deployment |
Single-Phase or Three-Phase |
| Form Factor |
0U Vertical Rack Mount |
| Cable |
Input Cable Sold Separately |
Frequently Asked Questions
What is a managed PDU and how does it benefit data centers?
A managed PDU provides remote monitoring, outlet-level control, and power metering capabilities, enabling IT teams to manage power distribution, reduce downtime, and optimize energy consumption across rack infrastructure. The Eaton Universal-Input Managed PDU G4 delivers these capabilities with flexible input voltage support.
Can this 0U vertical PDU support mixed single-phase and three-phase equipment?
Yes. The universal input architecture of this 0U vertical rack PDU supports both single-phase and three-phase deployments, providing flexibility for diverse equipment configurations and reducing the need for multiple PDU models in your data center.
What is the difference between C13 and C39 outlets on this managed PDU?
C13 outlets are standard connections for most IT equipment (servers, switches, UPS units), while C39 outlets support higher-power devices. The 24-outlet combo design (12 C13 + 12 C39) allows this rack power distribution unit to accommodate both standard and high-power equipment in a single unit.
Is the input cable included with the Eaton Universal-Input Managed PDU G4?
No, the input cable is sold separately. This allows you to select the appropriate cable for your specific facility power infrastructure (208V or 415/240V) and ensures compatibility with your existing power distribution setup.
