Elo 1790L 17" Open-Frame Lcd Touchscreen Monitor - 5:4 - 5 Ms E326347

Description :

Elo 1790L 17" Open-frame LCD Touchscreen Monitor - 5:4 - 5 ms

The Elo 1790L 17-inch open-frame LCD touch display features a slim design and narrow outside dimensions thanks to the state-of-the-art, energy-saving LED backlight, using less electricity to operate and generating less heat. This compact touch display is designed for touch with proven Elo expertise and reliability built in. The 1790L provides stable, drift-free operation with outstanding image clarity and light transmission-for accurate touch responses and vivid images. Instantly grabbing and holding users' attention, the 17-inch open frame is perfect for kiosks, casino and amusement, retail self-service, and industrial automation environments.

The touchscreen is sealed against dirt, dust and liquids, which simplifies integration into the final enclosure. Projected capacitive (PCAP) units can be sealed into a solution and obtain an IP65 rating on the front side of the unit. With the design and tooling being controlled by Elo, long-lasting product availability can be expected.

The 1790L is available with a choice of industry-leading touch technologies, in both single touch and multi touch versions. The seamless zero-bezel 17-inch multi-touch display is available with our latest multi-touch TouchPro™ PCAP two-glass solution (2GS) technology has a zero-bezel that delivers both a 10-touch tablet-like experience along with two-touch thru-glass functionality-both modes support single or dual latex gloves as well as cloth gloves. Standard bezel, single-touch display options include AccuTouch® five-wire resistive, IntelliTouch® SAW or SecureTouch® anti-vandal SAW.

The Elo open frame touchscreen display delivers the quality and reliability Elo is known for, and is backed by our three-year standard warranty. We design, build and are responsible for the complete solution with touch integrated from the start. Using our own touchscreens combined with our software and drivers, everything is designed to work together and is tested as part of our life testing processes. All of our products go through rigorous reliability testing (over 20 tests) to deliver 50,000 MTBF.

• Projected capacitive (PCAP) two glass solution (2GS) offers pristine optical clarity and touch durability that passes UL-60950 & IK-07 impact testing
• High quality energy-saving LED panel
• 10-touch TouchPro projected capacitive (PCAP) with two-touch thru-glass capabilities
• Display Port and VGA video interfaces

• 5-wire Resistive technology can be activated with virtually any object such as a stylus, gloved hand, pen and your fingers


• The SXGA touchscreen highlights SXGA display with the resolution of up to 1280 x 1024 pixels


• The 800:1 contrast ratio produces enhanced sharpness and shading accuracy in each picture


• LED backlight technology provides for industry-leading low power consumption and less hazardous materials


• The 250 Nit brightness gives an exceptionally visible display for clear and consistent on-screen pictures

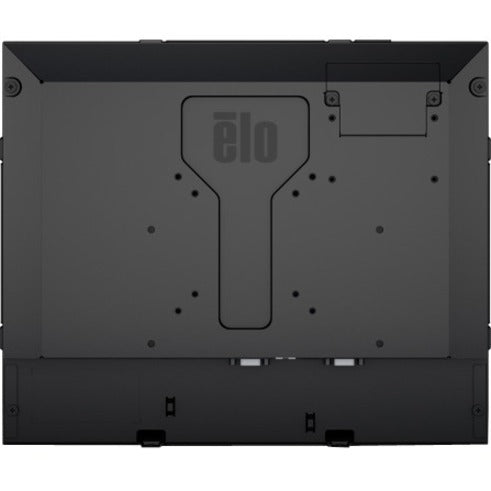

• VESA mount compatibility allows you to mount the touch screen on a wall or with a stand depending on your specific needs

Product Type: Open-frame LCD Touchscreen Monitor
Environmentally Friendly: Yes
Environmental Certification: WEEE
Vesa Mount Compatible: Yes
Product Color: Black
Brand Name: Elo
Manufacturer: Elo Touch Solutions, Inc
Product Model: 1790L
Product Name: 1790L 17" Open Frame Touchscreen (Rev B)
Manufacturer Part Number: E326347
Manufacturer Website Address: http://www.elotouch.com
Package Contents:

• 1790L 17" Open Frame Touchscreen (Rev B)
• HDMI cable
• VGA Cable
• RJ45 OSD Remote
• Touch USB Cable
• User Manual CD
• Quick Install Guide
• "L" (Side Mount) Brackets and w/Screws
• Japan Class-B info sheet
