Ethernet Lightning Protector Outdoor Ip66

Description :

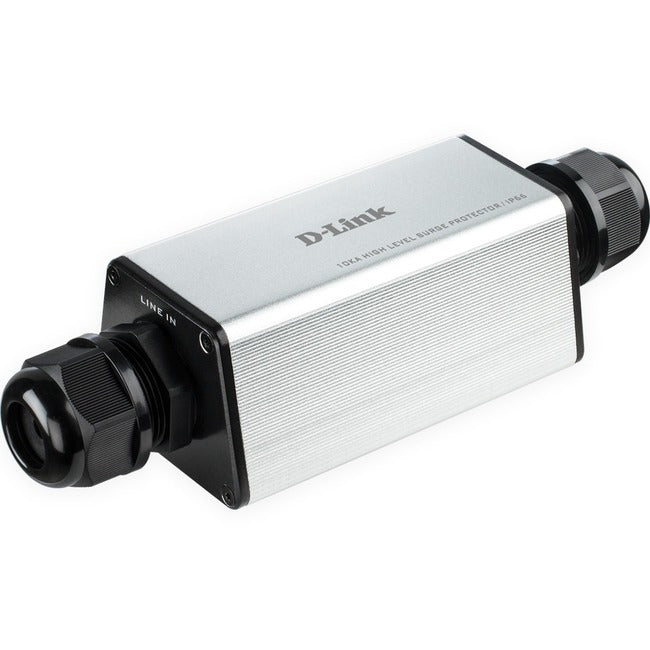

D-Link Gigabit Ethernet PoE+ RJ45 Outdoor 10kA Surge Protector

Any type of sudden electrical surge can damage electronic equipment beyond practical repair. The DPE-SP110 Outdoor PoE Ethernet Surge Protector helps protect your network equipment from damage caused by lightning or other static buildup. In the event of an electricity surge, the DPE-SP110 will cut off or divert all the excess electricity while continuing to let through the amount of power necessary for your equipment to work as normal. This surge protector is water-resistant, making it ideal for installation in outdoor environments.

High Surge Capability

The DPE-SP110 is built around a durable design featuring a higher surge capability and lower clamping voltage. The 10 kA impulse discharge current helps ensure reliable surge protection, while the lower clamping voltage means the unit will activate faster by triggering at a lower voltage threshold. The DPE-SP110 is also IEC 61643-21-compliant, meaning it automatically covers all other existing international standards such as the ITU-T K-Series and IEC 61000-4-5.

High Speed PoE Connectivity

The DPE-SP110 can function as a transmitter for a PoE switch to deliver power and data through an Ethernet cable. This device helps protect all 8 pins and is compatible with all types of RJ45 cables. The DPE-SP110 can handle data rates of up to 1000 Mbps, and is backwards compatible with older 10/100 Mbps ports, while also providing support for both PoE and PoE+ standards.

Greater Flexibility

The DPE-SP110 is a simple, cost-efficient, and easy-to-install solution for helping to protect your PoE equipment. The surge protector is connected in-line with the protected device, without interfering with the connection. The independent, standalone design is compatible with a wide variety of network equipment, including IP cameras, access points, Wi-Fi bridges, and switches. The DPE-SP110 is ideal for protecting devices without integrated surge protection, effectively increasing the lifespan of those devices and saving you the cost of expensive equipment replacements in the event of a power surge.

• 10 kA impulse discharge current


• Suitable for all PoE equipment and Ethernet devices


• IP66-rated water and dust-resistant casing


• 10/100/1000 Mbps connection up to 100 meters


• PoE Passthrough


• Surge Compliance


• IEC 61643-21


• IEC 61000-4-5

Product Type: Surge Suppressor/Protector
Environmentally Friendly: Yes
Environmental Certification: RoHS-6
Brand Name: D-Link
Manufacturer: D-Link Systems, Inc
Product Model: DPE-SP110
Product Name: Gigabit Ethernet PoE+ RJ45 Outdoor 10kA Surge Protector
Package Type: Retail
Manufacturer Part Number: DPE-SP110
Manufacturer Website Address: http://www.dlink.com
Limited Warranty: 2 Year
Weight (Approximate): 7.76 oz
