Fast Ethernet Media Converter-10/100/1000-Mbps Copper To 100-Mbps Singlemode Fib

Description :

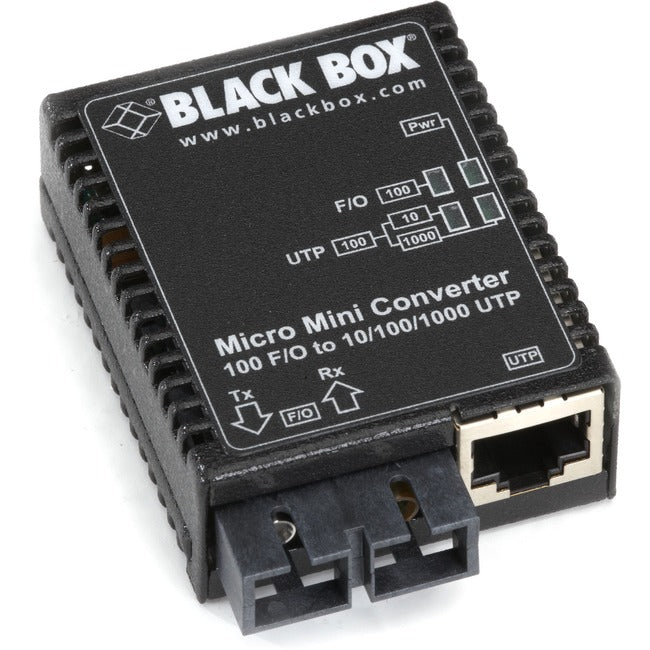

Black Box Micro Mini LMC404A Transceiver/Media Converter

The Micro Mini Media Converter is ideal for bringing fiber to the desktop and for mobile applications where light weight, compact size, and low power requirements are critical.

Weighing only 2.5 ounces and about the length of a house key, this ultra-compact media converter is portable yet powerful. For extra versatility, it can be USB-powered, making it easy to provide fiber connectivity to locations where AC or DC power is unavailable, for instance, field-deployed fiber-to-the-laptop. For easy portability, this tiny converter conveniently slips into a pocket or laptop carrying case.

The converter is plug-and-play with an RJ-45 port that autonegotiates for speed, duplex mode, and crossover functions for PCs with 10BASE-T, 100BASE-TX, and 1000BASE-T Ethernet. On the fiber side, the converter has an SC connector for connection to single-mode fiber.

Because it can be powered through a computer's USB 1.0 or 2.0 port, the Micro Mini Media Converter is ideal for connections to fiber in areas where a spare power outlet may not be available. When plugged into a computer's USB port, the media converter shuts down automatically when you turn off the computer, which saves energy.

• LED indicators for power, UTP, and fiber status.


• UTP port supports 10/100/1000BASE-T.


• Plug-and-play capability with autonegotiation.


• SFP port supports 100BASE-FX using 155-Mbps SFP transceivers.


• USB-powered for portability, or use it with the included power adapter.


• Supports distances of up to 5 kilometers over multimode fiber.


• Ultra compact, weighing only 2.5 ounces.


• Tucks unobtrusively behind a PC.


• Bring fiber to the desktop conveniently and cost-effectively.

Product Type: Transceiver/Media Converter
Environmentally Friendly: Yes
Environmental Certification: WEEE
Taa Compliant: Yes
Country Of Origin: United States
Brand Name: Black Box
Form Factor: Wall Mountable
Manufacturer: Black Box Corporation
Product Model: LMC404A
Product Name: Micro Mini LMC404A Transceiver/Media Converter
Product Line: Micro Mini
Manufacturer Part Number: LMC404A
Manufacturer Website Address: http://www.blackbox.com
Package Contents:

• Micro Mini LMC404A Transceiver/Media Converter
• Power Adapter
