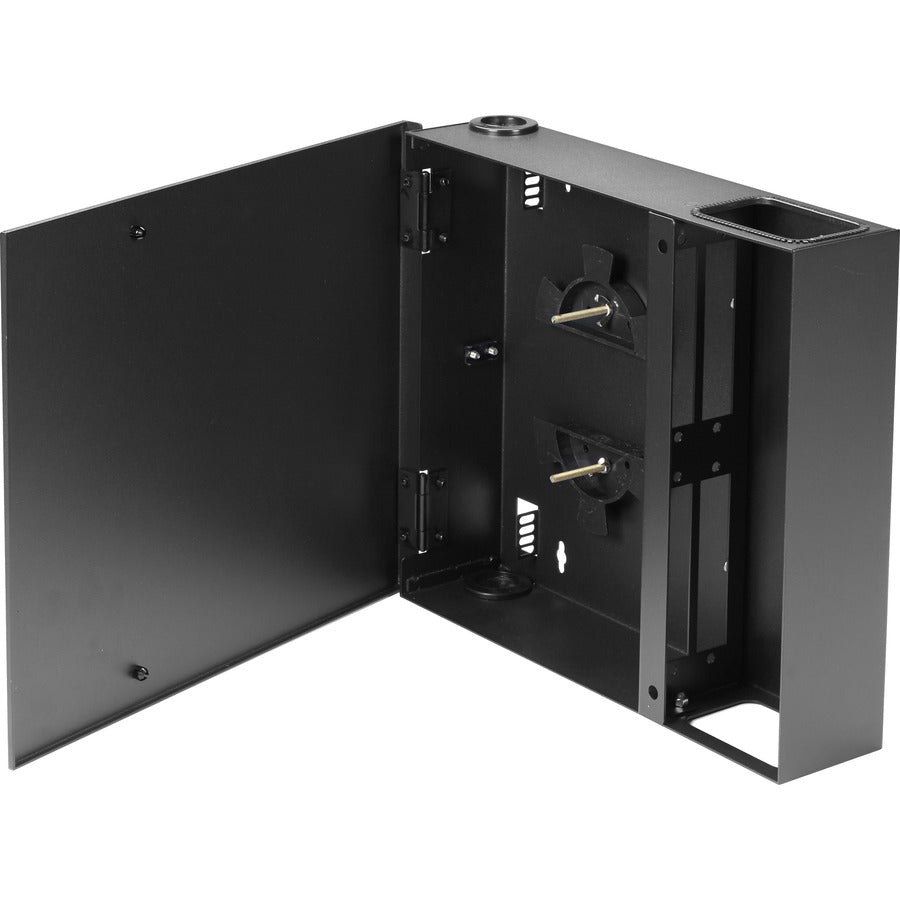

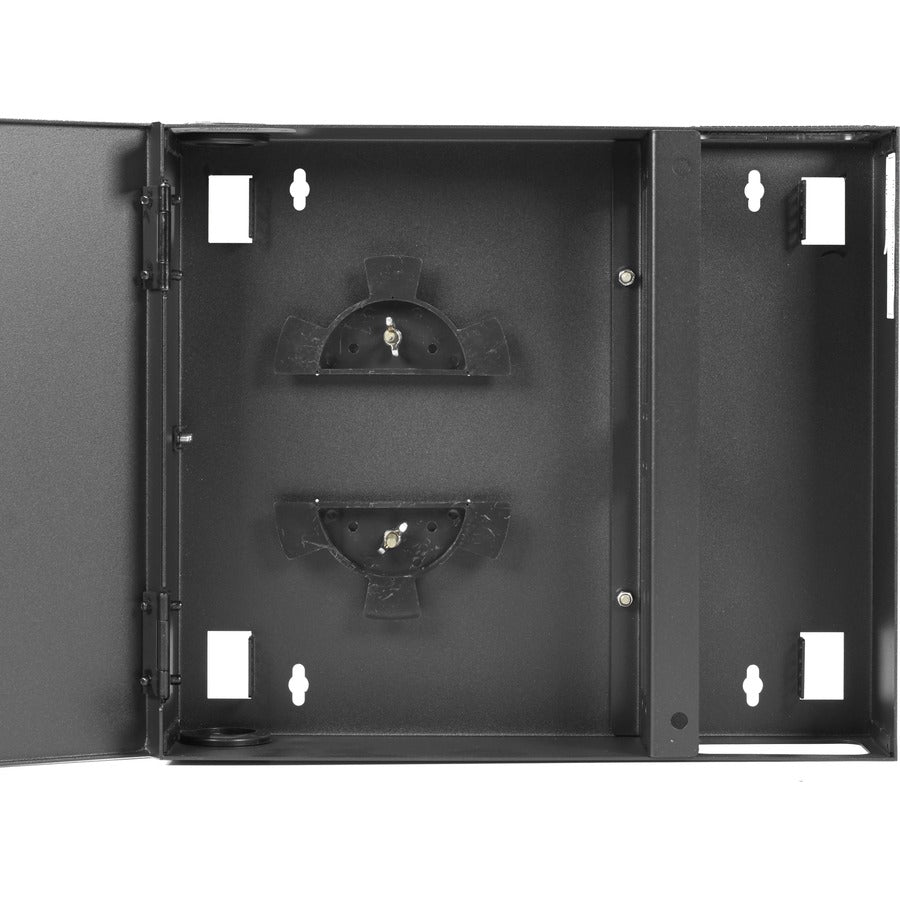

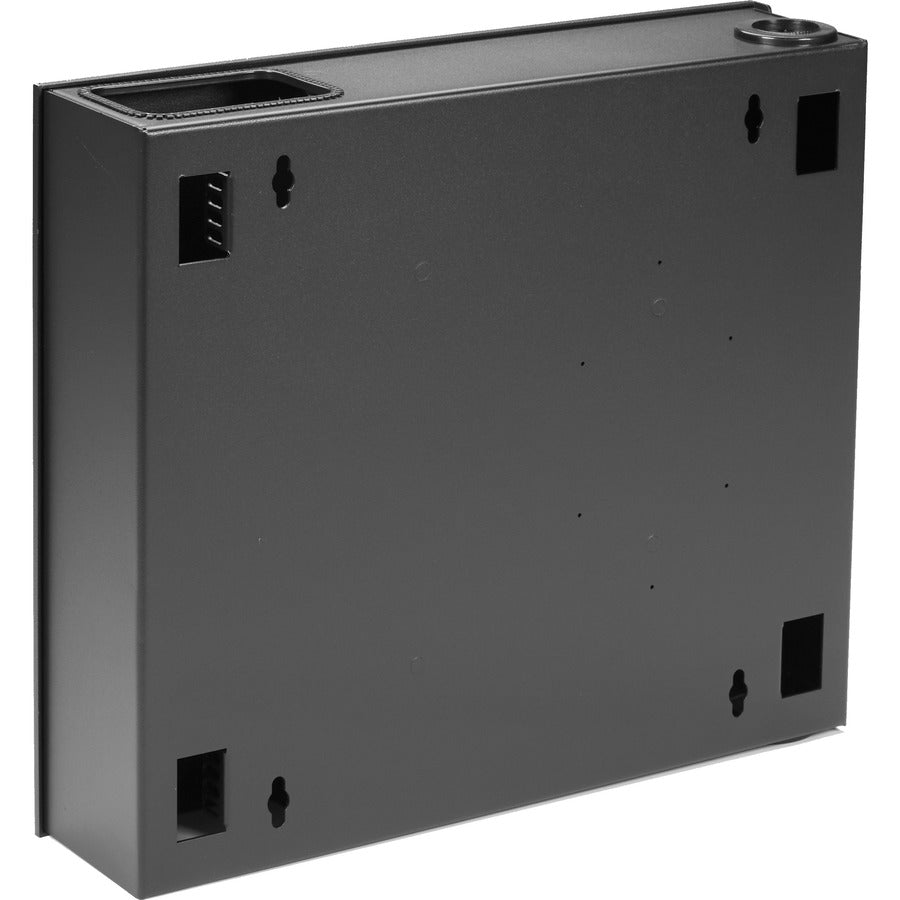

Black Box Fiber Optic Enclosure
Whether you're adding a mid-sized fiber workgroup, or installing or organizing a larger fiber network, Black Box has the equipment you need. Choose from open or locked Fiber Wall Cabinets, loaded Rackmount Fiber Panels, or the Rackmount Fiber Shelf. Handy adapter panels feature ST®, SC, or LC connectors for installing in the Rackmount Cabinets or Fiber Panels.
Select from two open Fiber Wall Cabinet models. They accept two or four adapter panels. Or choose lock-style cabinets. They hold four or twelve adapter panels.
Order a loaded fiber panel with simplex ST connectors, duplex SC, or duplex LC connectors. Each panel fits in 1U of rack space and can be mounted in 19" and 23" racks.
Or select the Rackmount Fiber Shelf. It accepts 3, 6, or 12 fiber adapter panels, which can support a varied number of fiber connectors depending upon the fiber adapter in the Rackmount Fiber Shelf.
The cabinets, panels, and shelf are constructed of highquality, 16-gauge cold-rolled steel (CRS) and are finished with a black electrostatically applied powder coat.
Our High-Density (HD) Adapter Panels are equipped with a variety of adapter connector types and snap easily into Fiber Wall Cabinets. We offer ST, SC, ST to SC, or LC connectors.
The adapters work with both multimode fiber and nonangle polish single-mode fiber, and they're constructed with high-retention ceramic alignment sleeves.
- 18-port shelf accepts three adapter panels.
- Adapter panels (ordered separately) provide ST, SC, MT-RJ, or LC connectors. Mix and match panels to suit your application.
- Choose from open or lock-style cabinets, or fiber panels or a shelf.
- Mount on a wall or in a rack.
Product Type: Fiber Optic Enclosure
Product Material: Steel
Brand Name: Black Box
Compatibility:
- Standard Adapter Panels
- HD Adapter Panels
- Splice Tray
Form Factor: Wall Mountable
Manufacturer: Black Box Corporation
Product Name: Fiber Optic Enclosure
Application/Usage: Fiber Optic
Manufacturer Part Number: JPM401A-R2
Manufacturer Website Address: http://www.blackbox.com
Packaged Quantity: 1
Limited Warranty: Lifetime
Weight (Approximate): 9.50 lb
