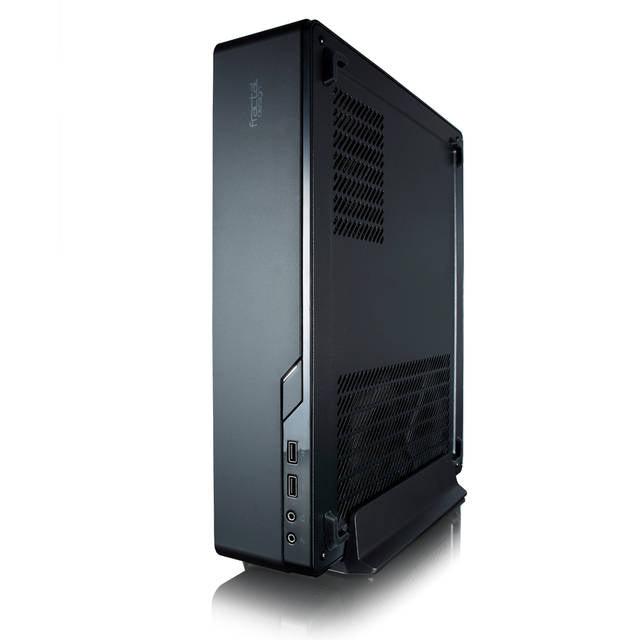

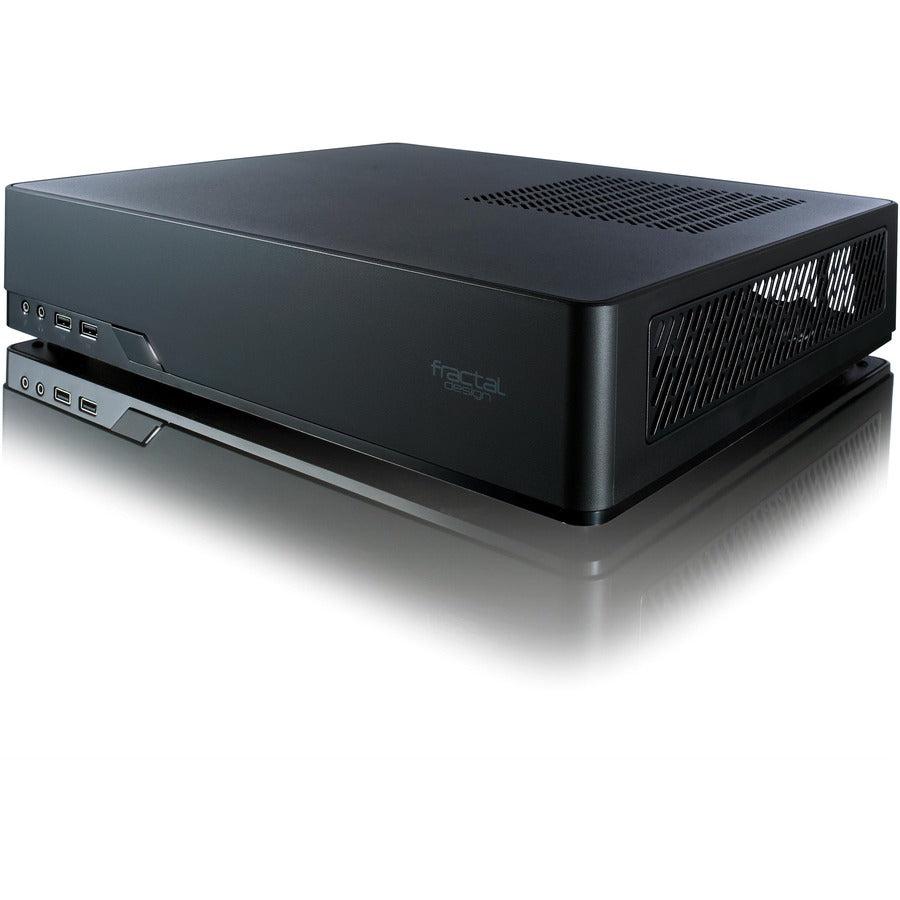

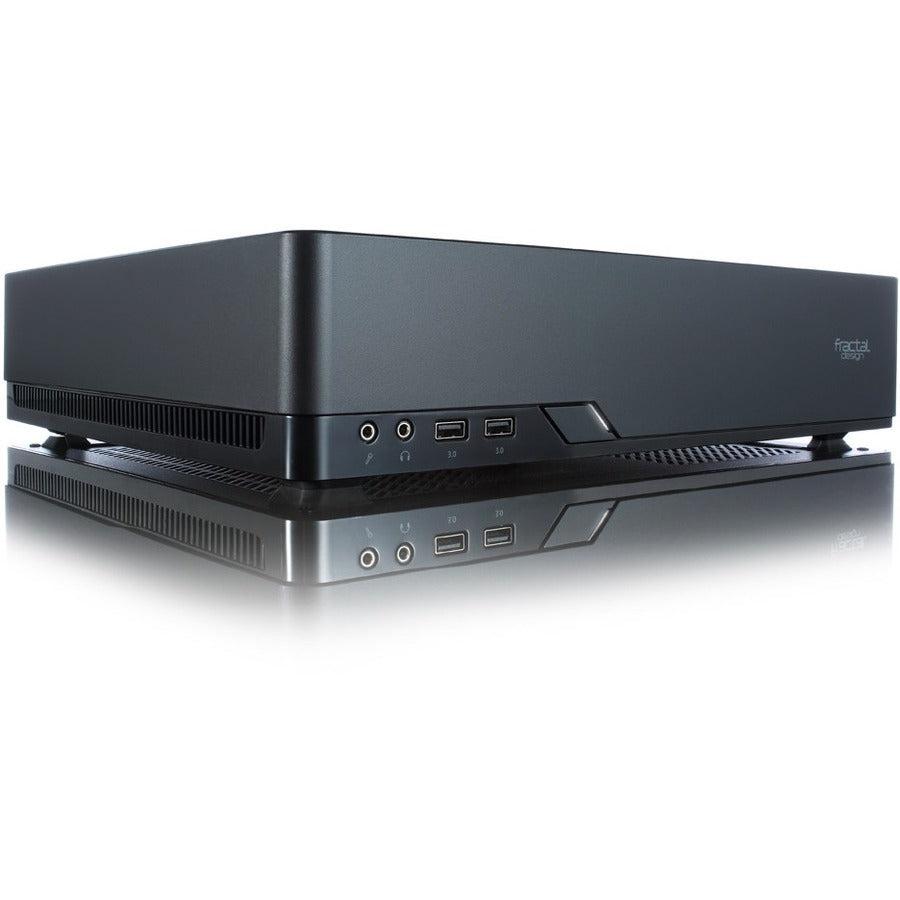

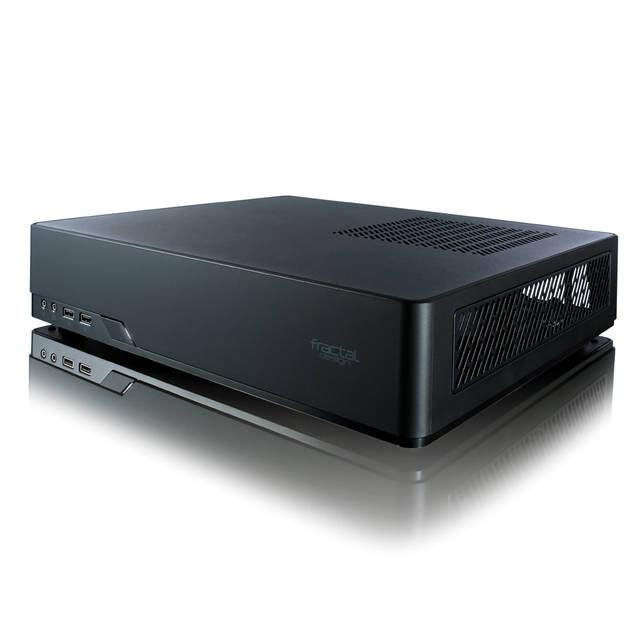

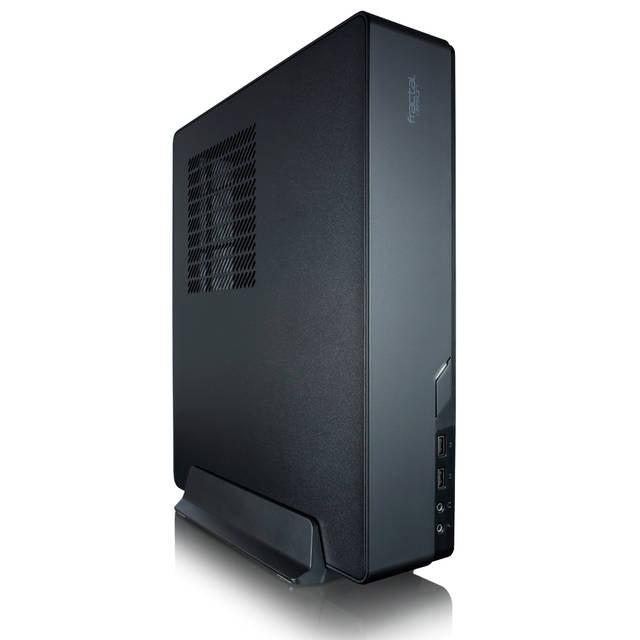

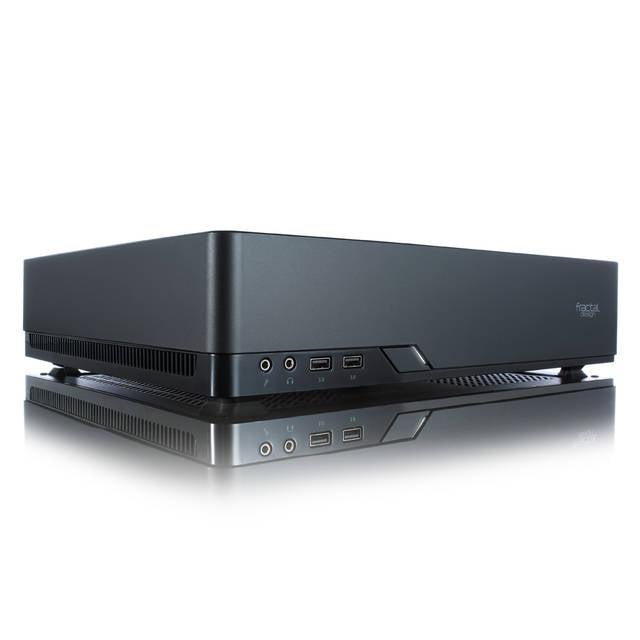

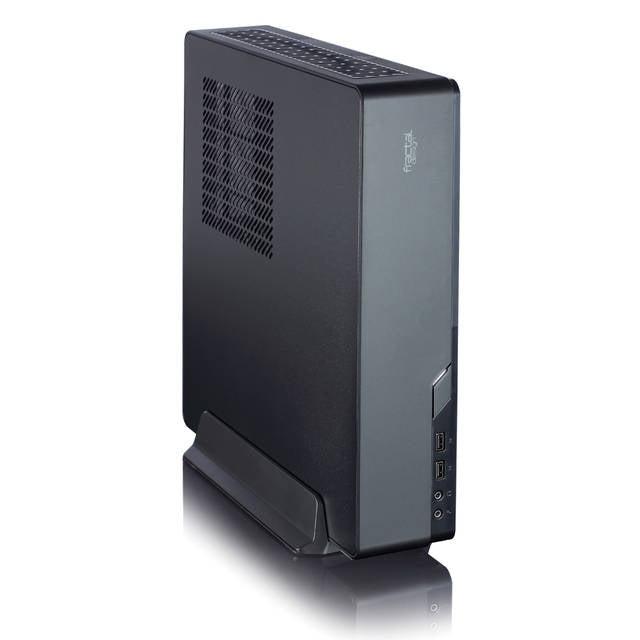

Name: Fractal Design Node 202 + Integra Sfx 450W Psu Mini-Itx Case (Black)
Brand: Fractal Design
SKU: FD-MCA-NODE-202-AA-US
Price: 201.27 USD
Availability: OutOfStock

Fractal Design Node 202 + Integra Sfx 450W Psu Mini-Itx Case (Black)

Roll over image to zoom in Click on image to zoom

Buying in volume? Bulk discounts and deal registrations are available. Contact us or email [email protected].

Mfr Part Number: FD-MCA-NODE-202-AA-US
Features:
- Featuring a sleek and elegant design that will fit in any space or room
- Extremely small footprint with a volume of only 10.2 liters
- A highly versatile case that can be set up both vertically and horizontally
- Supports Mini-ITX motherboards, SFX power supplies and graphics cards up to 310mm in length
- Provides a smart thermal interior design highlighting separate motherboard and graphics card chambers
- Strategically placed air filters for a dust free interior
- Includes a Fractal Design Integra SFX 450W power supply with specialized cables for the Node 202 case, providing the right connectors with precise cable lengths
- Quiet and efficient operation at 80PLUS Bronze efficiency with a 3 year warranty
- 3 dust filters included (for CPU, GPU and PSU)
Case Type: Mini-ITX Case
Color: Black
M/B Type: Mini-ITX
Drive Bays: 2
- Internal Bay: 2x 2.5"
Expansion Slots: 2
Side Windows: No
Front I/O Panel: 2x USB 3.0 Ports, Audio In & Out, Power button with LED (white)
Maximum Compatibility:
- VGA Card Length: 310.0 x 145.0 x 47.0 mm
- CPU Cooler Height: 56 mm
Case Volume: 10.2 litres
Case Dimensions (WxDxH):
- Horizontal: 377.0 x 330.0 x 82.0 mm
- Horizontal: 377.0 x 332.0 x 88.0 mm (w/ feet, protrusions, screws)
- Vertical: 125.0 x 332.0 x 385.0 mm (w/ feet, protrusions, screws)
Case Weight: 3.5 kg
Power Supply:
- Features:
  - 80PLUS Bronze certification
  - Maximum operating temperature at full load: 50C (50C @ 100%)
  - Fully Intel Haswell C6/C7 compliant
  - Taiwanese capacitors
  - OPP / OVP / UVP / SCP / OCP Protection
  - Can be placed both vertical and horizontal position
  - SFX 3.3 PSU specification compliance
  - ErP 2013 compliant (<0.5W system power draw)
- Total Power: 450 W
- Output: +3.3V @ 21A; +5V @ 22A; +12V1 @ 18A; +12V2 @ 18A; -12V @ 0.5A; +5VSB @ 2.5A
- Connectors: 1x 20+4pin Main Power Connector; 1x 4+4Pin ATX 12V Power Connector, 2x 6+2pin PCI-Express Connectors, 2x SATA Connectors
- Cooling System: 80mm Temperature Controlled Fan
- MTBF: 100,000 Hours
- Color: Black
- Dimension (WxDxH): 125.0 x 100.0 x 64.0 mm
- Weight: 1.0 kg
Package Contents:
- Node 202 compupter case
- Integra SFX 450W power supply
- Accessory box
- User manual
- Vertical stand
- Riser card for graphics card

General Information

Manufacturer	Fractal Design
Manufacturer Part Number	FD-MCA-NODE-202-AA-US
Manufacturer Website Address	http://www.fractal-design.com
Brand Name	Fractal Design
Product Line	Node
Product Model	202
Product Name	Node 202 Computer Case
Product Type	Computer Case
UPC	817301014014

Total Number of USB Ports	2

Product Color	Black
Height	3.5"
Width	14.8"
Depth	13.1"
Weight (Approximate)	7.72 lb

Miscellaneous

Package Contents	Node 202 Computer Case 3 x Dust Filters Accessory Box User Manual Vertical Stand Riser Card for Graphics Card
