Geist Monitored Unit Level MN05MGW1-30CF18-6PS15B0A10-S-A - Power distribution unit - AC 208 V - 17.2 kW - 3-phase delta - Ethernet 10/100/1000, USB, RS-232 - input: IEC 60309 3P+E - output connectors: 30 (IEC 60320 C13/C19) - 0U - black powder coat - TAA Compliant
-
Efficient power management
The power distribution unit is designed to facilitate effective power delivery across devices, minimizing downtime and ensuring stable operation in critical settings.
-
Robust circuit protection
Equipped with six 20A double pole magnetic breakers, the device safeguards connected equipment by preventing overloads and electrical faults.
-
Comprehensive remote management
Supports numerous protocols such as NTP, DHCP, and JSON, allowing users to manage their power distribution setup conveniently from any location.
-
User-friendly interface
Features easy-to-navigate LED displays and includes IP reset and hard reboot buttons for streamlined operation during troubleshooting.
-
Multi-functional design
With various input and output connectors and compliance with essential safety standards, the unit serves a wide array of applications effectively.

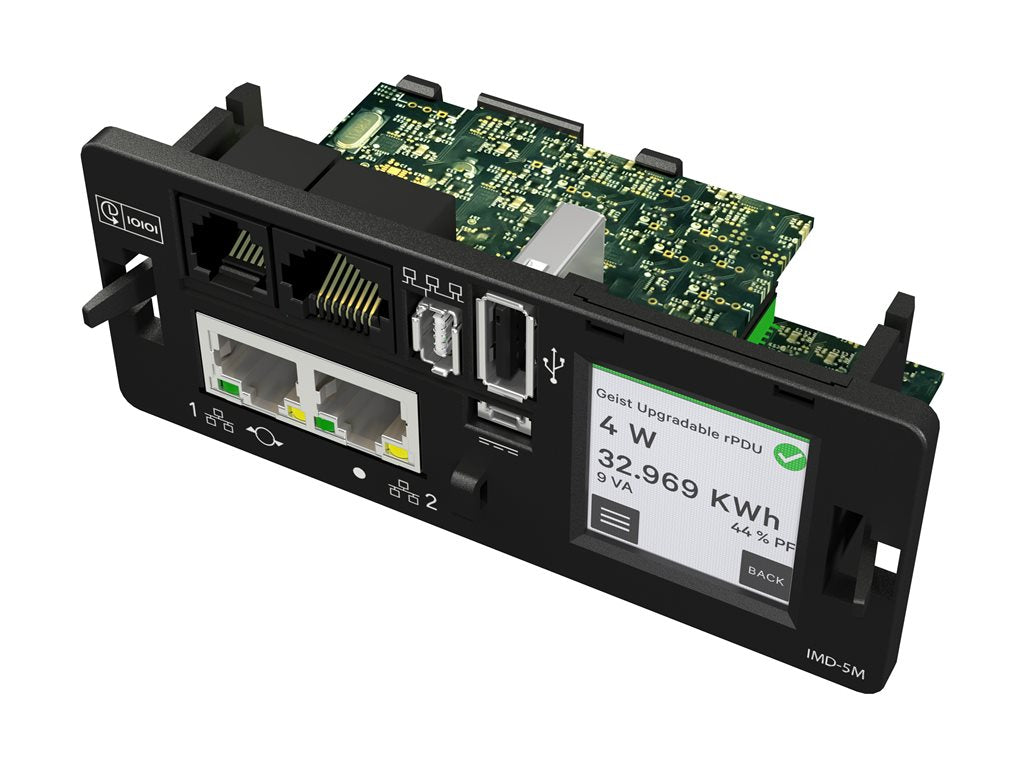

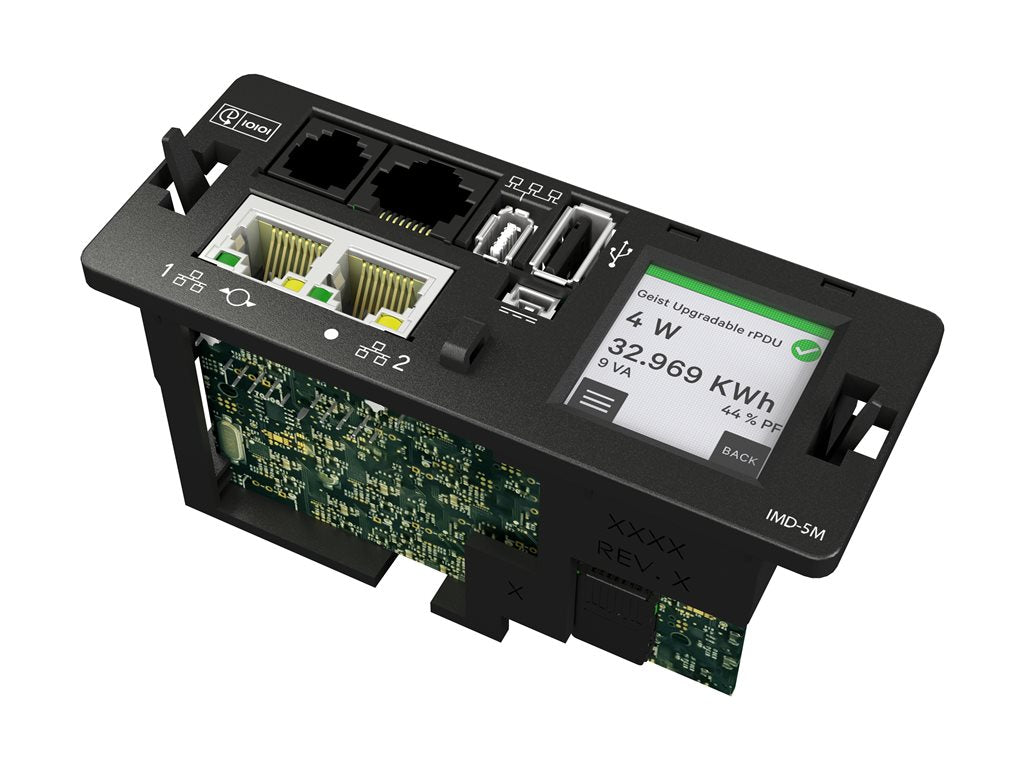

The Vertiv Geist Monitored RPDU VP4N60AE is a 60A, 208V DELTA, 3-phase, upgradeable rack power distribution unit with input power monitoring. It has 30 Combination C13/C19 outlets and a 3P+E (IP44) plug providing 17.2kW of power capacity. The Combination C13/C19 Outlets accommodate C14 and C20 plugs interchangeably. The high retention outlets reduce the risk of downtime from accidental disconnections and are also P-Lock compatible. This unit offers remote power monitoring and environmental sensors to remotely manage the rPDU through any web browser or serial communication. It is integrated with the Vertiv Geist Next-Generation IMD which displays power data via its 128x128 high-visibility LCD. It has an internal sensor that intelligently adjusts the orientation based on horizontal or vertical installation. This includes a redundant power-sharing port that connects two IMDs in the rack and provides backup power in case of power loss. Enhanced security with a secure boot is added to the device to help ensure data and operations are protected. The units are UL-listed, TAA-compliant, RoHS certified, and individually tested for functionality and reliability.
- The Monitored RPDU provides access to power usage data so you can see trends and maximize uptime

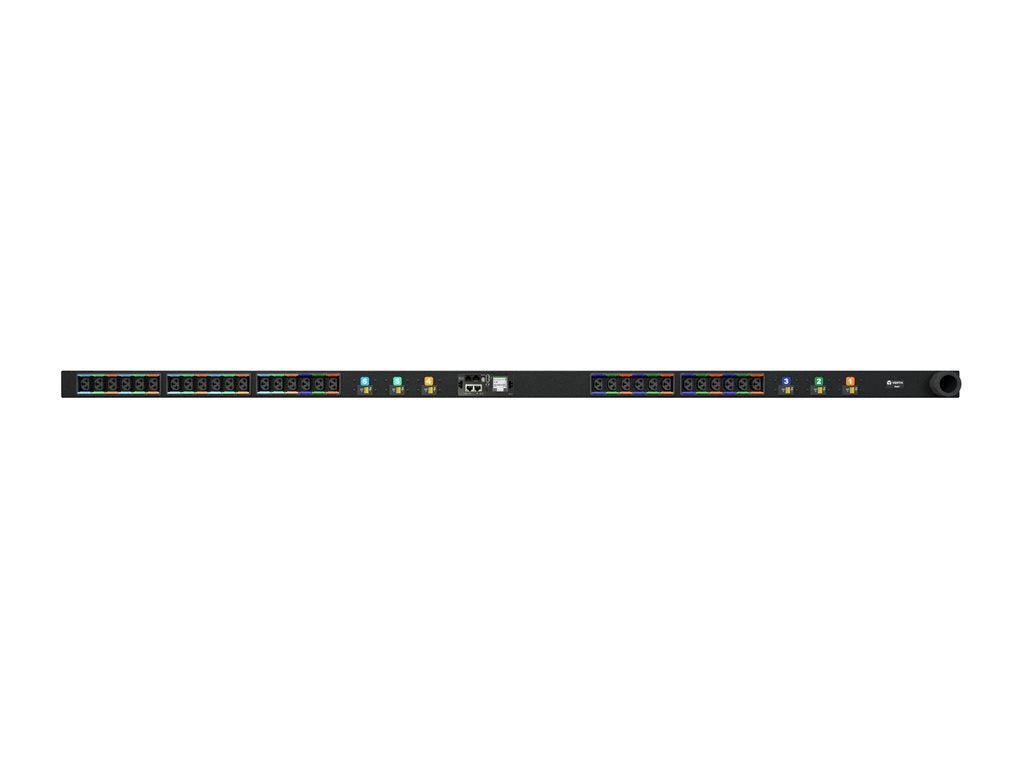

- VP4N60AE is a vertical rack mount PDU with 30 Combination C13/C19 outlets and a 3P+E (IP44) plug
- Vertiv Geist Next-Generation IMD has a 128x128 high-contrast LCD for monitoring data
- Helps ensure that data and operations are protected with the enhanced security features
- Vertiv Geist rPDUs are individually tested, UL-Listed, TAA-Compliant, and RoHS certified
