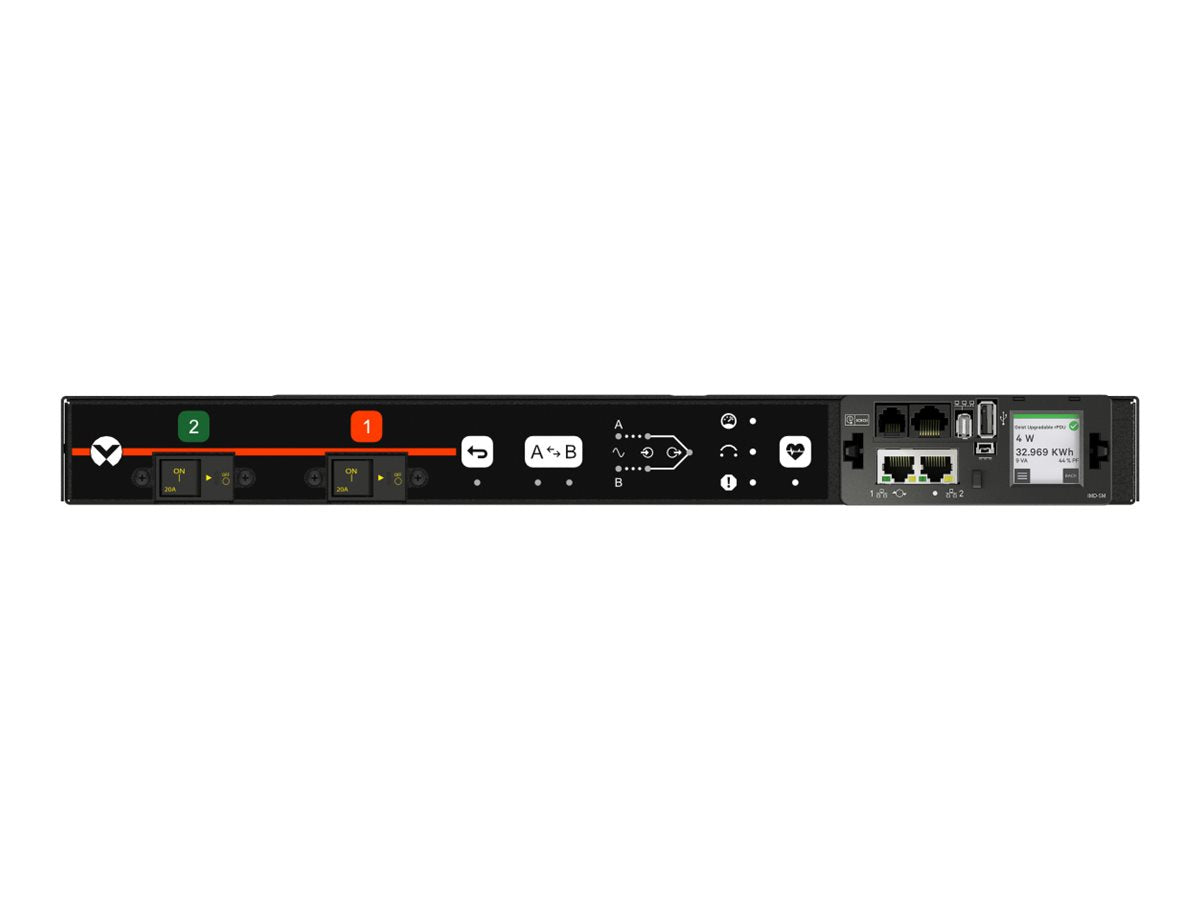

Geist Rack Transfer Switch Monitored Outlet Level ANR5M1R6-06CF18-3TL6TL6A011-D - Power distribution unit (rack-mountable) - AC 200-240 V - 4.9 kW - Ethernet 10/100/1000, RS-232, USB - input: NEMA L6-30P - output connectors: 6 (IEC 60320 C13/C19) - 1U - 19 - 10 ft cord - black powder coat"
-
Efficient power distribution
The power distribution unit operates at AC 208 V and offers a power capacity of 4.9 kW. It includes 6 output connectors of type IEC 60320 C13/C19 to accommodate various devices, ensuring consistent and reliable power for all connected equipment.
-
Comprehensive remote management
This unit supports multiple remote management protocols such as SNMP, HTTP, and SSH, enabling users to monitor and control power distribution from a distance. The availability of various interfaces allows integration with existing network systems for efficient management.
-
Advanced safety features
The unit includes overcurrent protection mechanisms and is equipped with a hard reboot button to quickly address power issues. LED indicators provide real-time feedback on power status, ensuring safe operation in critical environments.
-
User-friendly interface
The touch screen LCD display allows for easy navigation and monitoring of power usage. It is designed with front and rear panel LED overlays to enhance visibility in low-light environments, simplifying the management process.
The Vertiv Geist Rack Transfer Switch Monitored Outlet Level is designed to provide reliable power distribution in a rack-mounted format. This power distribution unit features a compact design with a height of just 1 rack unit and is suitable for racks measuring 19 inches. With the capability to support depths from 24 to 37 inches, it can easily fit into various rack configurations. It delivers power at 208 V with a maximum current of 30 A, ensuring efficient operation for connected devices.
Equipped with a range of monitoring and management protocols including SNMP, HTTP, and SSH, this unit allows for comprehensive remote management. It is built with safety features such as overcurrent protection and IP reset functionality, ensuring a secure environment for sensitive equipment. LED indicators and a touch screen LCD display provide clear visibility into power status, while the daisy chain functionality makes networking simple.
- Compact rack-mountable design at 1 U height
- Supports depths of 4-post racks from 24 to 37 inches
- Provides 208 V power with maximum current of 30 A
- Equipped with multiple remote management protocols for effective monitoring
- Features overcurrent protection and LED indicators for safety
