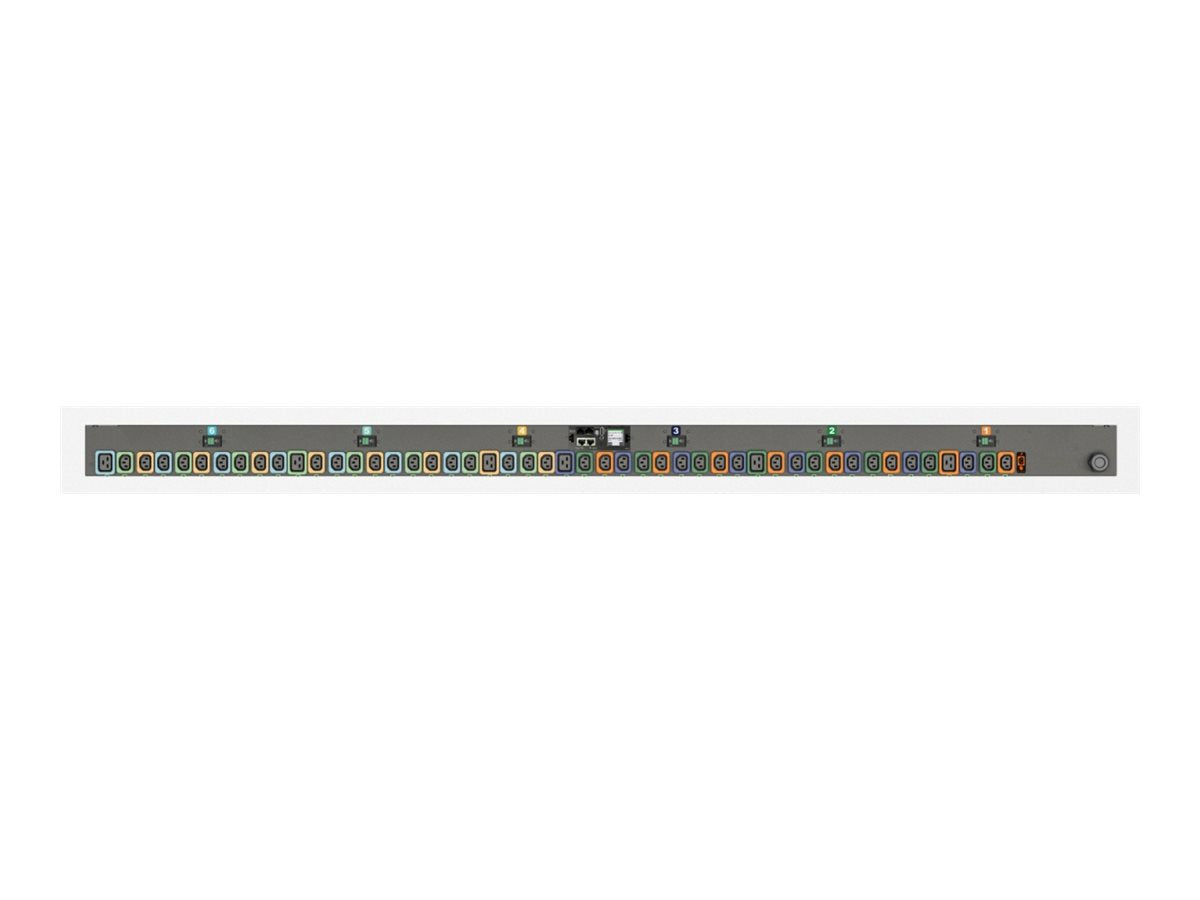

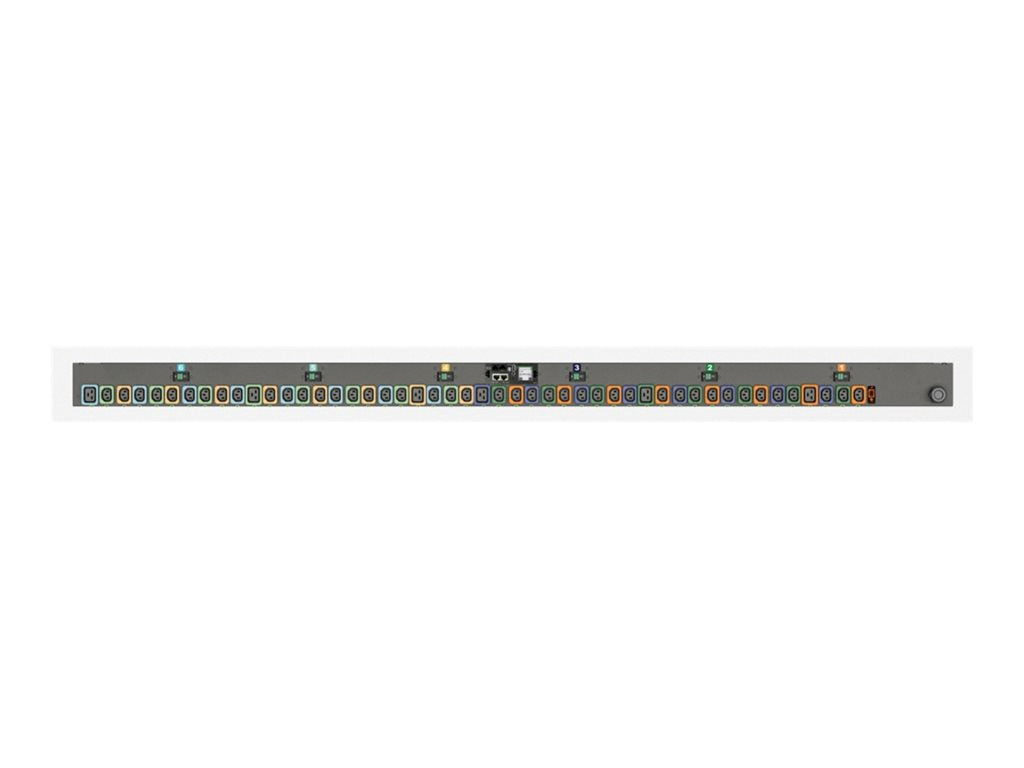

Geist Switched Unit Level Monitoring MNS5MHW1-48MI13-3TL56A0A10-S-A - Power distribution unit (rack-mountable) - AC 240/415 V - 17.2 kW - 3-phase WYE - Ethernet 10/100/1000, USB, RS-232 - input: NEMA L22-30P - output connectors: 48 (42 x IEC 60320 C13, 6 x IEC 60320 C19) - 0U - 10 ft cord - black powder coat - TAA Compliant
-
Efficient Power Distribution
This power distribution unit provides power output of 17.2 kW through 48 connectors which include 6 power IEC 60320 C19 and 42 power IEC 60320 C13 types, allowing for a wide range of devices to be powered effectively.
-
Robust Safety Mechanisms
Incorporating features like circuit breakers and overcurrent protection, this unit ensures that electrical faults are mitigated, promoting a safer operational environment.
-
Flexible Remote Management
With support for multiple remote management protocols including SNMP, HTTP, and SSH, users can easily monitor and control power distribution from various networked locations.
-
Space-Efficient Design
The vertical orientation of this unit is specifically designed to maximize space in racks, optimizing the layout of server rooms or data centers.
-
Easy Installation Features
This product comes with a rack mounting kit included, providing straightforward installation and integration within existing server setups.
The Vertiv Geist Switched Unit Level Monitoring is designed for efficient power distribution with management capabilities. This power distribution unit ensures reliable performance even in environments with a maximum operating temperature of 60°C. Its modular design allows for flexibility in configuration to meet specific operational needs, supporting a variety of remote management protocols including SNMP, HTTPS, and SSH, facilitating seamless monitoring and control over networked devices. With 48 output connectors and a total power output of 17.2 kW, this unit supports powerful electronic setups. The built-in LED display provides real-time monitoring, while overcurrent protection and circuit breakers enhance safety by preventing electrical faults. The vertical orientation saves valuable space in the server room, ensuring effective use of available resources.
- Designed for efficient power distribution with management features
- Supports up to 48 output connectors for versatile devices
- Built-in LED display for real-time monitoring
- Includes overcurrent protection and circuit breaker for enhanced safety
- Vertical orientation maximizes space efficiency
