Description
- Support for Ryzen 5000 Series with BIOS UPDATE
- Supports AMD Ryzen 5000 Series / 3rd Gen Ryzen/2nd Gen Ryzen / 3rd Gen Ryzen with Radeon Graphics/2nd Gen Ryzen with Radeon Vega Graphics/1st Gen Ryzen with Radeon Vega Graphics Processors
- Dual Channel ECC / Non-ECC Unbuffered DDR4, 2 DIMMs
- Direct 8 Phases IR Digital VRM Solution with PowIRstage
- Advanced Thermal Design with Extended & Multi-Layered Heatsink
- Dual Ultra-Fast NVMe PCIe 4.0/3.0 x4 M.2
- Intel Wi-Fi 6 802.11 ax & BT 5 with AORUS Antenna
- ALC1220-VB Enhance 114dB (Rear) / 110dB (Front) SNR in Microphone with Nichicon Audio Capacitors
- Intel Gigabit LAN
- RGB FUSION 2.0 with Multi-Zone Addressable LED Light Show Design
- Smart Fan 5 - Hybrid Fan Headers with FAN STOP
- Rear USB 3.2 Gen 2 Type-C
- Integrated I/O Shield
- Q-Flash Plus Update BIOS Without Installing CPU, Memory, GPU

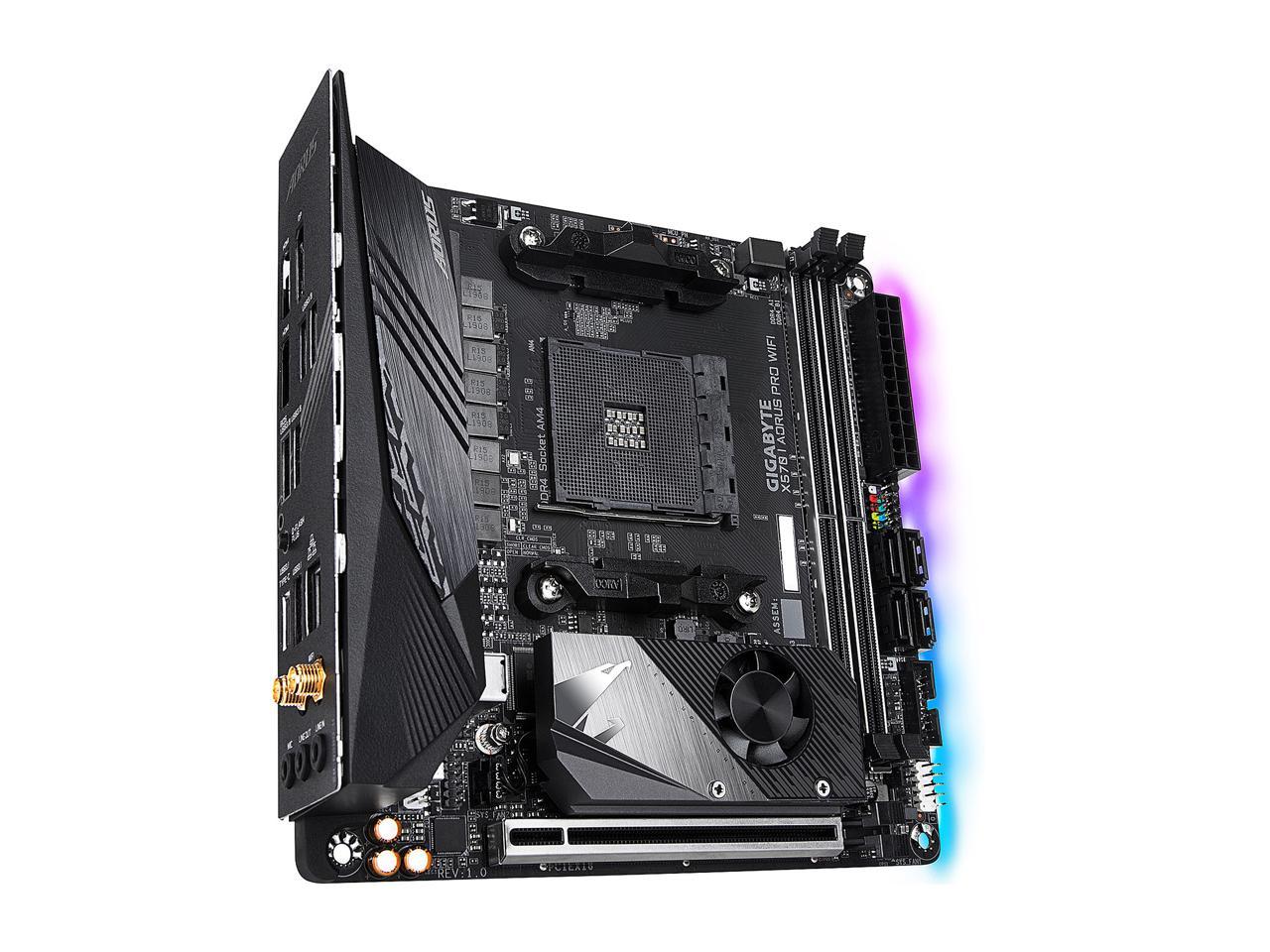

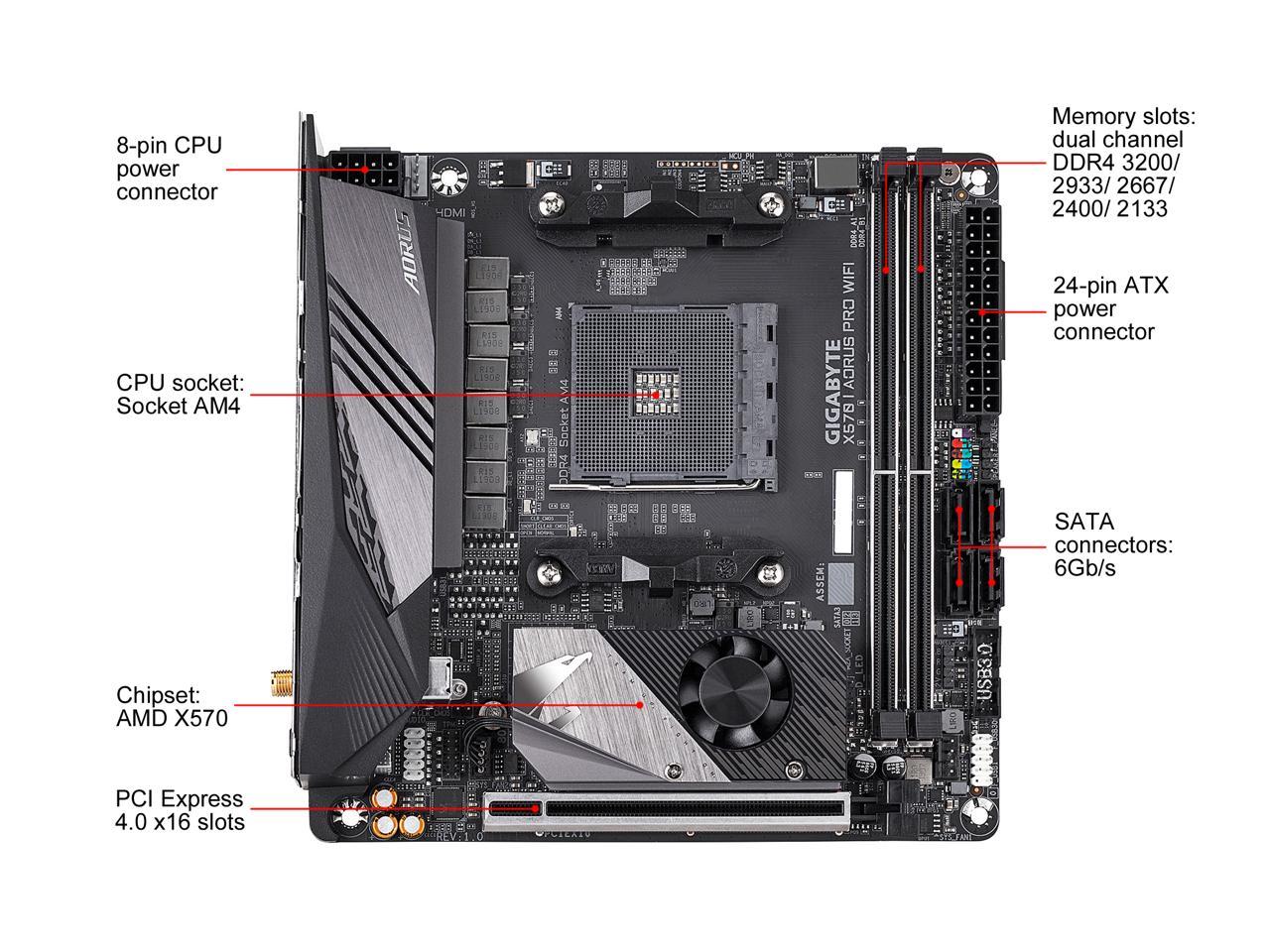

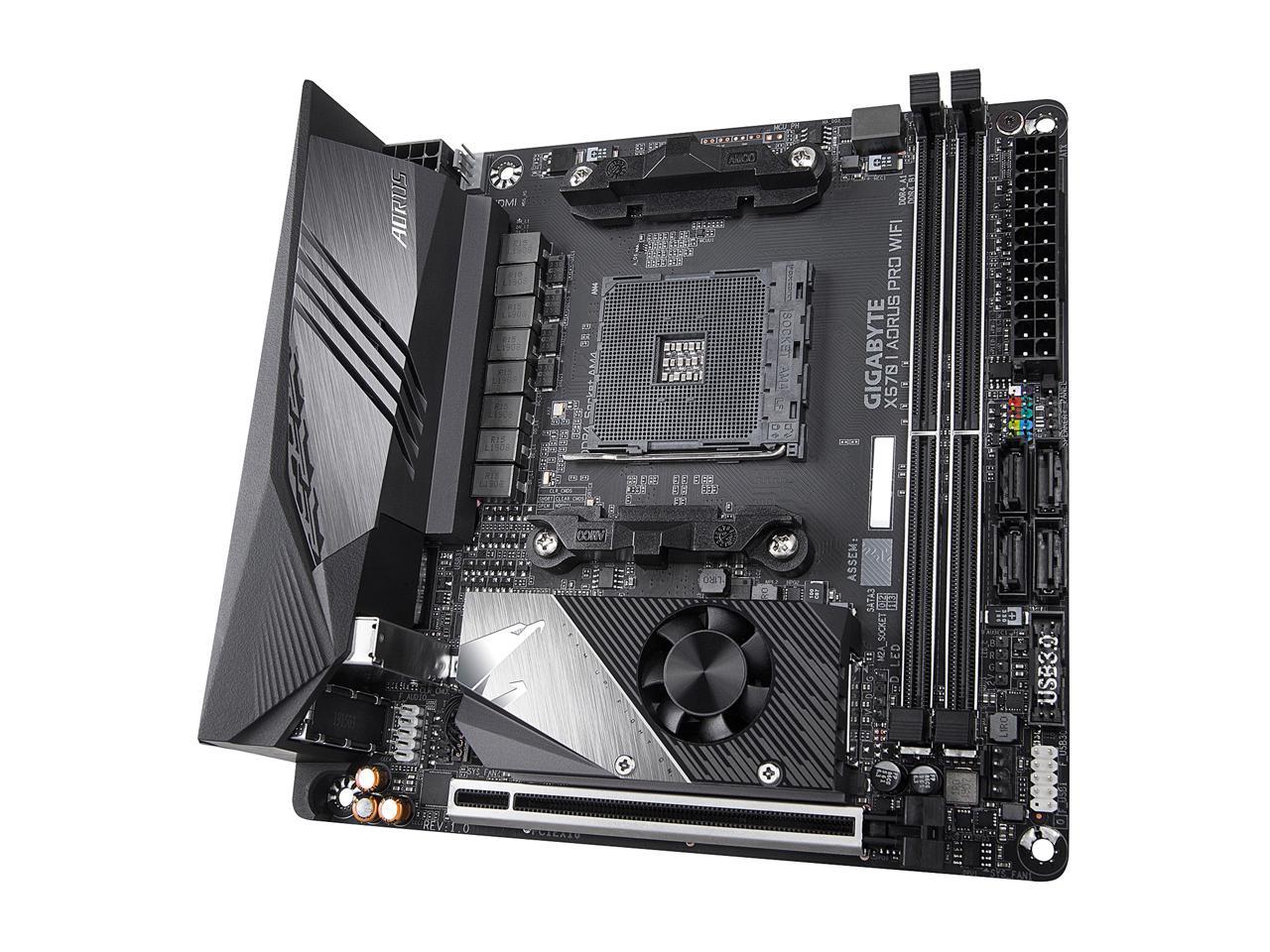

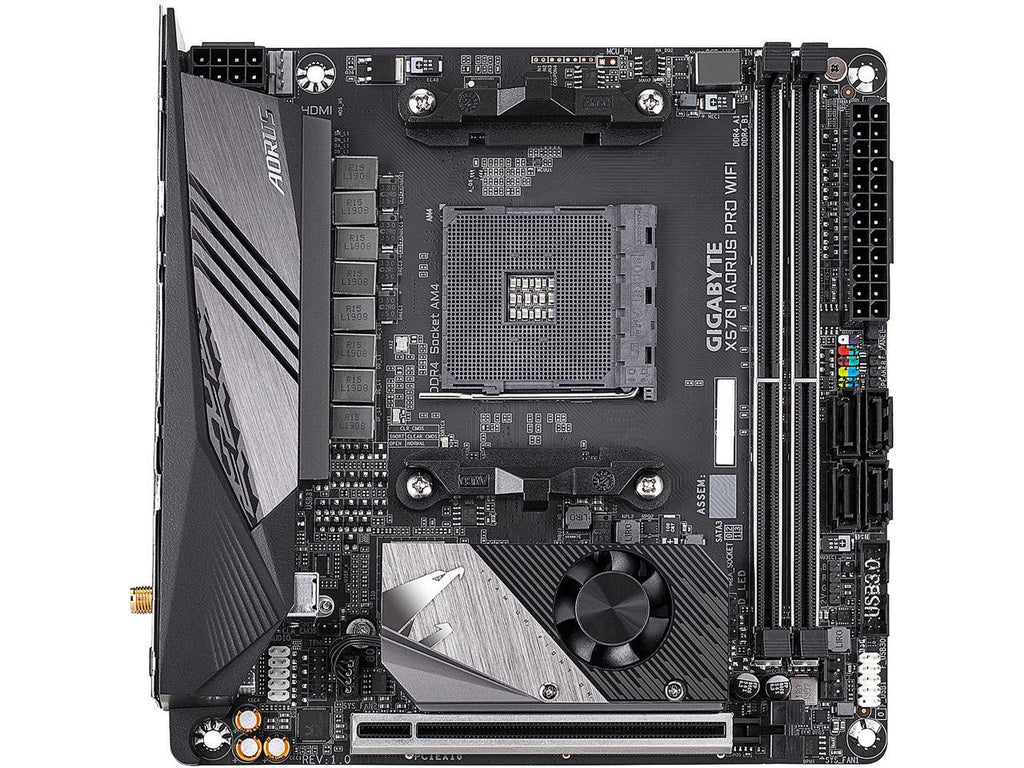

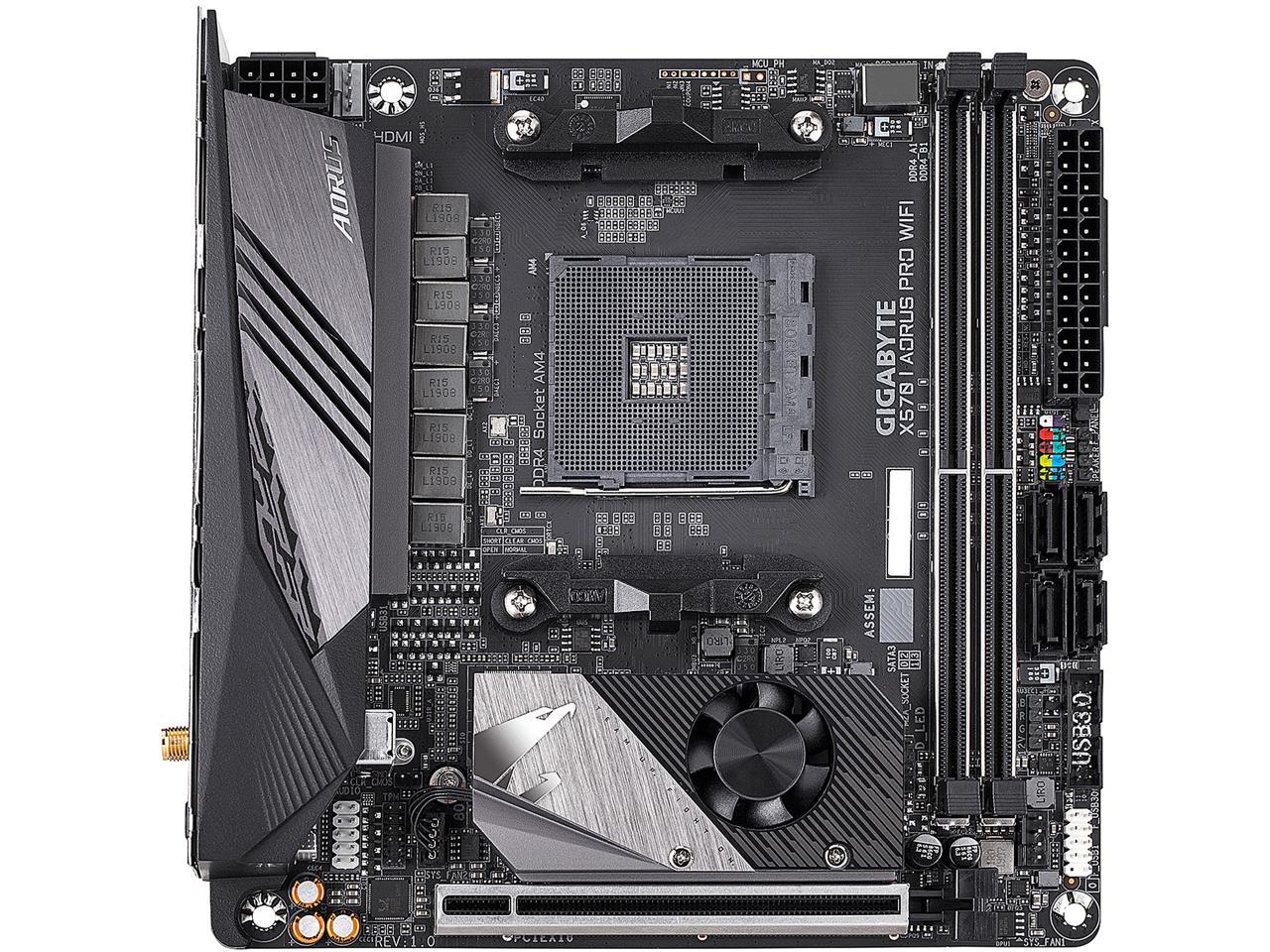

AMD X570 AORUS Motherboard with Direct 8 Phases IR Digital VRM, Advanced Thermal Design with Extended & Multi-Layered Heatsink, Dual PCIe 4.0 M.2, M.2 Thermal Guard, Intel® WiFi 6 802.11ax, Intel GbE LAN with cFosSpeed, USB 3.1 Gen2 Type-C, RGB Fusion 2.0
- Supports AMD 3rd Gen Ryzen™/ 2nd Gen Ryzen™/ 2nd Gen Ryzen™ with Radeon™ Vega Graphics/ Ryzen™ with Radeon™ Vega Graphics Processors
- Dual Channel ECC/ Non-ECC Unbuffered DDR4, 2 DIMMs
- Direct 8 Phases IR Digital VRM Solution with PowIRstage
- Advanced Thermal Design with Extended & Multi-Layered Heatsink
- Dual Ultra-Fast NVMe PCIe 4.0/3.0 x4 M.2 with one Thermal Guard
- Intel® WiFi 6 802.11ax 2T2R & BT 5
- ALC1220-VB Enhance 114dB(Rear)/ 110dB(Front) SNR in Microphone with Nichicon Audio Capacitors
- Intel® GbE LAN with cFosSpeed Internet
- RGB FUSION 2.0 with Multi-Zone Addressable LED Light Show Design, Supports Addressable LED & RGB LED Strips
- Smart Fan 5 features Multiple Temperature Sensors and Hybrid Fan Headers with FAN STOP
- Rear USB 3.1 Gen2 Type-C™ Header & HDMI 2.0 support
- Integrated Base Plate & I/O Shield Armor
- Q-Flash Plus update BIOS without installing CPU, Memory and Graphics card
DOMINANT IN DARKNESS
- Direct 8 Phases IR Digital VRM Solution with PowIRstage
- 8 Layer PCIe 4.0 Ready Mid-Loss PCB
- Advanced Thermal Design
- Fins-Array
- Direct Touch Heatpipes
- 5 W/mK LAIRD Thermal Conductivity Pad

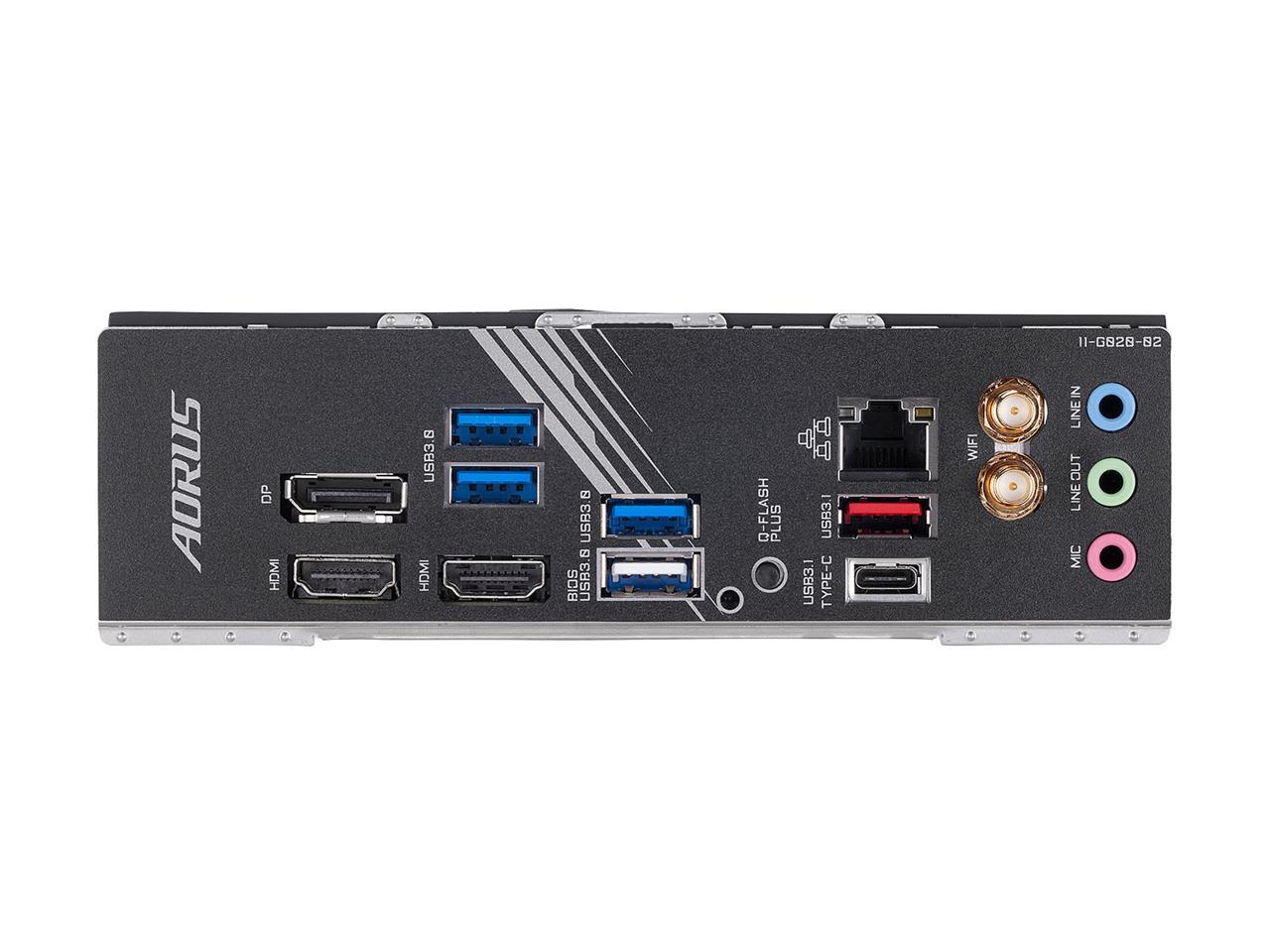

- Integrated I/O Shield
- DisplayPort + 2* HDMI 2.0
- Q-Flash Plus USB Port & Button
- Intel® i211AT GbE LAN
- cFosSpeed Internet Accelerator
- Intel® WiFi 6 802.11ax 2T2R & BT 5
- Audio Solutions
- ALC1220-VB Audio
- High-End Audio Capacitors (WIMA & Nichicon Fine Gold)
- Supports AMD Ryzen™ Series Processors
- Dual Channel DDR4, 4 DIMMs with Ultra Durable Memory Armor
- Solid Pin Power Connectors
- 24 pin ATX Power Connector
- 8 pin CPU Power Connector
- Dual PCIe 4.0 x4 M.2 Connectors
- PCIe 4.0/3.0 x4 NVMe support
- M.2 Thermal Guard with Multi-Layered Heatsink Design
- RGB FUSION 2.0
- Addressable LED Header*2
- RGB LED Header*3
- PCIe 4.0 Slot
- PCIe 4.0/3.0 x16 slot
- Ultra Durable PCIe Armor
GET READY FOR AMD RYZEN™ 3000-SERIES
GIGABYTE X570 motherboards based on the AMD X570 Chipset provide full support for 3rd Gen AMD Ryzen™ Processors. The all-new design is a testament to GIGABYTE's dedication to design quality. GIGABYTE X570 motherboards offer a rich list of features such as support for PCIe 4.0 and USB Type-C™ interfaces on select boards, refined audio, high speed of Ethernet and latest standard of WIFI design, to fulfill users' performance, audio, and data transfer needs. The new, advanced power and thermal design enables users to unleash the performance on AMD Ryzen™ 3000-series Processors, making the GIGABYTE X570 motherboards perfect for users looking to build the best AMD platform gaming system.
AMD StoreMI Technology
GIGABYTE X570 motherboards maximize your PC's potential with AMD StoreMI technology. StoreMI accelerates traditional storage devices to reduce boot times and enhance the overall user experience. This easy-to-use utility combines the speed of SSDs with the high capacity of HDDs into a single drive, enhances the read/write speeds of the device to match that of SSDs, bolsters data performance for incredible value, and transforms the everyday PC to a performance driven system.
The benefits of AMD StoreMI:- Making the PC experience fast, smooth and easy
- Optimizing computer responsiveness from system boot to application launch
- Offering SSD performance with HDD capacity at an affordable cost
- Quickly accessing key files by automatically learning users' computing behaviors
Ultimate Power Design
To unleash the full potential of the 3rd Generation of AMD Ryzen™ CPU, the motherboard requires the best CPU power design. With the best quality components and GIGABYTE R&D design capability, the X570 AORUS is a true beast among motherboards.
Direct 8 Phases IR Digital Power Design
- Direct 8 phases power design without PWM doubler
- No Doubler / Not Parallel
- Infineon 70A Power Stage
- Lower temperature
- Server level reliablity
X570 I AORUS PRO WIFI uses IR PWM controller and latest generation Infineon TDA21472 Power Stage 70A MOSFET to build the most powerful mini-ITX motherboard.
This compact but powerful PWM design offer incredible precision in delivering power to the motherboard's most power-hungry and energy-sensitive components, allowing enthusiasts to get the absolute maximum performance from the new AMD Ryzen 3000 series CPU on the smallest X570 motherboard.
Power Efficiency & Voltage Ripple Graph
Advanced Thermal Design
On a small mini-ITX board, heat is easily trapped and thermal balance is not easy to achieve. To avoid thermal throttle, an improved thermal solution consisting of a heatsink with cuts, and multi-layered heatsink has been implemented on the X570 I AORUS PRO WIFI. With a LAIRD 1.5mm thick, 5W/mK high thermal conductivity pads, it can transfer 2.7x more heat compared to traditional thermal pads in the same time period.
Base plate + I/O Shield Armor
Durable design and easy installation
With an integrated base plate, GIGABYTE Motherboards give users a strong foundation to build their Gaming PCs.
With an integrated I/O shield, building a GIGABYTE Ultra Durable PC is even easier.
Full PCIe 4.0 Design
X570 AORUS pushes the envelope once again by featuring Full PCIe 4.0 Design, including PCIe 4.0 slots, PCIe 4.0 M.2 connectors, and delivering highly optimized performance and flexibility demanded for power users and extreme gaming enthusiasts.
X570 AORUS Series Motherboards feature built-in PCIe 4.0 slots, delivering superior bandwidth compared to that from previous generation technology. Performance of Graphics cards and PCIe NVMe AIC SSDs will not be limited by insufficient bandwidth.
PCIe 4.0 slots have higher slot signal stability and lower impedance, maximizing PCIe bandwidth while also being backwards compatible with PCIe 3.0.
Dual PCIe 4.0 M.2 Connector with Thermal Guards
AORUS Gaming Motherboards are focused on delivering M.2 technology to enthusiasts who want to maximize their systems' potential.
Dual PCIe 4.0 SSD in RAID 0
Extreme Performance with PCIe 4.0 x4 NVMe PCIe SSDs
X570 AORUS motherboards offer the industry's best compatibility in terms of NVMe storage for users who demand high capacity and seek the best performance. AORUS' unique design can be configured in RAID for record speeds of up to 9534 MB/s (Sequential Read), making AORUS the obvious choice for the ultimate PC.
AORUS M.2 Thermal Guard designed for Gen 4 SSD
GIGABYTE Ultra-Efficient M.2 Thermal Guard
For upcoming ultra fast PCIe 4.0 SSDs, compromised performance is not acceptable. Well-managed thermal performance is particularly important for high-performance Gen 4 NVMe SSDs. GIGABYTE provides improved thermal solutions for M.2 SSD devices. The M.2 Thermal Guard prevents throttling and bottlenecks on high speed M.2 SSDs as it helps to dissipate heat before it becomes an issue.Thermal Throttling As Temperature Rises
Support for DDR4 XMP Up to 4400MHz and Beyond*
AORUS is offering a tested and proven platform that ensures proper compatibility with profiles up to 4400MHz and beyond. All users need to do to attain this performance boost is to ensure that their memory module is XMP capable and that the XMP function is activated and enabled on their AORUS motherboard.
Broad DDR4 Compatibility with Support List of 1000+ DDR4 Validated!
AORUS partners very closely with memory vendors from around the world to ensure that modules offered by popular memory brands are compatible with AORUS Motherboards. AORUS has verified over 1000+ different modules to ensure performance in a AORUS built system.
Next Generation Connectivity
A high-end product needs to be future-proof so your system stays up-to-date with the latest technology. X570 AORUS motherboards provide all next generation network, storage, and WIFI connectivity to keep you up to speed.
New Introduce Intel® WiFi 6 802.11ax + BT 5 Module
Intel Wireless solution supports 802.11ax, enables gigabit wireless performance, provides smooth video streaming, better gaming experience, few dropped connections and speeds up to 2.4Gbps*. Moreover, Bluetooth 5 provides 4X range over BT 4.2 and with faster transmission.
Benefit of WiFi 6:
- 5.5X throughput than 802.11ac 1x1*
- 4X better network capacity, no traffic jams especially in those dense area with lots of devices
- Network efficiency increase for better user experience
AORUS Antenna Supports Dual Band with Better WIFI Signal
- All new antenna supported dual band 802.11ax/ac 2.4GHz & 5GHz. better signal strength compared to traditional antenna design
- AORUS Antenna with smart antenna function for the best WIFI signal transmitting
- Multiple angle tilt and magnetic base for the best signal strength direction and location
Intel® GbE LAN with cFosSpeed Internet Accelerator Networking
Intel® GbE LAN features cFosSpeed, a network traffic management application which helps to improve network latency and maintain low ping times to deliver better responsiveness in crowded LAN environments.
Native USB 3.2 Gen2
Connecting the Future - USB Type-C™
AMD's native USB 3.2 Gen2 provides USB 3.2 Gen2 ports with speeds up to 10Gbps. With twice the bandwidth compared to its previous generation as well as backwards compatibility with USB 2.0 and USB 3.2 Gen1, the much improved USB 3.2 Gen2 protocol is available over the new reversible USB Type-C™ and the traditional USB Type-A connector for better compatibility over a wider range of devices.
Connecting the Future - USB Type-C™
- The World's Next Universal Connector
- Reversible USB Type-C™ with USB 3.1 Gen 2
HDMI 2.0 for 4K / 60P / 21:9 / HDCP 2.2 Support
HDMI 2.0, which is backwards compatible with HDMI 1.4, offers 18 Gb/s of bandwidth – nearly twice that of the previous generation. This unlocks the potential for users to transfer multiple video streams, as well as a native cinematic 21:9 ratio (which most movies are shot in), offering the best visual experience for viewers.
ALC1220-VB Immersive Gaming ViBes
All New Realtek High-End HD Audio Codec
ALC1220 120dB(A) SNR HD Audio with Smart Headphone Amp automatically detects impedance of your head-worn audio device, preventing issues such as low volume and distortion.
With the new VB series audio controller, stream your voice to the world vibrantly with both front/rear microphone SNR up to 110/114dB(A).
No More Confusion During In-Game Voice Chat
Microphone input with higher front dynamic range allows gamers to hear more clearly. No more misunderstandings, no more confusing GO! GO! GO! as NO! NO! NO!
High-End Audio Capacitors
AORUS motherboards use high-end audio capacitors. These high quality capacitors help deliver high resolution and high fidelity audio to provide the most realistic sound effects for gamers.
RGB Fusion 2.0
With an integrated intuitive user interface, the RGB Fusion 2.0 provides you a better solution for customizing the lighting effects across all supported devices. From motherboards, graphics cards to the peripheral products, you can personalize your gaming rig with your own style and show off your build by sharing the profiles. In addition, the new gaming mode makes the lighting effects interactive with selected games to bring you the most immersive gaming experience.
Multi-Zone Light Show Design
Now offering more LED customizations than ever, users can truly adapt their PC to represent their lifestyle. With full RGB support and a redesigned RGB Fusion 2.0 application, the user has complete control over the LEDs which surround the motherboard.
RGB Fusion 2.0 Software
With an integrated intuitive user interface, the RGB Fusion 2.0 provides you a better solution for customizing the lighting effects across all supported devices. From motherboards, graphics cards to the peripheral products, you can personalize your gaming rig with your own style and show off your build by sharing the profiles. In addition, the new gaming mode makes the lighting effects interactive with selected games to bring you the most immersive gaming experience.
GIGABYTE RGB Fusion APP
Don't just make your PC shine, make it a work of art that friends will envy. With the GIGABYTE RGB Fusion mobile app users can watch as they control the lighting within their gaming PC. This gives users ease of access as they try and adjust colors and speeds for different modes, all this can be achieved away from the keyboard and monitor of their PC.
Smart Fan 5
With Smart Fan 5 users can ensure that their gaming PC can maintain its performance while staying cool. Smart Fan 5 allows users to interchange their fan headers to reflect different thermal sensors at different locations on the motherboard. Not only that, with Smart Fan 5 more hybrid fan headers that support both PWM and Voltage mode fans have been introduced to make the motherboard more liquid cooling friendly.
Different models have different number of fan pin headers and temperature sensors. Smart Fan 5 function may vary by model.
- 2 Fan Pin Headers
- 4 Temperature Sensors
- All Fan Pin Headers Upgraded to Hybrid Fan Headers
- Interoperable Fans and Sensors
- Supports High Current Fans up to 24W(2AX12V) with Over-Current Protection
- Intuitive UI for Fan Control
FAN STOP
Achieve fan silence. With Fan Stop, map any fan to stop completely when temperatures drop below a specified threshold. Which fan stops, based on readings from which sensor, and at what temperature—all of it can be customized to your liking.
Hybrid Fan Pin Headers
Assume complete control over your liquid cooling setup! Smart Fan 5 receives up-to-the-second information on flow-rate and water-temperature through the Hybrid Fan Pin Headers or external thermistor sensors—giving you absolute mastery over your PC.- All Hybrid Fan Headers can automatically detect the type of cooling device whether it be fan or pump with different PWM or Voltage mode.
New Smart Fan 5 Software
Choose from different modes, Quiet to Full Speed, to match your system usage preferences. For each fan or pump, you can use the intuitive fan curve to define trigger thresholds and corresponding fan speeds.
Q-Flash Plus
Update the BIOS easily without installing the CPU, memory and graphics card.
With GIGABYTE Q-Flash Plus, you don't need to install the CPU, memory and graphics card nor enter the BIOS menu to flash the BIOS. Just download and save a new BIOS file (rename to gigabyte.bin) on the USB flash drive, then press the dedicated Q-Flash Plus button and you're good to go!
Solid Pin Power Connectors
X570 AORUS motherboards feature solid plated ATX 24pin & ATX 12V 8pin + 8pin power connectors to offer a stable power supply during CPU overloading.
Solid Pin Power connector advantages
- Larger contact area for electricity
- More metal quantity to sustain higher power and generated heat
- Ultra durable and longer lifespan
Ultra Durable™ PCIe Armor
Industry Leading Ultra Durable™ PCIe Armor
The innovative one piece stainless steel shielding design from GIGABYTE reinforces the PCIe connectors to provide the extra strength required to support heavy graphics cards.
Ultra Durable™ Memory Armor
AORUS' exclusive one piece stainless steel shielding design prevents against PCB distortion/twisting and plate bending, in addition to preventing any possible ESD interference
GIGABYTE Patented Double Locking Bracket
The Industry's Leading Static-Electricity & Surge Protection
Easy to Install "G Connector" Design
The tiny cables of the front panel connectors can be hard to manipulate as space is restricted and indicators are tiny. With the G Connector, you can connect all the FP cables at once, simplifying the process of building your next PC and saving you frustration.
BIOS
New User Interface
All new EASY MODE shows important hardware information in one page including CPU clock, Memory, Storage, Fan.
My Favorites
Add constantly used items into the favorite menu for quick access.
Storage Information
Show all kinds of storage information including SATA, PCIE and M.2 interface.
Changelog
List all changes before saving and exiting bios. Quickly review overall settings modification.
Optimized Memory Installation Reminder
Displays correct installation reminder message when user installs two memory modules but runs single channel mode.
Intuitive Load Line Curve
Clearly show each loadline calibration setting in an intuitive curve graph.
APP CENTER
GIGABYTE APP CENTER is a useful portal of all GIGABYTE MB utilities and drivers, you can choose any utility you want to install from APP CENTER and keep updated with the latest utilities and drivers version.
EasyTune
GIGABYTE's EasyTune™ is a simple and easy-to-use interface that allows users to fine-tune their system settings or adjust system and memory clocks and voltages in a Windows environment. With Smart Quick Boost, one click is all it takes to automatically overclock your system, giving an added performance boost when you need it the most.
@BIOS
The GIGABYTE @BIOS app allows you to update your system's BIOS from within Windows using a simple and slick graphical user interface. @BIOS can automatically download the latest version from the GIGABYTE servers or you can update your BIOS from a file on your computer. @BIOS also allows you to save your current BIOS to a file, recover your previous BIOS from an image and backup your BIOS to an image.
System Information Viewer
GIGABYTE System Information Viewer is a central location that gives you access to your current system status. Monitor components such as the clocks and processor, set your preferred fan speed profile, create alerts when temperatures get too high or record your system's behavior; these are the possibilities of the System Information Viewer.
XSplit Gamecaster + Broadcaster: Cast Your Game Anytime, Anywhere
Now set up your stage and share the greatest gaming moments with XSplit Gamecaster + Broadcaster! Fully optimized social media integration is ready for real-time chats—keeping you notified yet focused in the game. It takes just one click to stream your gameplay to Twitch. Host your game like a pro!* Free 1 year XSplit Gamecaster + Broadcaster Premium License.
General Information
| UPC | 889523018040 |
|---|
