Description
UHD-202VW: HDMI 2x2 Video Wall Controller 4K@60Hz
Key Features:
HDMI 2.0 and HDCP 2.2 compliant
Input video resolutions up to 4K@60Hz
Output video resolutions up to 1080P@60Hz
18Gbps video bandwidth

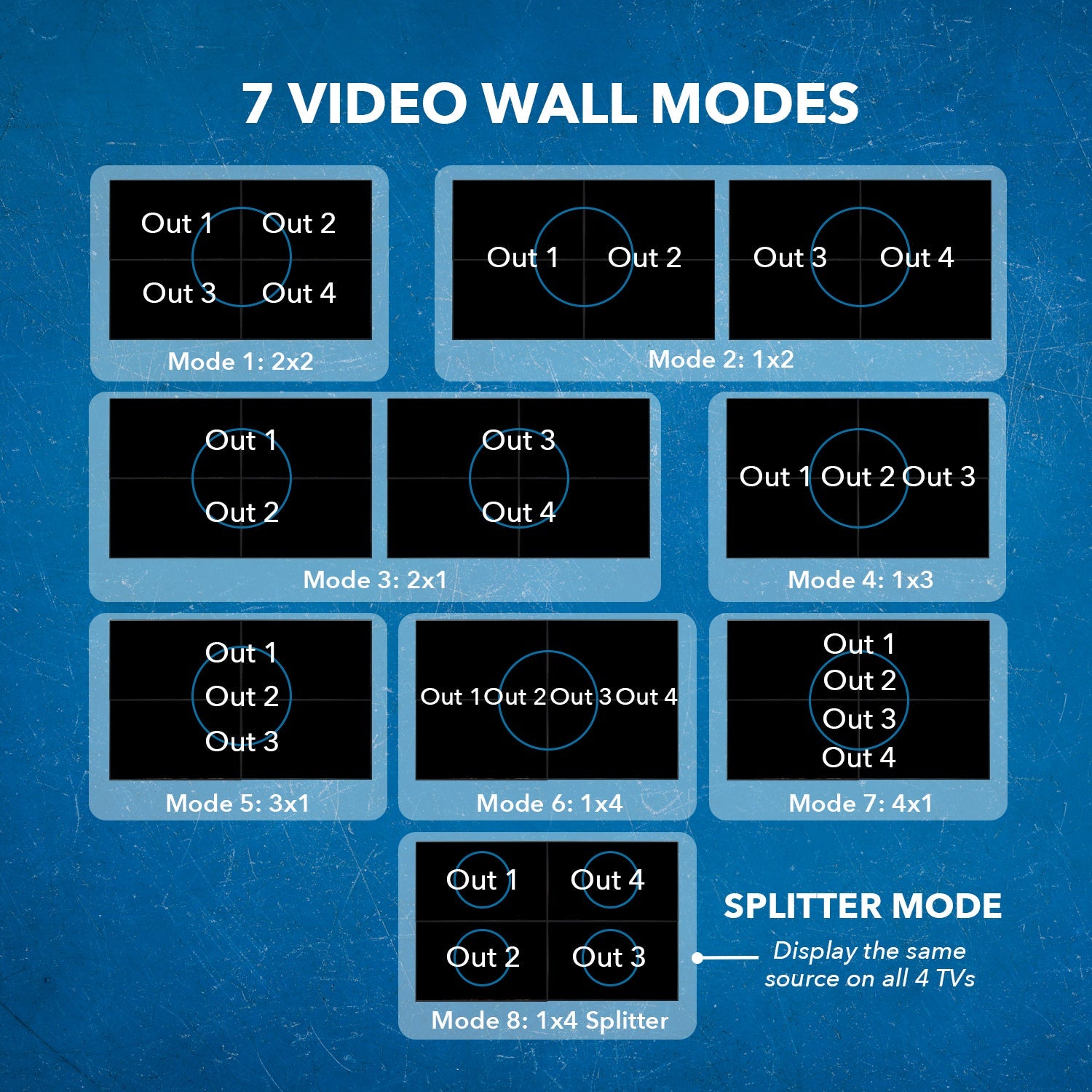

Various display modes: 2x2, 1x2, 1x3, or 1x4
Bezel adjustment, 180-degree rotation, and OSD
Power-off memory function to recall the last setup

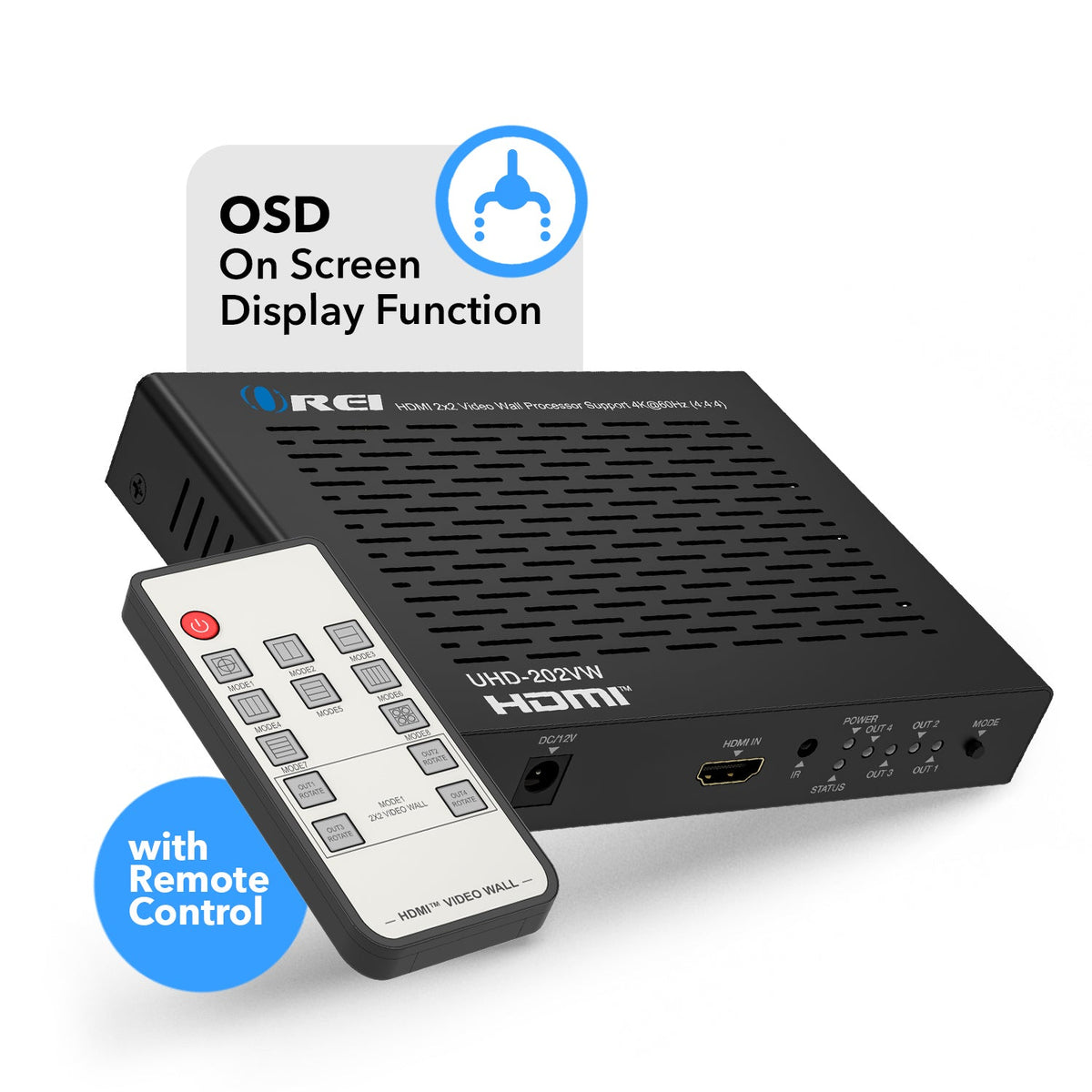

Control via the included remote or mode button

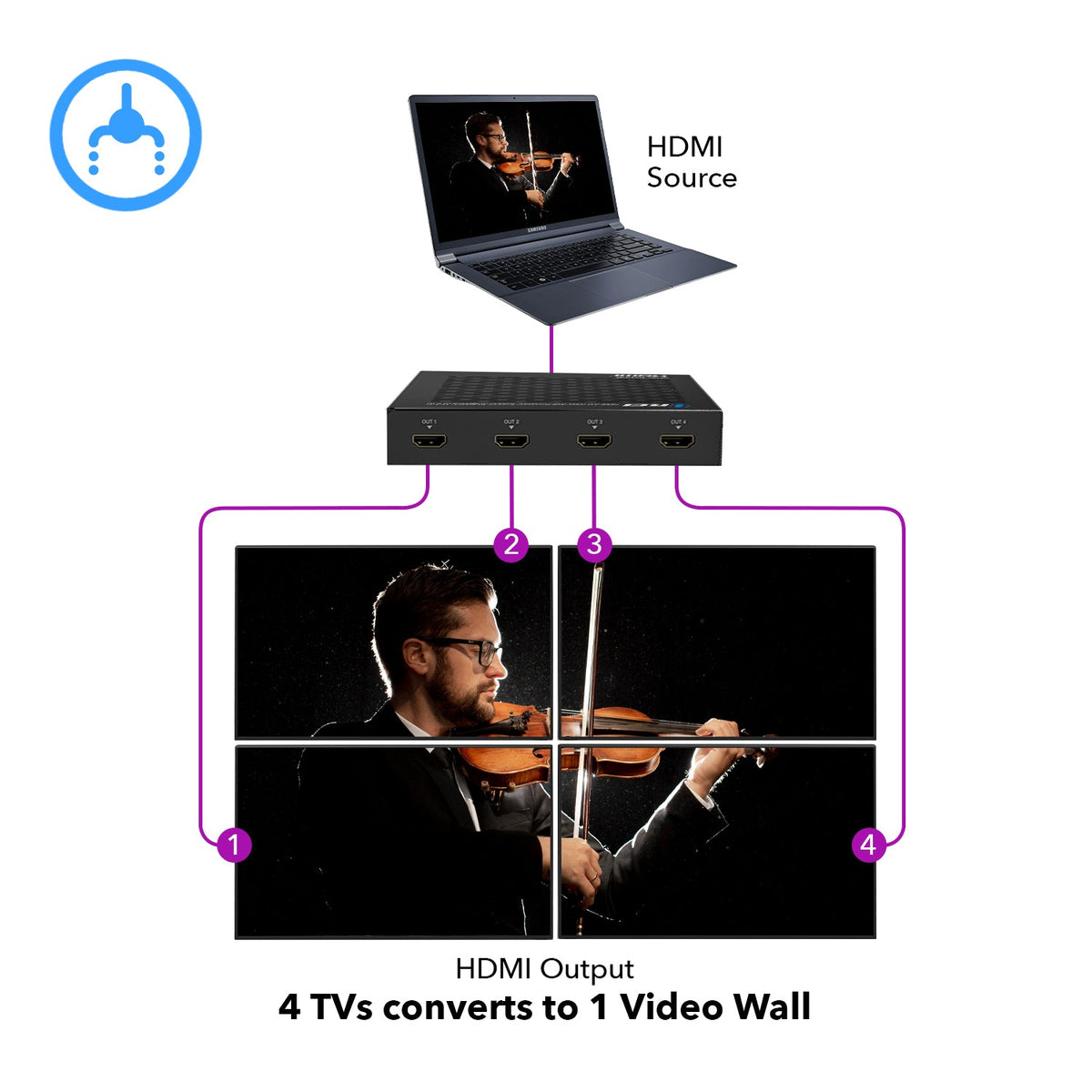

The UHD-202VW video wall controller is an awesome solution featuring 1 inputs, and 4 outputs. It adheres to HDMI 2.0 and HDCP 2.2 standards, accommodating resolutions of up to 4K@60Hz for input and 1080p@60Hz for output. Offering diverse video wall modes, including the 2x2 mode, it allows for seamless bezel adjustment and provides a unique 180-degree rotation feature for the top two displays in 2x2 video wall mode. It can be controlled through the remote or the Mode button.
[shortdes]
HDMI Video wall controller
Video resolutions up to 4K@60Hz
Features 180-degree rotation, bezel management
[/shortdes]
[tab]
CONNECTIVITY
INPUT:
1 × HDMI [Type A, 19-pin female]
OUTPUT:
4 × HDMI [Type A, 19-pin female]
PACKAGE CONTENTS
1x UHD-202VW
1x Remote control
1x Power Adapter
User Manual
SUPPORTED HDMI CABLES
HDMI 2.0/ 2.1
We recommend using high-quality HDMI 2.0/2.1 cables under 30 feet for optimum performance
