Description

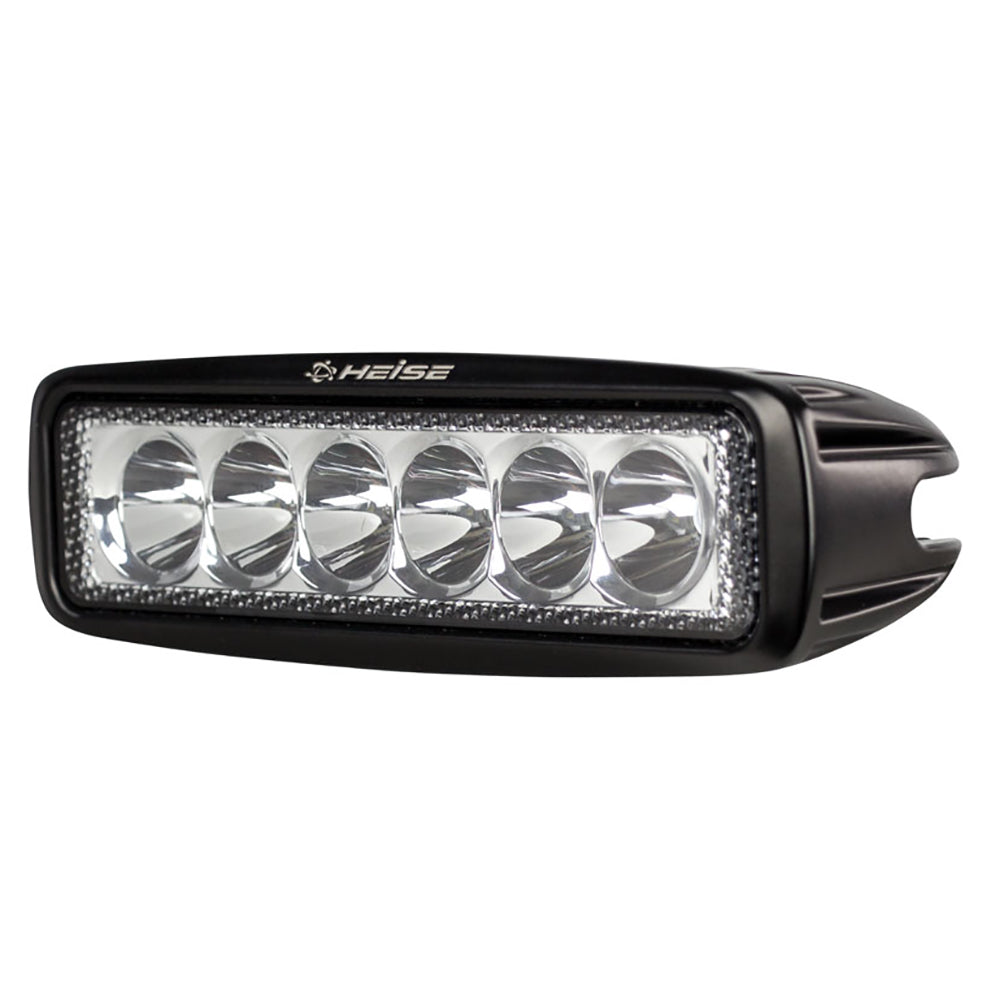

6 LED Single Row Driving Light
SPECS
- Input Voltage: 10-30V DC
- Wattage: 18W (6-3W OSRAM LEDs)
- Raw Lumens: 1440
- Color Temperature: 6000K
- Beam Pattern: 25deg Spot
CONSTRUCTION
- Housing Material: Die-cast Aluminum Housing
- Housing Color: Black
- Lens Material: PC
- Mounting Bracket: Black Powder Coated Steel
- Hole Dimensions: Mounting Bolt Drill – .25in
- Electronics: Integrated-Epoxy Encapsulated
- Hardware: Stainless 316
OPERATION
- Operating Temperature: -40degC to +60degC
- Current Consumption: .9 amps at 13.8 volts
- IP Rating: IP67
- Protections: Reverse Polarity
WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
Beam Pattern = Driving | Voltage - Input Range (Volts) = 10-30v | Length (Inches) = 6.25" | Housing = Black
Manufacturer Part Number: HE-DL1
General Information
| Manufacturer | HEISE LED Lighting Systems |
|---|---|
| Manufacturer Part Number | HE-DL1 |
| Product Type | Automotive/RV | Lighting,Lighting | Flood/Spreader Lights |
| UPC | 086429312917 |
