Description

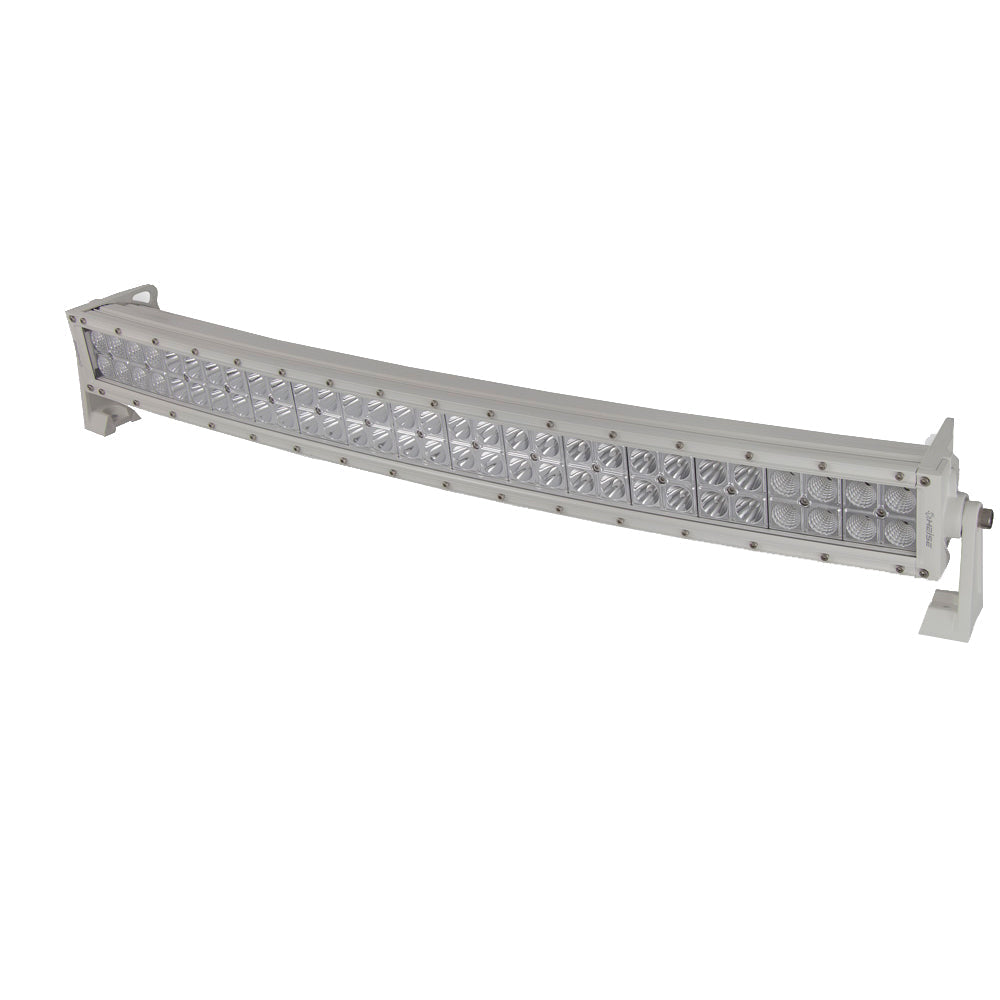

Dual Row Marine LED Curved Light Bar - 30"
Specs
- Input Voltage: 10-30V DC
- Wattage: 180 W
- (60-3W CREE LEDs)
- Raw Lumens: 14400
- LUX at 10M: 625
- Color Temperature: 6000K
- Beam Pattern: Combo/Flood 90 degrees/Spot 8 degrees
Construction
- Housing Material: Die-Cast Aluminum Housing
- Housing Color: White Coating with UV Inhibitors
- Membrane: Gore®
- Lens Material: PC
- Mounting Bracket: Die-Cast Aluminum
- Hole Dimensions:
- Brackets Turned Inward – 31 inches
- Brackets Turned Outward – 33.5 inches
- Mounting Bolt Drill – 25 inches
- Height of Light Bar Itself: 3 inches
- Depth of Light Bar Itself: 3.5 inches
- Electronics: Integrated-Epoxy Encapsulated
- Hardware: Stainless 316
Operation
- Operating Temperature: – 40 degrees C to +60 degrees C
- Current Consumption: 9.5 Amps at 13.8 Volts
- IP Rating: IP67
- Protections: Reverse Polarity
WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
| Quick Guide | View (pdf) |
General Information
| Manufacturer | HEISE LED Lighting Systems |
|---|---|
| Manufacturer Part Number | HE-MDRC30 |
| Product Type | Automotive/RV | Lighting,Lighting | Light Bars |
| UPC | 086429348275 |
