Hikvision Digital Technology Ds-9616Ni-I8 1U Black

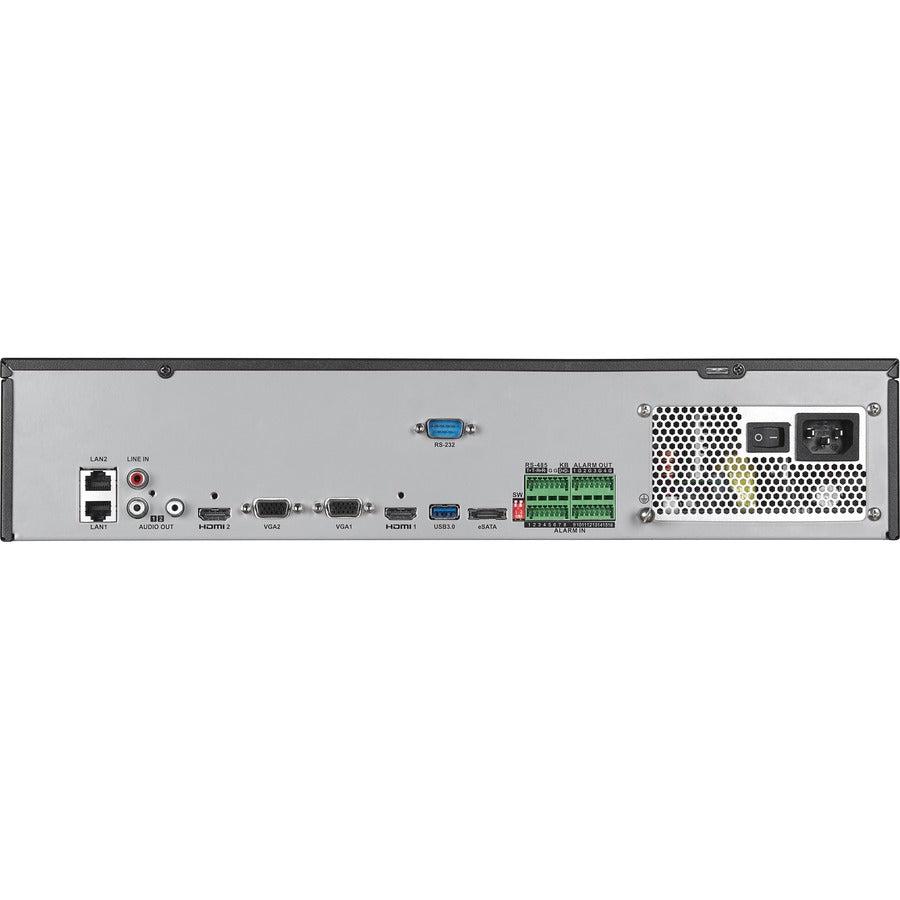

16-channel alarm in, 16-channel alarm out, 2 TB, HDMI, VGA, 2x RJ-45, RS-232, RS-485, 2x USB 2.0, USB 3.0, 19", 2U, 445x470x90 mm

Hikvision Digital Technology DS-9616NI-I8. Video input channels: 32 channels, Maximum resolution: 3840 x 2160 pixels, Supported resolutions: 3840 x 2160 30Hz, 2560 x 1440 /60Hz, 1920 x 1080 60Hz, 1600 x 1200 60Hz, 1280 x 1024 60Hz, 1280 x.... Maximum storage capacity: 24 TB, HDD interface: Serial ATA, Total installed storage capacity: 2000 GB. Ethernet LAN data rates: 10,100,1000 Mbit/s, Supported network protocols: TCP/IP, DHCP, HIK P2P, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP, HTTPS, RTP, UDP/IP, HTTP,.... Rack capacity: 1U, Product colour: Black. Power consumption (max): 200 W, AC input voltage: 100 - 240 V, AC input frequency: 50 - 60 Hz

- H.265, H.264+, H.264, MPEG4 Video Formats
- Up to 12 Megapixels Resolution Recording
- Synchronous 2-ch HDMI, 2-ch VGA and HDMI1 4 K (3840 x 2160) Resolution
- Connect Up to 16 IP Cameras with 320 Mbps Incoming Bandwidth
- Up to 8 SATA HDD and 1 eSATA Interface for Record and Backup
- Redundant Power Supply To Improve System Stability
- HDD Hot-Swap with Configurable RAID 0, RAID 1, RAID 5, RAID 10
- VCA Detection Alarm and VCA Search
- RS-485 Control Hikvision-C and Pelco D/P Protocol
- Instant Camera Playback During Multi-Channel Live View
- 16-ch Synchronous Playback
- Reverse Playback for Multi-Channels
- Smart Search and Playback for Efficiency
- Customization of Tags, Searching, and Playing Back by Tags
- Alarm I/O, 16/4
- HDD Quota and Group Management
- Hikvision DDNS (Dynamic Domain Name System)
- Third-Party Network Cameras Supported
