Description
IP video 4ch, Audio in 4ch, 25/30fps, GPS, 3G, WLAN, 1.6kg

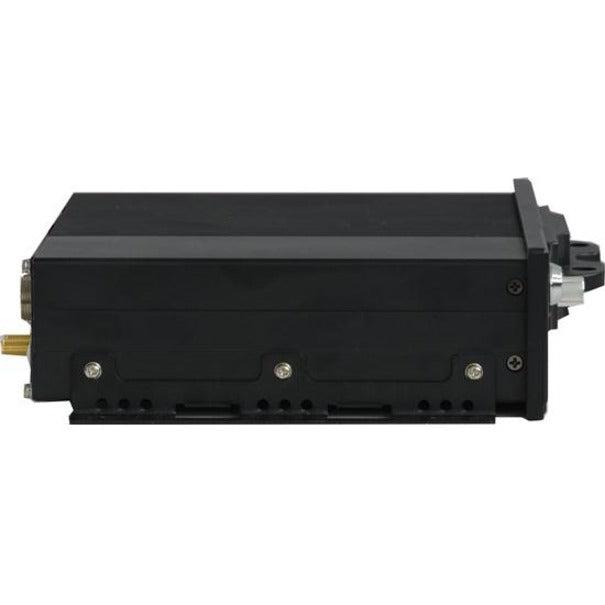

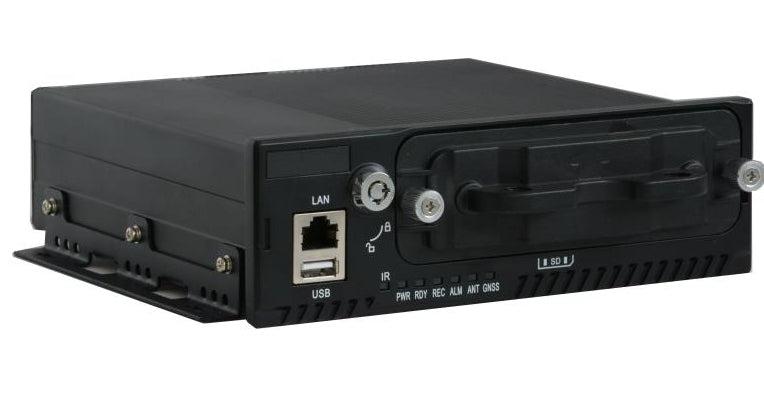

Hikvision Digital Technology DS-M5504HNI/GW/WI. Product colour: Black, Video compression formats: H.264, Compatible memory cards: SD. Video input channels: 4 channels. Ethernet interface type: Fast Ethernet. HDD interface: Serial ATA, Maximum HDD capacity: 1000 GB, HDD size: 2.5". Power consumption (standby): 0.5 W, Power consumption (max): 20 W
Features and Functions
- User-friendly GUI providing easy and flexible operations; - Pluggable 4G (FDD-LTE), 3G (WCDMA) and Wi-Fi module providing flexible data transmission solutions; - Pluggable GPS (Global Positioning System) module precisely positioning the vehicle via the satellite and recording the location information in the video stream; - IP camera connection with Hikvision private protocol and ONVIF protocol supported; - 4 independent network interfaces connectable to 4 IP cameras; each channel supports up to 1080P resolution with - H.264 encoding technology; - Two 2.5-inch HDDs/SSDs and one SD card pluggable, adopting hard disk vibration damping technology; - Backup recording on SD card when the HDDs/SSDs are broken; - Information collection interfaces collect driving information such as left/right turn, braking, rolling back, etc.; - Left/right mirror type of the image configurable; - Software-based firewall supported; - Support accessing via WEB browser; - Wide-range power input (9 to 32 VDC); - Ignition startup and delay (0 h to 6 h) shutdown; - Power-off protection prevents key data from loss; - Standard 1DIN dimensions; - Aluminum die-cast chassis of good heat dissipation performance with no fan design which well adapts to working environment; - Hard disk box with USB interface supports intelligent temperature control and data export; - Specialized aviation plugs ensure signal stability.
