Taoglas TG.08 Cellular/ GPS/ GLONASS/ GALILEO/ BeiDou Monopole Antenna

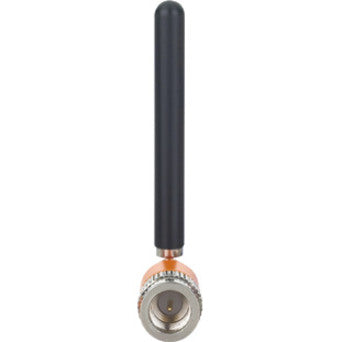

The compact TG.08 with hinged rotatable SMA connector, is an impressively high efficiency monopole antenna, which provides wide coverage among cellular and GNSS frequencies.
With its cellular and GNSS function, plus compact design, TG.08 can fit and function perfectly with routers, vehicle tracking devices, telematics devices, and remote monitoring systems. It is also ideal for use with cellular modules with Assisted GPS functionality that can be implemented in various devices.
This 72mm long monopole antenna works efficiently from 700MHz to 2700MHz, widely covering 4G/3G/2G bands, as well as GPS/GLONASS/Galileo /BeiDou. At its maximum efficiency when connected to ground plane, it can achieve 73% and 67% at GPS and LTE bands, respectively.
As all monopole antennas, TG.08 works best while connecting directly to the ground-plane of the device main-board, or with the device's metal enclosure.

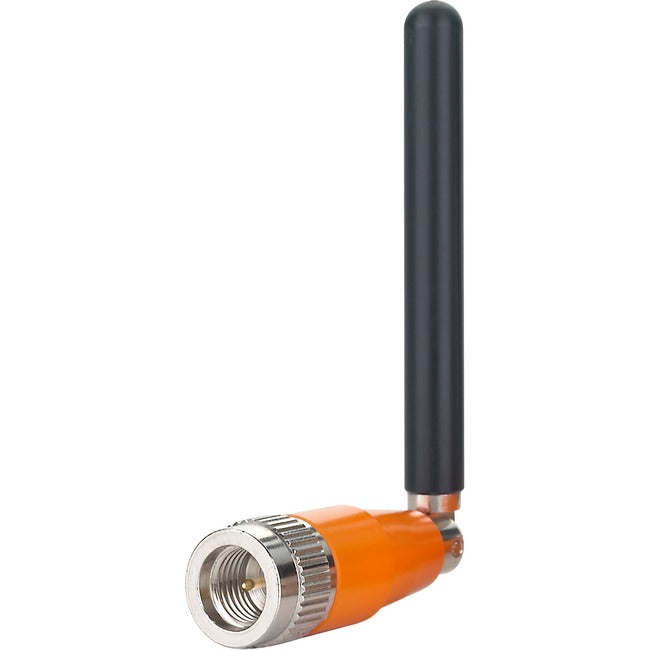

The robust brass hinge enables TG.08 to be oriented in all directions, providing users to maximize performance with minimum effort.
TG.08, the small antenna with surprisingly large efficiency, is surely the best candidate in the market for Cellular/GNSS combination terminal antennas.
- Receive signals from multiple directions with this omnidirectional antenna
- With its strong connection and faster transfer speeds, this cellular network provides the best reception
- Even with its extremely durable design and weather resistant features, this flexible and thin antenna is easy to install
Product Type: Antenna
Environmentally Friendly: Yes
Environmental Certification: RoHS
Product Color: Black/Orange
Diameter: 0.39"
Country Of Origin: Taiwan
Brand Name: Taoglas
Form Factor: Whip
Manufacturer: Taoglas
Product Name: TG.08 Cellular/ GPS/ GLONASS/ GALILEO/ BeiDou Monopole Antenna
Package Type: Bulk
Application/Usage: Indoor
Manufacturer Part Number: TG.08.0113
Manufacturer Website Address: http://www.taoglas.com
Packaged Quantity: 1
Weight (Approximate): 2.08 oz
