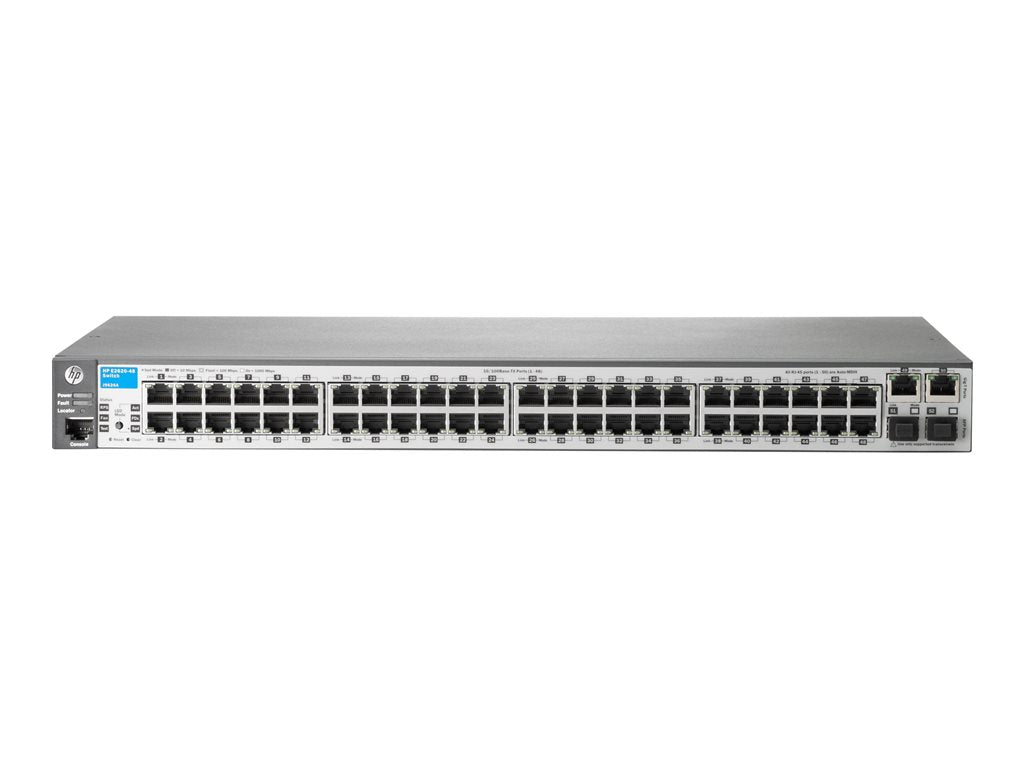

HPE Aruba 2620-48 - Switch - L4 - managed - 48 x 10/100 + 2 x 10/100/1000 + 2 x SFP - rack-mountable
- Layer 4 prioritization
- Traffic prioritization (IEEE 802.1p)
- Class of service (CoS)
- Rate limiting
- Auto-MDIX
- Single IP address management
- External redundant power supply
- IEEE 802.3ad Link Aggregation Protocol (LACP) and HPE port trunking
- IEEE 802.1s multiple spanning tree
- Dual flash images
- Friendly port names
- Find-fix-inform
- Multiple configuration files
- RMON, XRMON, and sFlow
- Jumbo packet support
- IEEE 802.1v protocol VLANs
- Static IP routing
- Routing Information Protocol (RIP)
- Access control lists (ACLs)
- Source-port filtering
- RADIUS/TACACS+
- Secure Shell (SSHv2)
- Secure Sockets Layer (SSL)
- Port security
- MAC address lockout
- File Transfer Protocol (FTP)
- Custom banner
- Identity-driven ACL
- STP BPDU port protection
- DHCP protection
- Dynamic ARP protection
- STP root guard
- Port mirroring for network threats
- Per-port broadcast throttling
- IP multicast snooping and data-driven IGMP
- LLDP-MED (Media Endpoint Discovery)
- IEEE 802.1AB Link Layer Discovery Protocol (LLDP)
- Port mirroring
The HPE 2620-48 switch has variable speed fans for quiet operation. It includes two 10/100/1000Base-T ports and two SFP slots for Gigabit Ethernet uplink connectivity. With IPv4/IPv6 static and RIP routing, robust security and management features, the HPE 2620 switch series is a cost-effective solution for customers who are building converged enterprise edge networks.
-
Layer 4 prioritization
Layer 4 prioritization enables prioritization based on TCP/UDP port numbers.
-
Traffic prioritization (IEEE 802.1p)
Traffic prioritization (IEEE 802.1p) allows real-time traffic classification into eight priority levels mapped to eight queues.
-
Class of service (CoS)
Class of service (CoS) sets the IEEE 802.1p priority tag based on IP address, IP Type of Service (ToS), Layer 3 protocol, TCP/UDP port number, source port, and DiffServ.
-
Rate limiting
Rate limiting sets per-port ingress enforced maximums and per-port, per-queue guaranteed minimums.
-
Auto-MDIX
Auto-MDIX automatically adjusts for straight-through or crossover cables on all 10/100 and 10/100/1000 ports.
-
Single IP address management
Single IP address management for a virtual stack of up to 16 switches.
-
External redundant power supply
External redundant power supply provides high reliability.
-
IEEE 802.3ad Link Aggregation Protocol (LACP) and HPE port trunking
IEEE 802.3ad Link Aggregation Protocol (LACP) and HPE port trunking support up to 24 trunks, each with up to 8 links (ports) per trunk.
-
IEEE 802.1s multiple spanning tree
IEEE 802.1s multiple spanning tree provides high link availability in multiple VLAN environments by allowing multiple spanning trees.
-
Dual flash images
Dual flash images provide independent primary and secondary operating system files for backup while upgrading.
-
Friendly port names
Friendly port names allow assignment of descriptive names to ports.
-
Find-fix-inform
Find-fix-inform finds and fixes common network problems automatically, then informs administrator.
-
Multiple configuration files
Multiple configuration files allow multiple configuration files to be stored to flash image.
-
RMON, XRMON, and sFlow
RMON, XRMON, and sFlow provide advanced monitoring and reporting capabilities for statistics, history, alarms, and events.
-
Jumbo packet support
Support up to 9220-byte frame size to improve the performance of large data transfers.
-
IEEE 802.1v protocol VLANs
Isolate select non-IPv4 protocols automatically into their own VLANs.
-
Static IP routing
Static IP routing provides manually configured routing; includes ECMP capability.
-
Routing Information Protocol (RIP)
Routing Information Protocol (RIP) provides RIPv1 and RIPv2 routing.
-
Access control lists (ACLs)
Access control lists (ACLs) provide IP Layer 3 filtering based on source/destination IP address/subnet and source/destination TCP/UDP port number.
-
Source-port filtering
Source-port filtering allows only specified ports to communicate with each other.
-
RADIUS/TACACS+
RADIUS/TACACS+ eases switch management security administration by using a password authentication server.
-
Secure Shell (SSHv2)
Secure Shell (SSHv2) encrypts all transmitted data for secure, remote command-line interface (CLI) access over IP networks.
-
Secure Sockets Layer (SSL)
Secure Sockets Layer (SSL) encrypts all HTTP traffic, allowing secure access to the browser-based management GUI in the switch.
-
Port security
Port security allows access only to specified MAC addresses, which can be learned or specified by the administrator.
-
MAC address lockout
MAC address lockout prevents particular configured MAC addresses from connecting to the network.
-
Secure File Transfer Protocol (FTP)
Secure File Transfer Protocol (FTP) allows secure file transfer to and from the switch; protects against unwanted file downloads or unauthorized copying of a switch configuration file.
-
Custom banner
Custom banner displays security policy when users log in to the switch.
-
Identity-driven ACL
Identity-driven ACL enables implementation of a highly granular and flexible access security policy and VLAN assignment specific to each authenticated network user.
-
STP BPDU port protection
STP BPDU port protection blocks Bridge Protocol Data Units (BPDUs) on ports that do not require BPDUs, preventing forged BPDU attacks.
-
DHCP protection
blocks DHCP packets from unauthorized DHCP servers, preventing denial-of-service attacks.
-
Dynamic ARP protection
Dynamic ARP protection blocks ARP broadcasts from unauthorized hosts, preventing eavesdropping or theft of network data.
-
STP root guard
STP root guard protects the root bridge from malicious attack or configuration mistakes.
-
Per-port broadcast throttling
Per-port broadcast throttling selectively configures broadcast control on heavy traffic port uplinks.
-
IP multicast snooping and data-driven IGMP
IP multicast snooping and data-driven IGMP automatically prevents flooding of IP multicast traffic.
-
LLDP-MED (Media Endpoint Discovery)
LLDP-MED (Media Endpoint Discovery) is a standard extension of LLDP that stores values for parameters such as QoS and VLAN to automatically configure network devices such as IP phones.
-
IEEE 802.1AB Link Layer Discovery Protocol (LLDP)
IEEE 802.1AB Link Layer Discovery Protocol (LLDP) is an automated device discovery protocol for easy mapping by network management applications.
-
Port mirroring
Port mirroring enables traffic on a port to be simultaneously sent to a network analyzer for monitoring.
What's in the box:
- Aruba 2620-48
- Rack mounting kit
