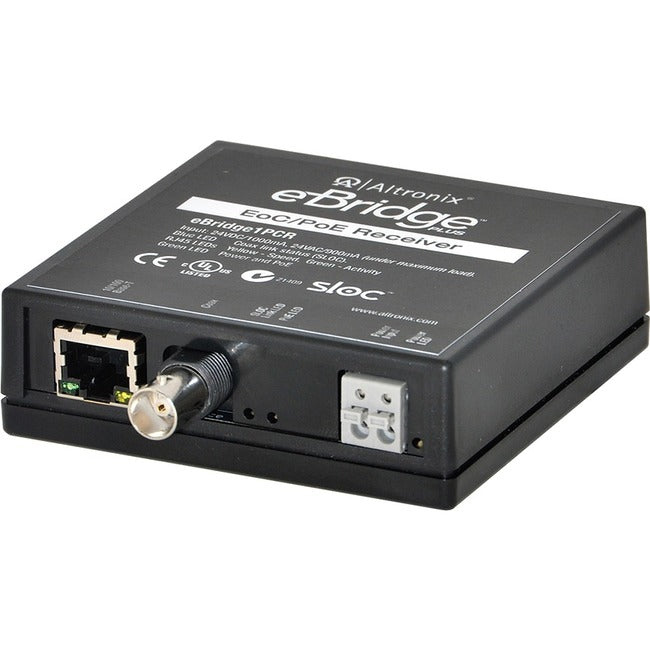

Altronix IP and PoE over Coax Receiver
The eBridge1PCR is CAT5 to Coax cable Ethernet Receiver that deliver data and power over the coax cable in a PoE compliant format. It sends power over the coax to the eBridge1PCT transmitter under PoE protocol. The eBridge1PCR will not deliver power to non-compliant devices, thus avoiding damage to improperly connected non-PoE cameras. This plug and play unit facilitates system upgrades from analog to IP cameras/devices utilizing existing legacy Coax and eliminating the costs and labor associated with installing new network cabling. In addition, data transmission and power over the Coax is possible up to 1500 ft. in comparison to 100m (328 ft.) Ethernet maximum distance. A maximum range from head end to the PoE camera/device is 610m (2000 ft.), taking into consideration that up to 100m (328 ft.) of structured cable may be deployed at each end.
- Attach multiple devices together or expand the number of devices connected to your existing network by using 2 transceiver/media converter
- Supports coaxial cable for laboratory and industrial environment requiring up to 500 meter coverage and low bandwidth
- With 10/100Base-TX technology get up to 100Mbps data transfer rate over twisted pair cable
- Can be placed on Desktop surface for standalone installation
Product Type: Transceiver/Media Converter
Environmentally Friendly: Yes
Environmental Certification: RoHS
Country Of Origin: United States
Brand Name: Altronix
Form Factor: Desktop
Manufacturer: Altronix Corporation
Product Model: EBRIDGE1PCR
Product Name: IP and PoE over Coax Receiver
Product Line: eBridge
Manufacturer Part Number: EBRIDGE1PCR
Manufacturer Website Address: http://www.altronix.com
Limited Warranty: Lifetime
Weight (Approximate): 4.40 oz
