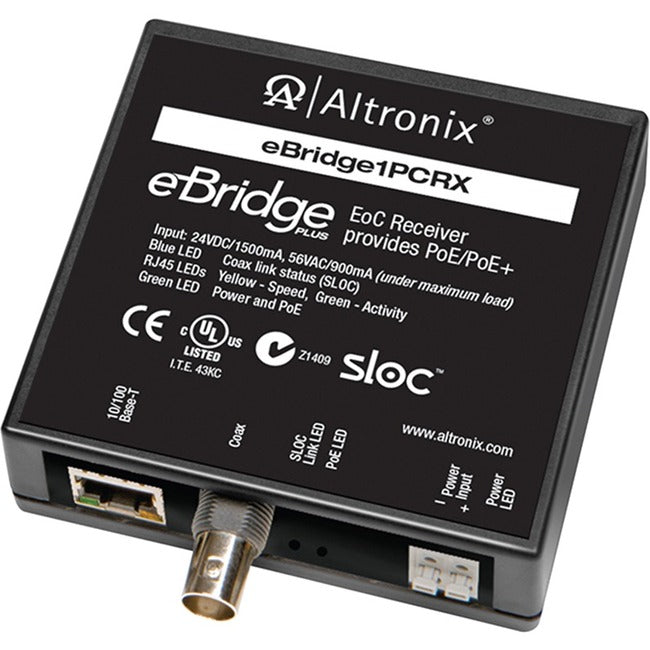

Altronix eBridge1PCRX - IP over Coax Receiver
The eBridge1PCRX is CAT5 to Coax cable Ethernet Receiver that deliver data and power over the coax cable in a PoE compliant format. It sends power over the coax to the eBridge transceiver under PoE protocol. The eBridge1PCRX will not deliver power to non-compliant devices, thus avoiding damage to improperly connected non-PoE cameras. This plug and play unit facilitates system upgrades from analog to IP cameras/devices utilizing existing legacy Coax and eliminating the costs and labor associated with installing new network cabling. In addition, data transmission and power over the Coax is possible up to 1500 ft. in comparison to 100m (328 ft.) Ethernet maximum distance. A maximum range from head end to the PoE camera/
device is 610m (2000 ft.), taking into consideration that up to 100m (328 ft.) of structured cable may be deployed at each end.
- Supports IP video/data/PoE or PoE+ over existing coax cable up to 1,500 ft.
- UL and cUL listed, CE approved.
- Ethernet/PoE or PoE+ over coax receiver module.
Product Type: Transceiver/Media Converter
Country Of Origin: United States
Brand Name: Altronix
Form Factor: Desktop
Manufacturer: Altronix Corporation
Product Model: eBridge1PCRX
Product Name: eBridge1PCRX - IP over Coax Receiver
Product Line: eBridge
Manufacturer Part Number: EBRIDGE1PCRX
Manufacturer Website Address: http://www.altronix.com
Packaged Quantity: 1
Weight (Approximate): 5.09 oz
