Jabsco Vented Loop Solenoid Valve f/37010 Series Toilet

Vented Loop Solenoid Valve for 37010 Series Toilet

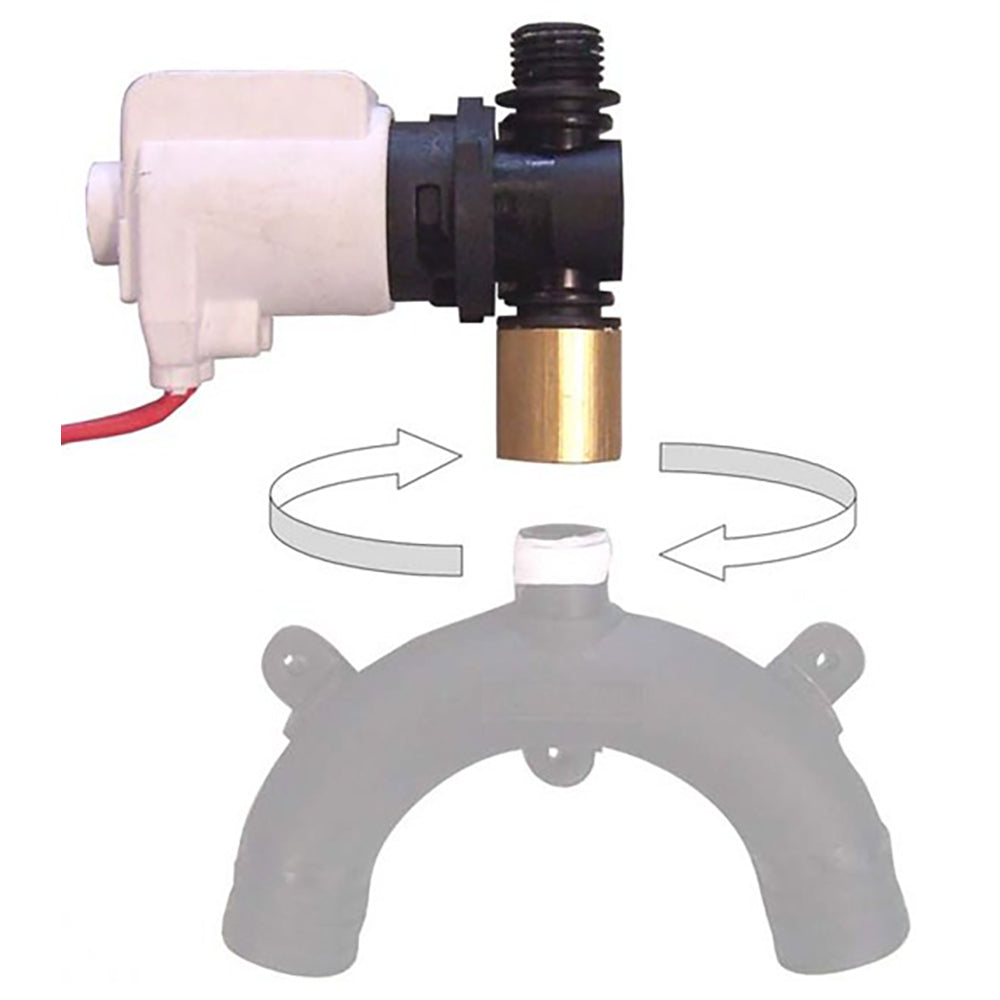

When installing a vented loop in the inlet hose, it is recommended that a Vented Loop Solenoid Valve (37068-2000) is connected to the vent air inlet to ensure maximum electric toilet performance and prime-ability. Connect the brass port of the valve (remove plastic filter, if installed) with the air inlet of the vented loop. Wire the solenoid valve in parallel with the toilet motor by connecting one side of the solenoid to the toilet flush switch and the other side to battery ground.

.

Installation Guide

View (pdf)
