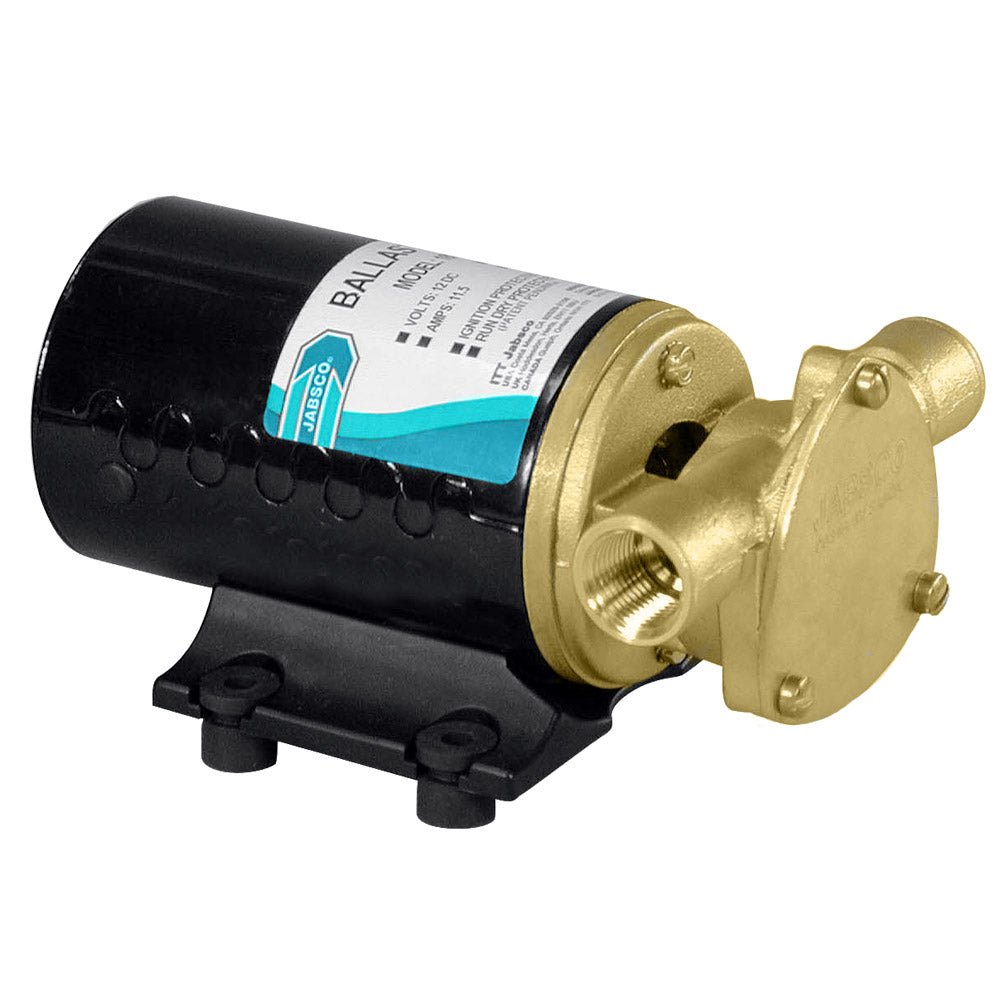

Jabsco Wakeboard Ballast Puppy w/Reversing Switch - 12V

Ballast Pump

Today's Wakeboard and Ski tow boats need to be able to take on water ballast to modify their wake formation. A development of our tried and tested Puppy Pumps lets these specialist craft rapidly take on and dump ballast, while modern electronics guard against dry running damage to the impeller

The choice of motor boat builders for ski and wakeboard ballast systems.

• Includes Run-Dry Protection Device

• 9 GPM (34 LPM) flow rate

• Approximately 80 pounds of water ballast per minute

• Self-priming to 3'

• Reversible pump both fills and empties ballast tanks

• Reversing switch

• Ignition protected

Ports

• 1" (25mm) hose barb external

• 1/2" NPT internal

.

Owners Manual

View (pdf)
