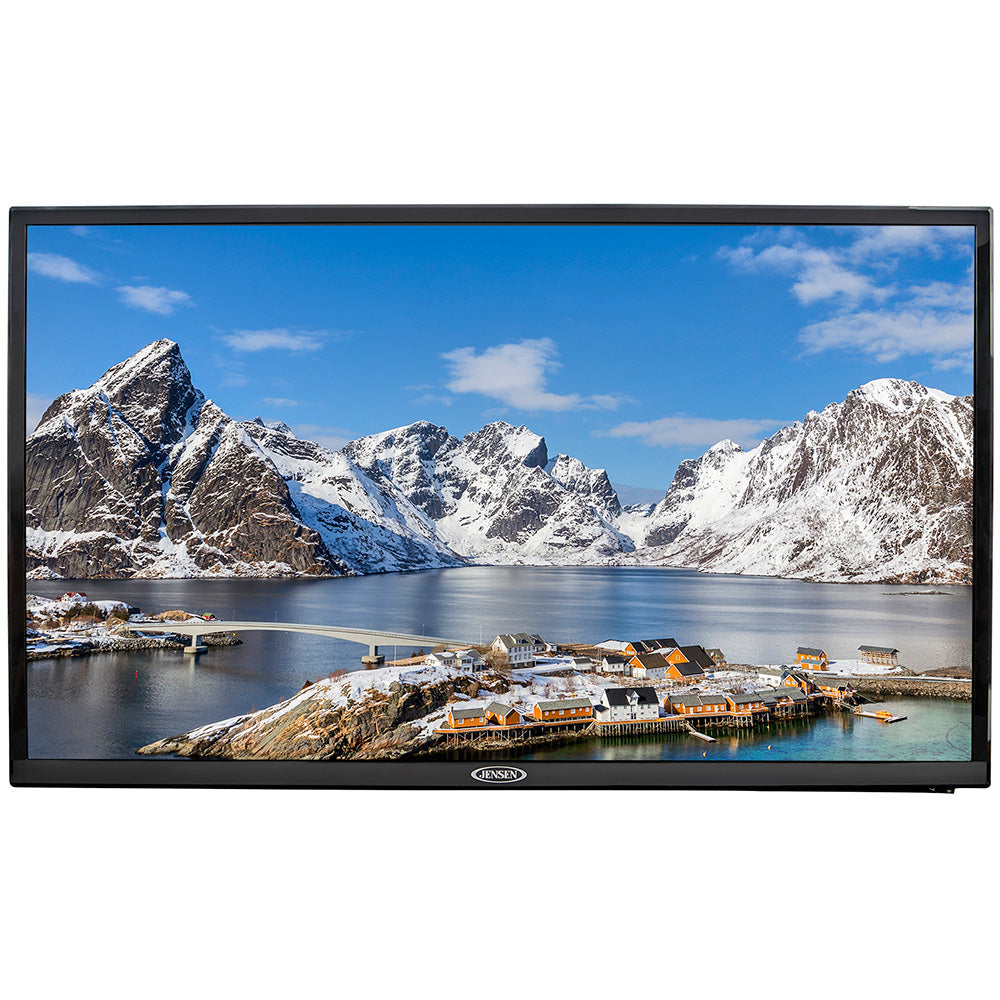

32" Smart TV
JENSEN has designed this lightweight, energy-efficient 12-volt DC television perfect for cabin entertainment. All JENSEN TVs are built for mobile use with conformal-coated circuit boards and reinforced mounting points.
Features:
- DC power
- White LED illumination
- High-performance LCD panel
- Integrated HDTV (ATSC) tuner
- 1366 x 768 resolution
- 16.7 million colors
- ARC/CEC function through HDMI1
- VESA 100mm x 100mm mounting pattern
- IR remote control included
Inputs/Outputs:
- Composite video input (NTSC/PAL compatible)
- RF input
- USB inputs x 2
- HDMI inputs x 2
- RJ45 LAN input
- Optical output
- Headphone output (3.5 mm)
Specifications:
- Power System: DC 12 V
- Power Consumption: 230mA stand by / 5.05A max
- Operating Temperature Range: -4 degrees F to 149 degrees F / -20 degrees C to 65 degrees C
- Storage Temperature Range: -22 degrees F to 158 degrees F / -30 degrees C to 70 degrees C
- Maximum Relative Humidity: 85%
- Overall Dimensions (W x H x D): 28.8 x 17.1 x 3.2 inch (without stand)
- Product Weight (unpackaged): 7.7 lbs
- Regulatory Certification(s): FCC, ETL, FCC ID
Performance Specifications:
- Video / Display System: NTSC/ATSC/PAL
- Video Input Signal (Composite): 1Vp-p @ 75 ohms
- Audio Output: 2 x 10W @ 4 Ohm
LCD Specifications:
- Diagonal Size: 31.5 in.
- Resolution: 1366 x 768
- Brightness: 200 nit
- Contrast Ratio: 3000: 1
- Display Format: 16:9
- Response Time: 8.5 ms
View Angles:
- Top: 89 degrees
- Bottom: 89 degrees
- Left: 89 degrees
- Right: 89 degrees
