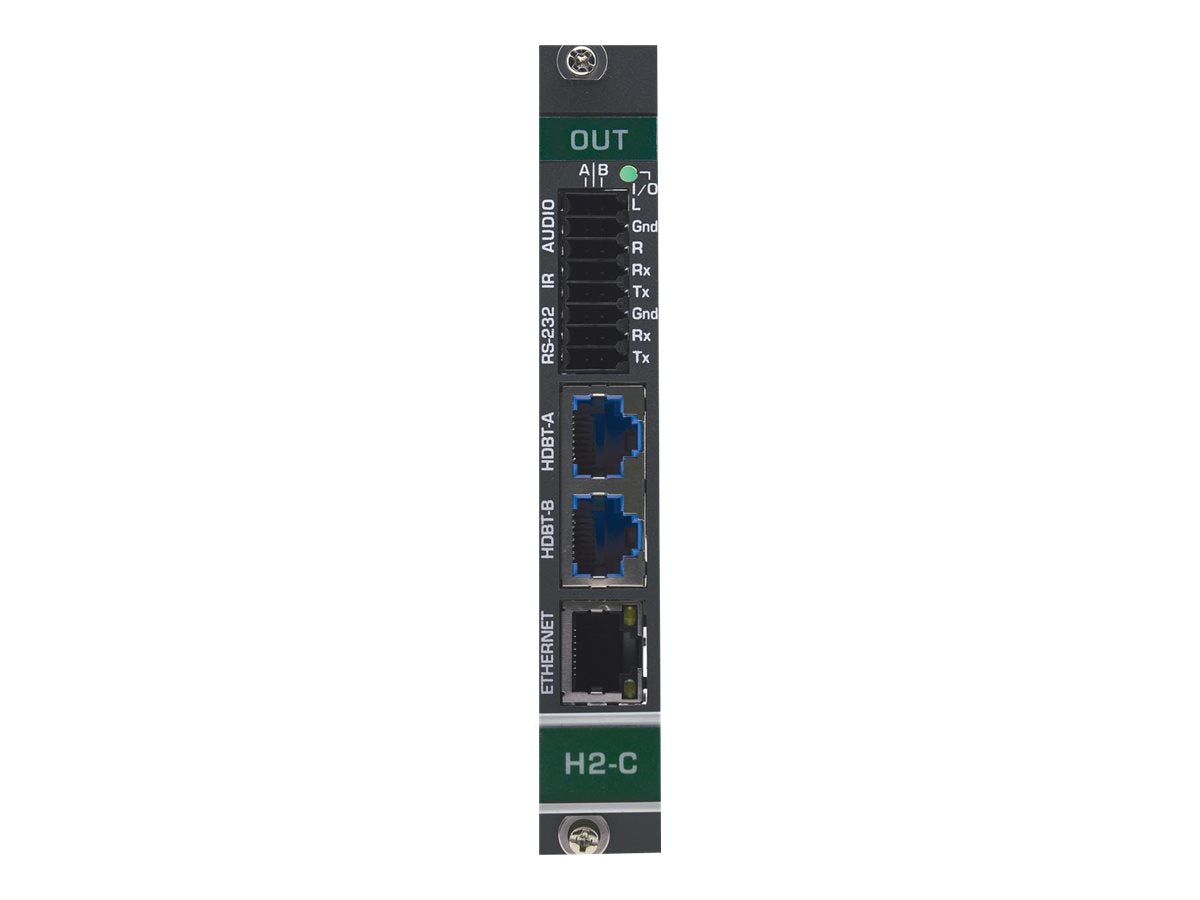

Kramer DTAxrC2-OUT2-F34 - Audio embedder/disembedder / PoE provider / HDBaseT output card
DTAxrC2-OUT2-F34 is a two-channel, 4K at 60Hz (4:4:4), CSC, HDMI, analog audio, bidirectional RS-232, Ethernet, and IR over HDBaseT twisted pair transmitter card for compatible Kramer Modular Multi-Format Digital Matrix Switchers. DTAxrC2-OUT2-F34 outputs two extended-reach HDBaseT signals with selectable embedded/de-embedded analog audio, bidirectional RS-232, IR, and Ethernet from the chassis to the line.
- Maximum data rate: 18Gbps (6Gbps per graphics channel), 10Gbps CSC over CAT cable
- Maximum resolution: 4K at 60Hz (4:4:4)
- Analog audio embedding/de-embedding or ARC: on the same jack
- HDBaseT technology: HDTV compatible, HDCP 2.2/1.4 compliant
- Ethernet extension: Ethernet interface data flows in both directions, allowing extension of up to 100Mbps Ethernet connectivity for LAN communication and device control
- Bidirectional RS-232 extension: serial interface data flows in both directions, allowing data transmission and device control
- Bidirectional infrared extension: IR interface data flows in both directions, allowing remote control of peripheral devices located at either end of the extended line
- 3D pass-through
- PoE (Power over Ethernet) enabled
