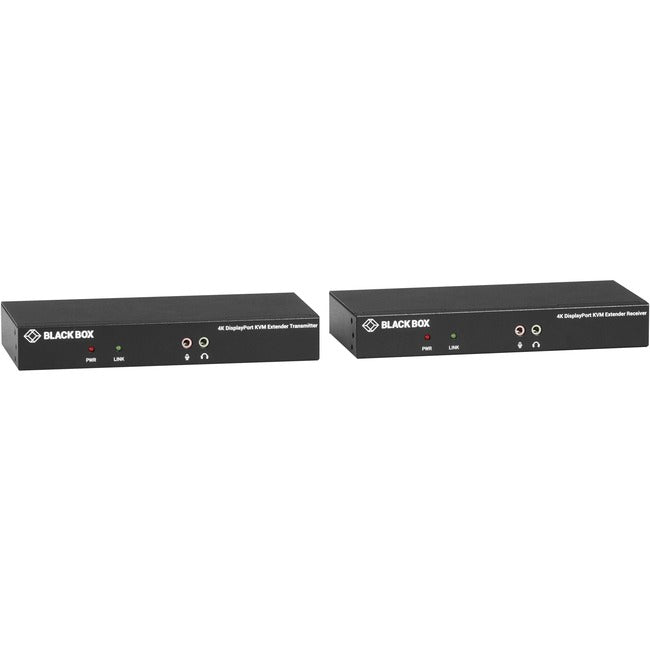

Black Box KVXLCDPF-100 KVM Extender
The KVX Single Head KVM Extender lets you control a server or computer over a single-mode or multimode cable at distances of up to 10 km (depending on the SFP used, fiber type, and fiber bandwidth). This extender also supports 4K video. PC connection cables are included with this product, making it a solution that is ready to use right out of the box.
You can use your existing keyboard, mouse, and monitor to access both the server room and your office computer, saving space and avoiding the need for a dedicated remote console. KVX is the perfect low-cost solution for transportation control centers, medical facilities, industrial warehouses, and extended workstations.
KVX Single Head is equipped with an RS-232 serial channel that connects to a serial terminal or to serial devices, such as touchscreens and barcode scanners. It eliminates the need for traveling back and forth between the local computer and remote console, making it an efficient and flexible solution.
KVX Series Extenders also includes local video allowing access to an additional monitor at the Transmitter side. Perfect for any situation that requires monitoring of connected PCs.
KVX Series Extenders are TAA compliant and backed by free lifetime technical support.
KVX Series Extenders are a perfect fit for cost-conscious users in search of a feature-rich solution allowing them to operate servers or PCs from remote locations. Or, customers who require control of systems that are physically inaccessible, placed in secure locations, or in otherwise harsh environments. This can include command and control operations, server management, distribution monitoring, or utilities process control centers.
- Supports displayport local video output
- Remote access up to 100 meter
- Supports DisplayPort UHD video resolution up to 3840x2160 at 30Hz
- Transparent USB 2.0 extension supports HID devices, mass storage devices
- Supports RS-232 peripheral (serial) devices
- Bi-directional audio via speaker/mic connection
- Local video port loopback for monitoring on transmitter (TX) unit
- Supports EDID pass-through
Product Type: KVM Extender
Environmentally Friendly: Yes
Environmental Certification: RoHS
Transmitter Height: 0.83"
Transmitter Width: 3.27"
Transmitter Depth: 7.09"
Receiver Height: 0.83"
Receiver Width: 3.27"
Receiver Depth: 7.09"
Transmitter Weight (Approximate): 13.28 oz
Taa Compliant: Yes
Country Of Origin: Taiwan
Product Series: KVX
Rack Height: 1U
Brand Name: Black Box
Form Factor: Rack-mountable
Manufacturer: Black Box Corporation
Product Model: KVXLCDPF-100
Product Name: KVXLCDPF-100 KVM Extender
Manufacturer Part Number: KVXLCDPF-100
Manufacturer Website Address: http://www.blackbox.com
Package Contents:
- 1 x Transmitter
- 1 x Receiver
- 2 x 5V, 2A Power Supplies (includes US, EU, UK plug types)
- 1 x DisplayPort Cable, M/M 1.2m (4 ft.)
- 1 x USB Type A to B Cable, M/M 1.8m (6 ft.)
- 1 x 3.5mm Dual Audio / Mic Cable, M/M 1.8m (6 ft.)
- 2 x Deskmounting brackets (with screws)
Limited Warranty: 2 Year
