Description

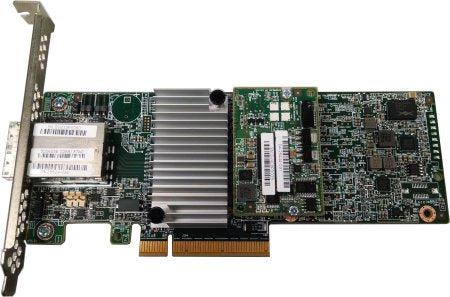

ServeRAID M5225-2GB SAS/SATA Controller
Lenovo 00AE938. Supported storage drive interfaces: SAS, Serial ATA, Host interface: PCI Express. Data transfer rate: 12000 Gbit/s, Internal memory: 2048 MB, Internal memory type: DDR3. Processor family: LSI. Compatible operating systems: Microsoft Windows Server 2008 R2 Microsoft Windows Server 2012 Microsoft Windows Server 2012 R2.... Width: 68 mm, Depth: 170 mm, Height: 17 mm
The ServeRAID M5225-2GB SAS/SATA Controller is a 12 Gb SAS RAID controller with two external connectors to connect to SAS expansion enclosures. The adapter is part of the ServeRAID M Series family, which offers a complete server storage solution that consists of RAID controllers, cache/flash modules, energy packs, and software feature upgrades in an ultra-flexible offerings structure. These products are optimized to deliver performance that is demanded by the ever-growing I/O requirements of today's enterprises. The M5225-2GB is a small form factor PCIe RAID adapter for external storage, and it shares a common set of ServeRAID M Series Features on Demand (FoD) upgrades that are available for the entire family.
General Information
Manufacturer
Lenovo Group Limited
Manufacturer Part Number
00AE938
Manufacturer Website Address
http://www.lenovo.com/us/en/
Brand Name
Lenovo
Product Name
ServeRAID M5225-2GB SAS/SATA Controller
Product Type
SAS Controller
UPC
883436545990
Height
0.7"
Width
2.7"
Depth
6.7"
Weight (Approximate)
4.09 oz
Miscellaneous
Package Contents
ServeRAID M5225-2GB SAS/SATA Controller
Full-height (3U) Bracket and 2 GB Flash/Cache Module
