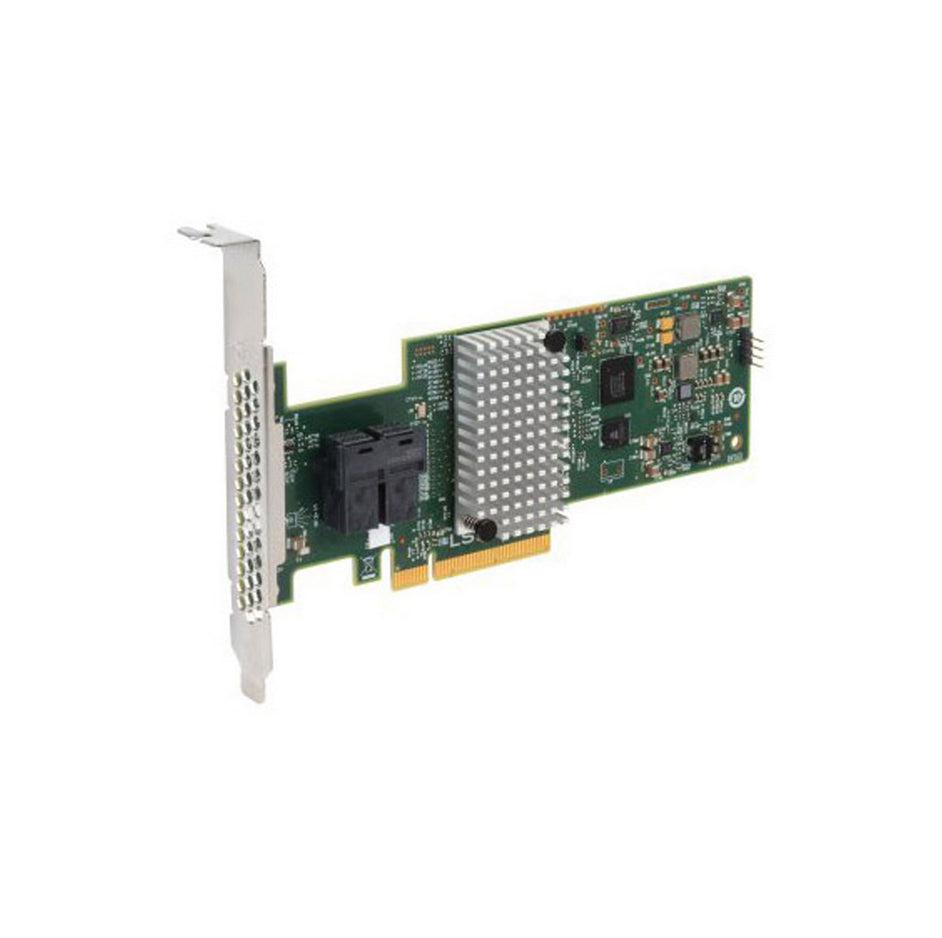

Lenovo 47C8675 Interface Cards/Adapter Internal Sas, Sata

N2215 SAS/SATA Host Bus Adapter

Lenovo 47C8675. Host interface: PCIe, Output interface: SAS,SATA, Expansion card standard: PCIe 3.0. Product colour: Multicolour, Certification: UL cUL IEC60950 EMC FCC TUV CE VCCI BSMI C-tick KC. Width: 68.8 mm, Depth: 169.7 mm, Height: 16.8 mm. Package width: 143 mm, Package depth: 50.8 mm, Package height: 238.3 mm

The N2215 SAS/SATA HBA for IBM System x is an ideal solution for System x servers requiring high-speed internal storage connectivity. This eight-port host bus adapter supports direct attachment to SAS and SATA internal HDDs and SSDs.

With a low-profile form-factor design, the N2215 SAS/SATA HBA for IBM System x offers two (x4) internal mini-SAS HD connectors. The N2215 is based on LSI's 3008 12 Gbps SAS I/O controller and provides eight lanes of 12 Gbps SAS and eight lanes of PCIe 3.0 to eliminate data bottlenecks and provide high data-transfer rates for medium- to large-capacity server storage applications.
