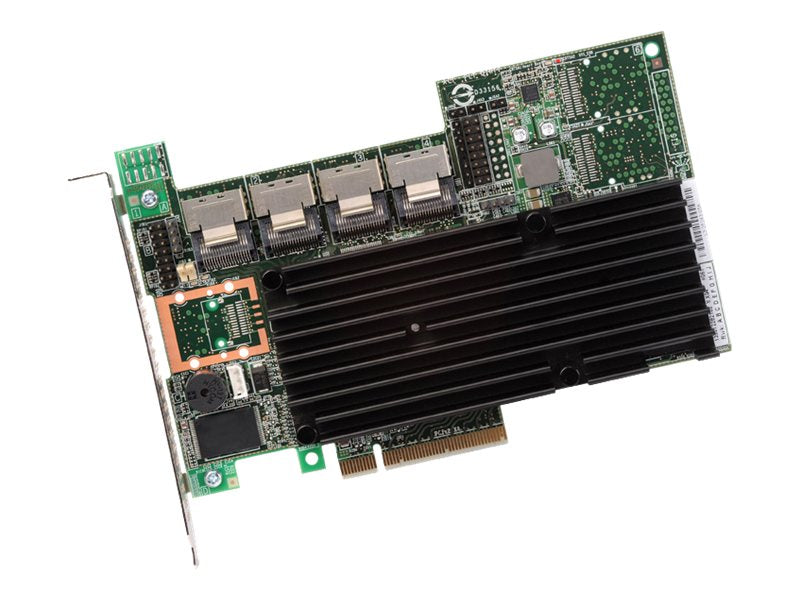

LSI MegaRAID SAS 9260-16i - Storage controller (RAID) - 16 Channel - SATA 6Gb/s / SAS 6Gb/s - RAID 0, 1, 5, 6, 10, 50, 60 - PCIe 2.0 x8
- Half length full height, 16 internal port 6Gb/s SATA+SAS RAID card with x8 PCIe 2.0 host interface and a full complement of data protection features
- All the performance, reliability and flexibility of LSI RAID technology with support for 3Gb/s legacy and 6Gb/s SATA, SAS or SSD devices
- Designed to drive performance in high density, large-capacity security, imaging and digital content applications
The MegaRAID SAS 9260-16i, ideal for inside-the-box connectivity, supports up to 128 SATA and SAS drives for growing storage requirements.
-
Next-generation high port SATA+SAS RAID
LSI MegaRAID SATA+SAS controllers provide a new level of reliability, availability, and performance to businesses that are facing storage challenges driven by unprecedented data growth. The sixteen-port MegaRAID SAS 9260-16i provides a new level of performance and data protection for businesses that are facing storage challenges driven by unprecedented data growth. Customers can connect up to 16 drives inside the server via direct connection or passive backplanes. Also, by utilizing SAS expander technology, this controller can scale to support up to 128 devices for growing storage requirements. This MegaRAID value line controller, great for inside-the-box connectivity, employs the RAID-on-Chip technology, complies with the PCI Express 2.0 specification.
-
6Gbps SAS performance advantage
With data transfer rates of up to 6Gbps per port, the MegaRAID SAS 9260-16i brings users features and improved performance, while continuing to support all the features of the previous 3Gbps SATA+SAS generation. 6Gbps SAS is designed for backward compatibility with 3Gbps SAS as well as with 6Gbps and 3Gbps SATA hard drives. Regardless of the drive speed, 6Gbps MegaRAID controllers are designed to deliver significant performance improvements in both read and write applications as compared to their 3Gbps predecessors.
