Description

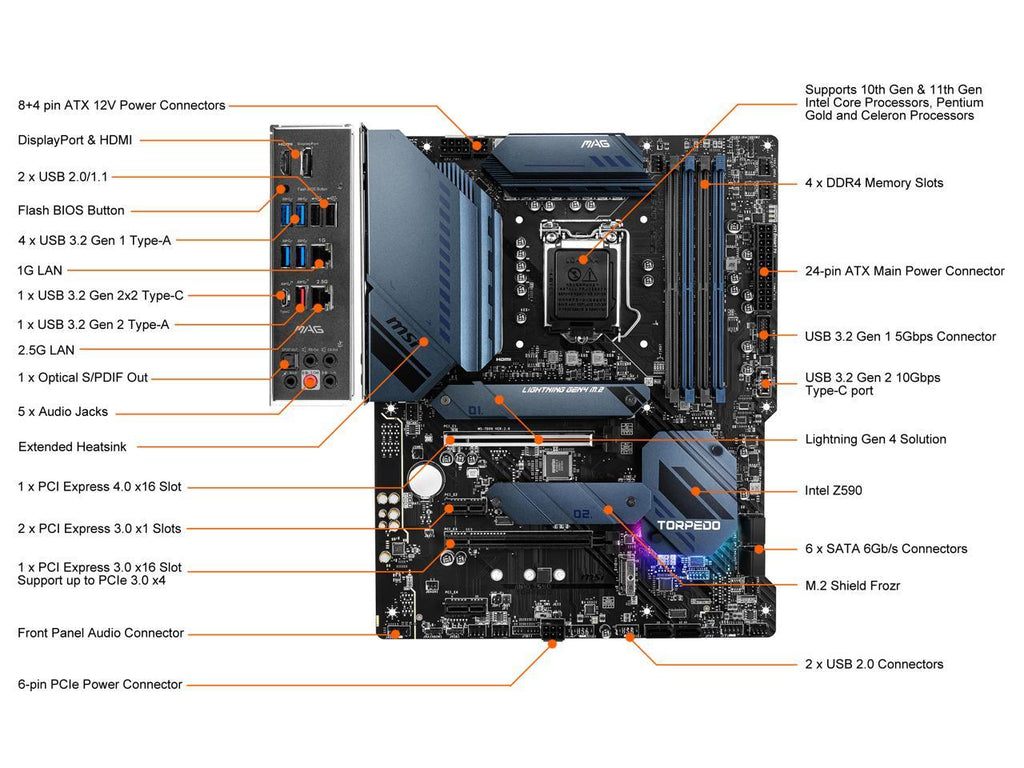

- Intel Z590
- Supports 11th / 10th Gen Intel Core processors
- Supports Intel Pentium Gold / Celeron processors
- DDR4 1R 3200 / 2933 / 2666 / 2133 for 11th Gen Intel CPU (by JEDEC & POR)
- DDR4 1R 2933 / 2666 / 2133 for 10th Gen Intel CPU (by JEDEC & POR)
- Max overclocking frequency:
- 1DPC 1R Max speed up to 5333
- 1DPC 2R Max speed up to 4700+
- 2DPC 1R Max speed up to 4400+
- 2DPC 2R Max speed up to 4000+

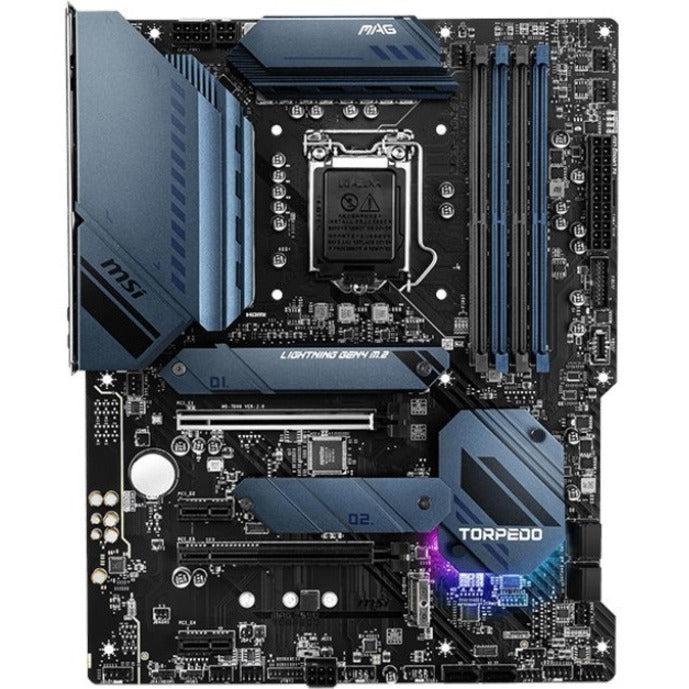

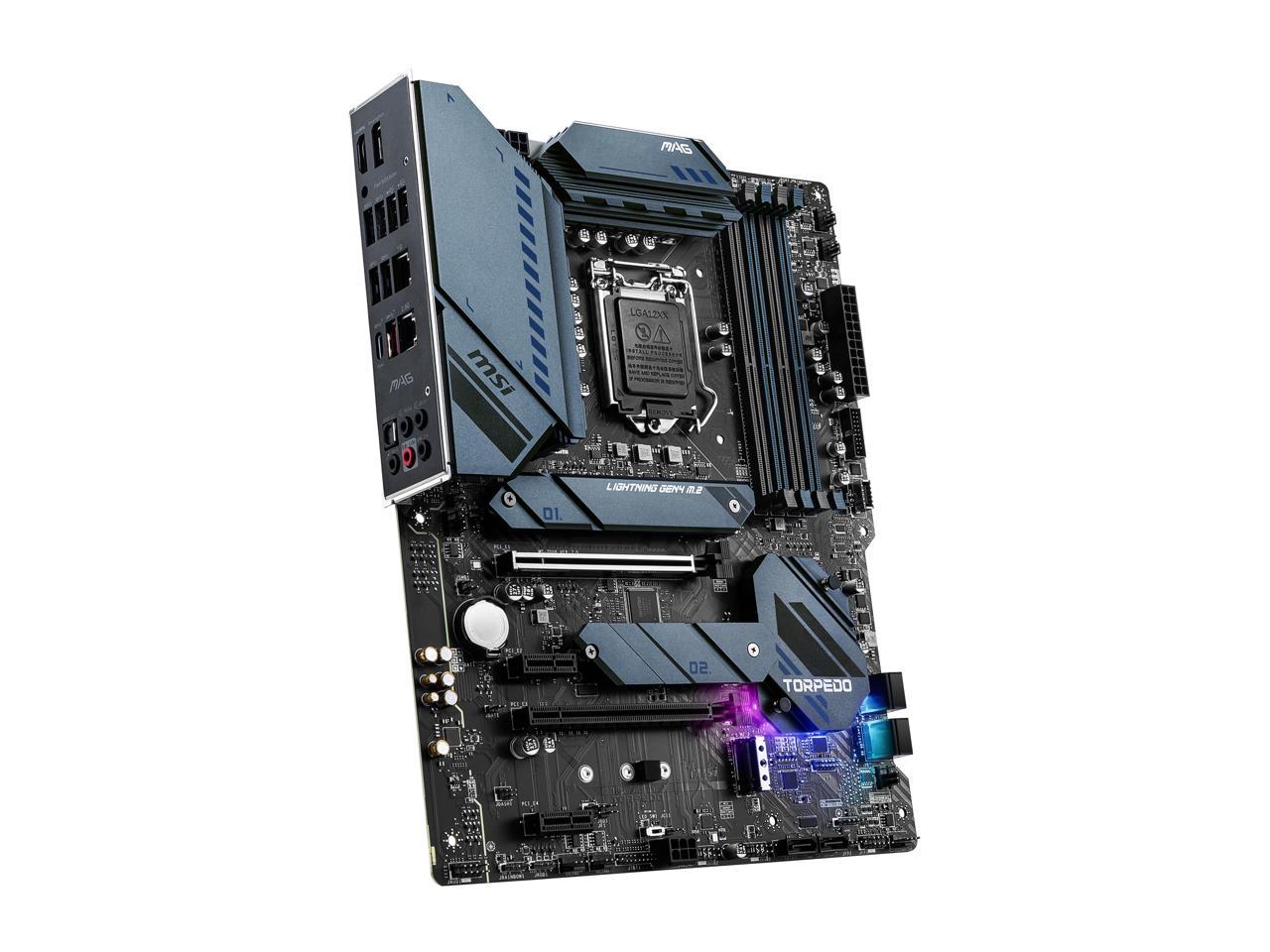

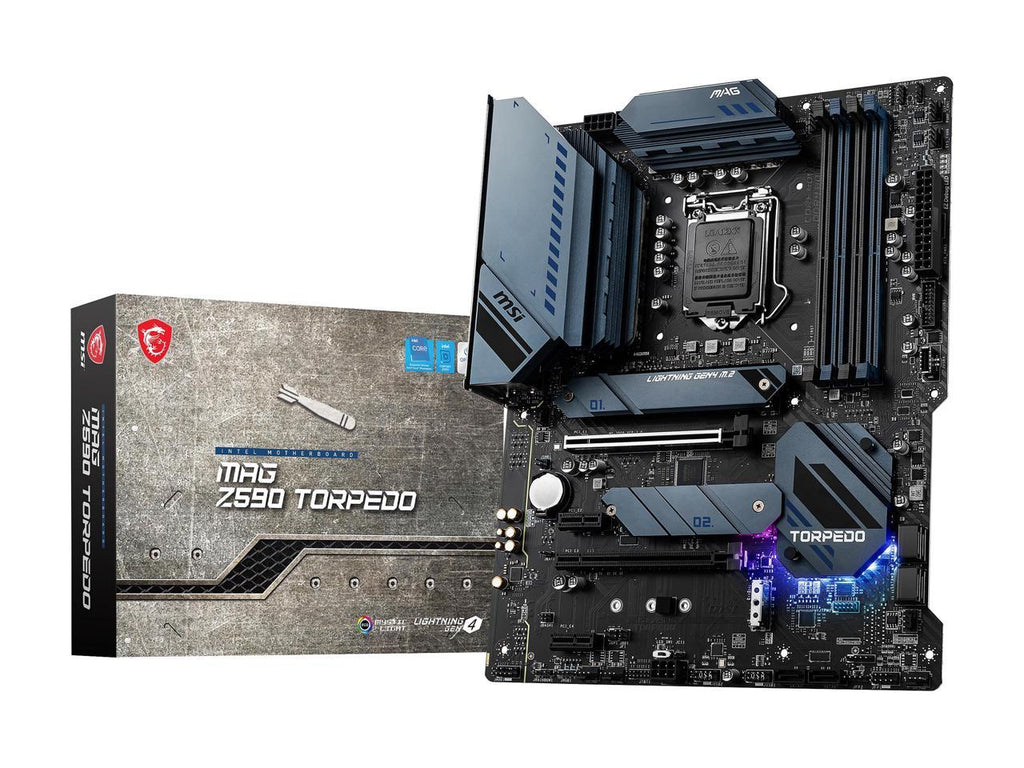

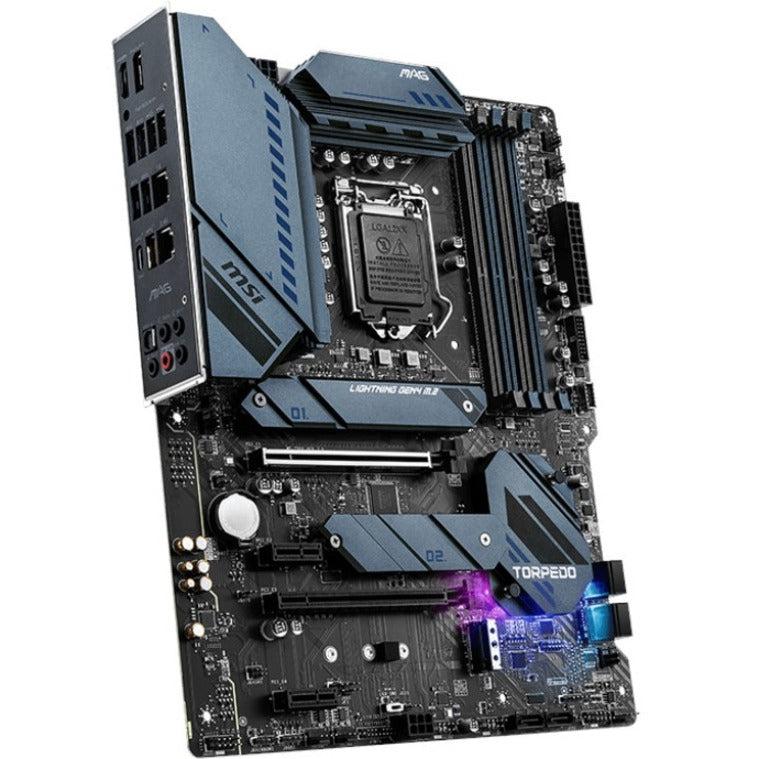

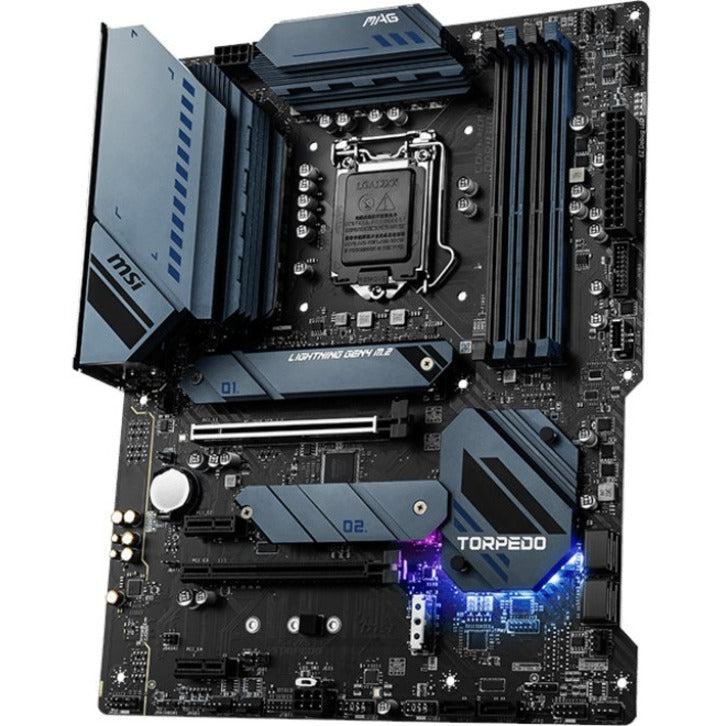

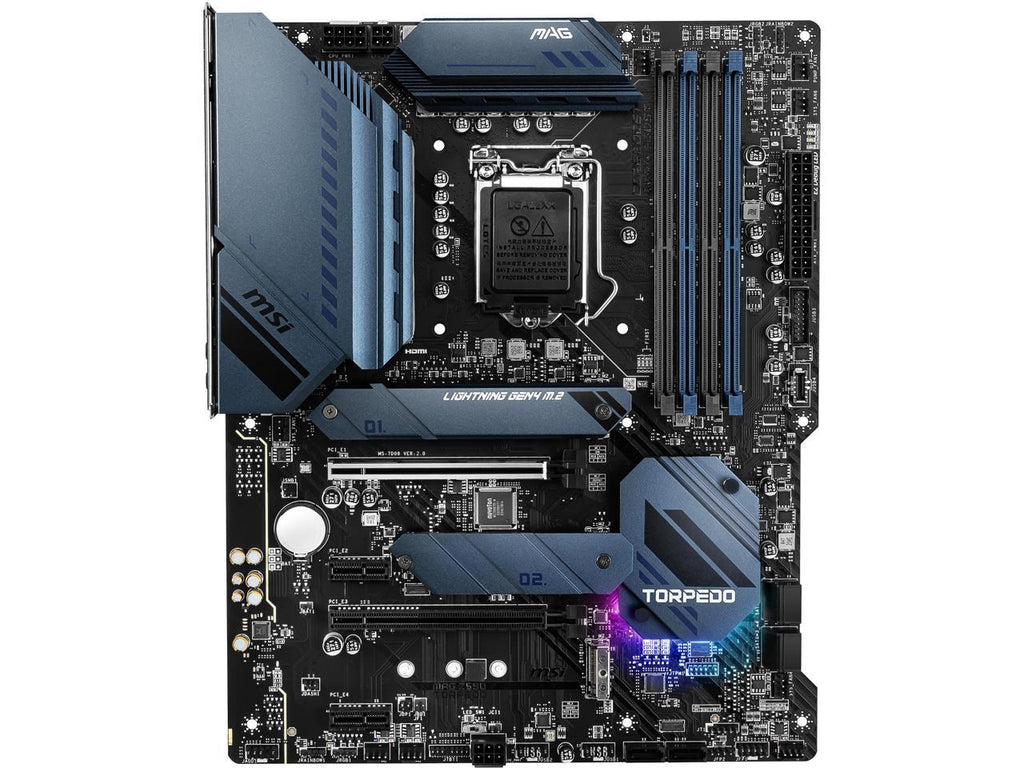

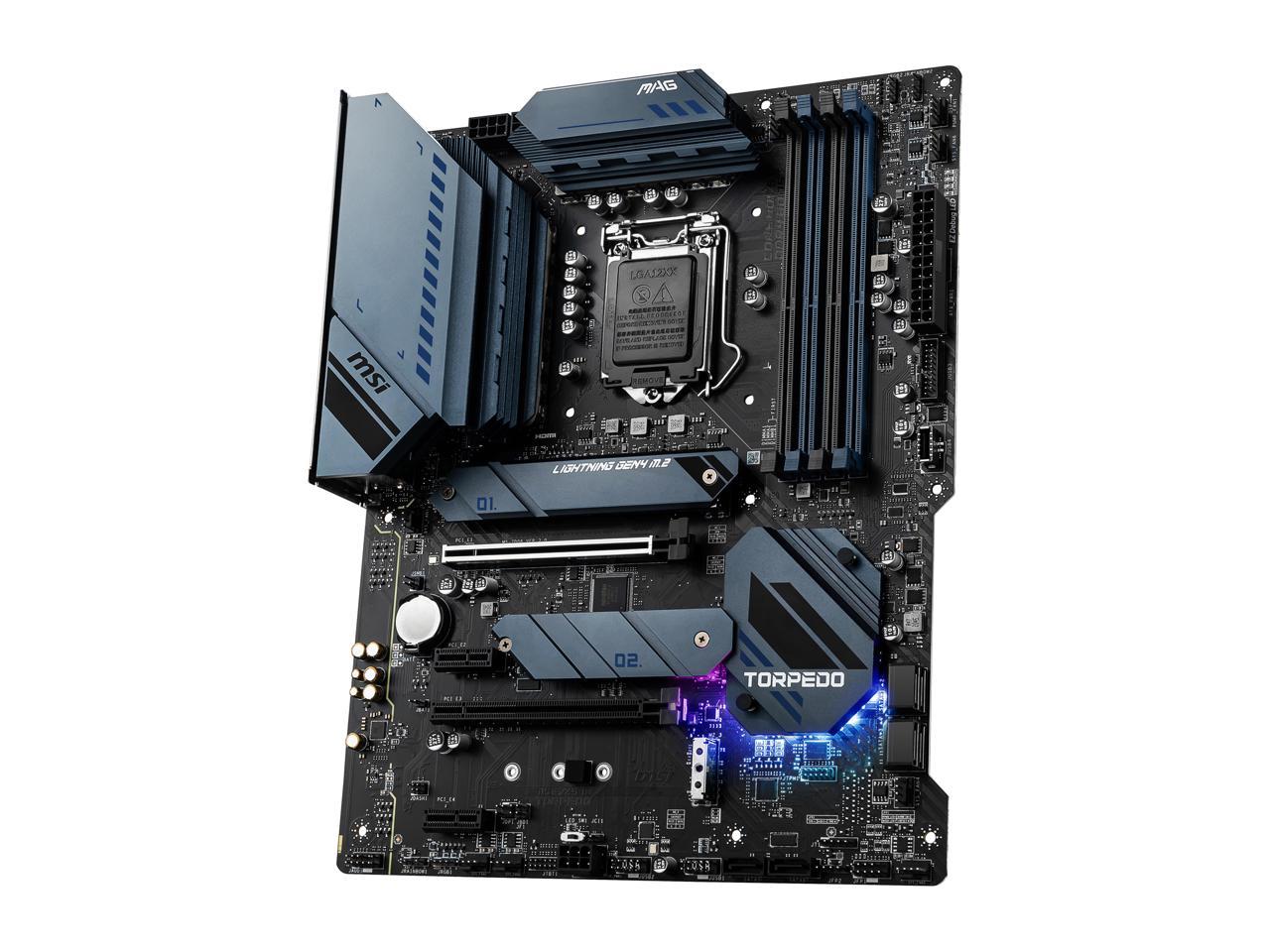

MAG Z590 TORPEDO
EXCLUSIVE FEATURES
Core Boost Technology
An optimized power circuit layout is ready to unleash maximum performance.
6 layer PCB with 2oz Thickened Copper
An enhanced 6 layer PCB material design improves heat dissipation and high-performance capabilities.
Digital PWM
A high quality digital power regulator keeps the system running smoothly under demanding conditions.
PCIe Steel Armor
Reinforced and shielded PCIe slots for strength and stability.
MAG Z590 TORPEDO
PREMIUM THERMAL SOLUTION
Extended Heatsink
Larger heatsink design for cooling and performance.
M.2 Shield Frozr
Sustain maximum high-speed M.2 SSD data transfer with M.2 SHIELD FROZR and prevent SSD thermal throttling.
Pump Fan Support
Control watercooling pump speeds for flowrate and noise control.
Heatsinks with 7W/mK Thermal Pad
7W/mK thermal pad provides better heat transfer to the heatsink.
MAG Z590 TORPEDO
HIGH-SPEED TRANSMISSION
2.5G Plus Gigabit LAN
Onboard 2.5G and Gigabit Ethernet LAN with LAN manager.
Audio Boost 5
ALC4080 Codec with high quality caps for immersive gaming audio.
DDR4 Boost
The memory circuit design has been optimized on a reserved section of the motherboard fully isolated from other circuits.
Lightning Gen 4 Solution
Transfer data lightning fast across Gen 4 PCI-E and M.2 with up to 64GB/s bandwidth.

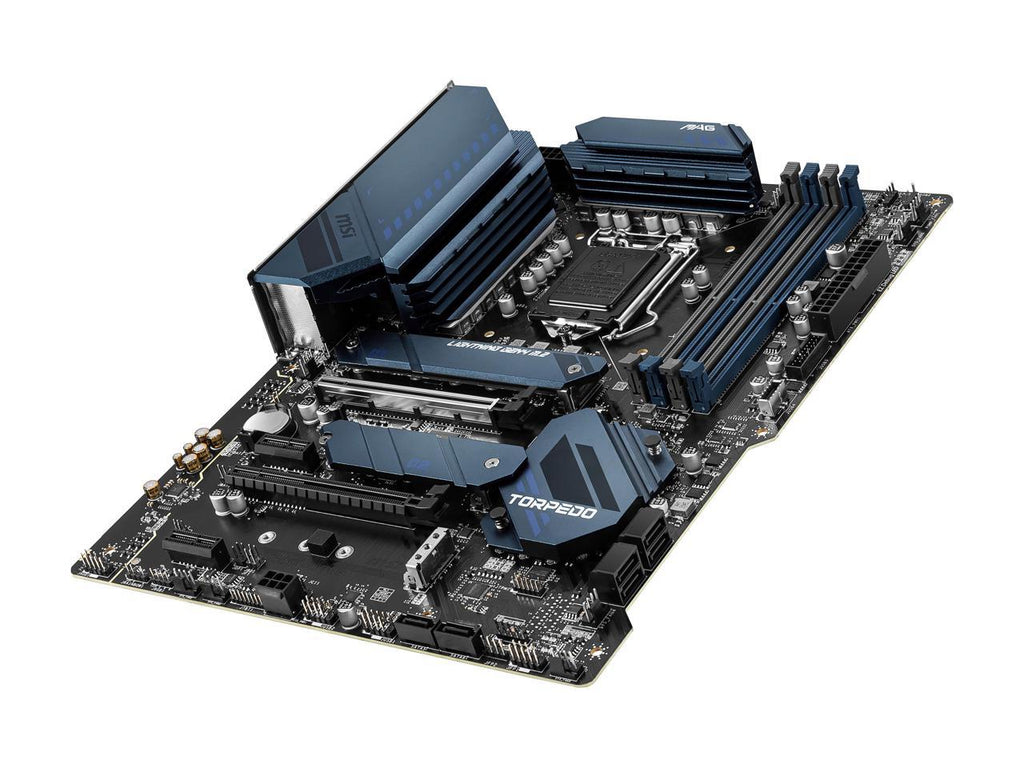

EXTENDED HEATSINK
An all-metal extended heatsink cover enlarges the heat dissipation surface allowing the CPU power system to reliably drive even high-end processors.
DUET RAIL POWER SYSTEM
Unleash the full potential of the processor with a mighty VRM design. Featuring 17x 60A DrMOS and Duet Rail Power System.
CORE BOOST
Core Boost combines a reserved zone of optimized circuits and premium power delivery components to create a highly efficient power system capable of precise current output to the CPU.
LIGHTNING GEN 4 SOLUTION
Strike fast with MSI Lightning Gen 4 PCI-E. Attach ultra fast PCI-E 4.0 devices and enjoy up to 64GB/s unidirectional transfer bandwidth. PCIe 4.0 maintains both backward and forward compatibility with older and newer specifications.
M.2 SHIELD FROZR
The world's fastest SSDs can slow down when they get too hot. M.2 SHIELD FROZR extends the motherboard's heatsink over attached M.2 SSDs to prevent thermal throttling and sustain maximum performance.
DUAL LAN WITH 2.5G LAN
MAG Z590 TORPEDO features high-bandwidth and low-latency 2.5G and Gigabit LAN for demanding creators and power users. Onboard 2.5Gbps connectivity provides incredible data transfer speed faster than ever before. MSI LAN Manager automatically classifies and prioritizes the latency-sensitive for your applications, giving you the best online experience with low latency.

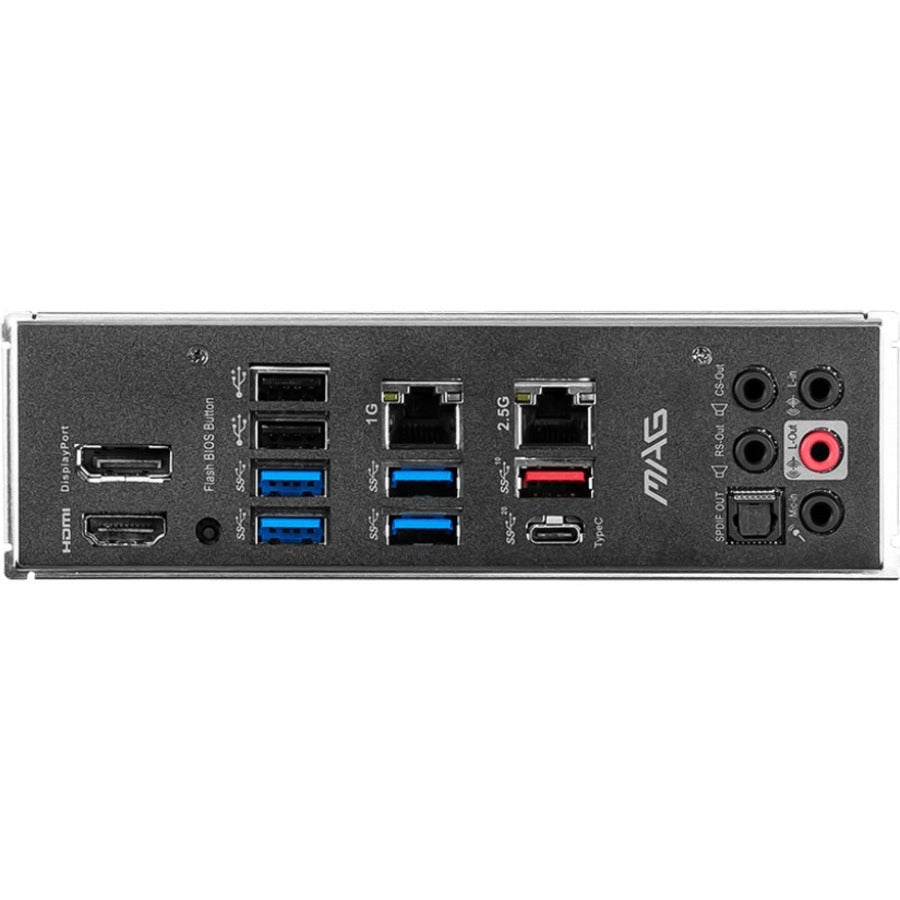

ULTRA-FAST LIGHTNING USB 20G WITH USB 3.2 GEN 2X2
Connect the rear USB Type-C port and quickly move large files including uncompressed video, raw images, and bulky simulation data across USB 3.2 Gen 2x2 with transfer speeds up to 20Gbps.
AMPLIFY YOUR EXPERIENCE WITH AUDIO BOOST 5
Like a dedicated sound card, Audio Boost 5 offers a HD audio processor, dedicated amplifier and high quality audio capacitors all physically isolated from the rest of the motherboard circuitry to ensure the purest audio signal to locate enemies with pin-point accuracy. Powered by ALC 4080 audio processor, this motherboards supports 120dB SNR, 32-bit/384kHz and DSD Super Audio CD playback & recording.
CUSTOMIZE YOUR GAMING RIG
Personalize your PC with RGB LED lighting capable of 16.8 million colors with dynamic effects through the Mystic Light APP.
PCB WITH 2OZ THICKENED COPPER
An enhanced PCB material design with 2oz thickened copper increases conductivity, improving heat dissipation and high-performance reliability.
MULTIPLE GPU SUPPORT AND PCI-E STEEL ARMOR
MAG Z590 TORPEDO supports AMD CrossFire multi GPU technology. PCI-E slot placements provide optimal airflow for graphics card cooling.
General Information
| Manufacturer | MSI |
|---|---|
| Manufacturer Part Number | MAG Z590 TORPEDO |
| Manufacturer Website Address | http://www.msi.com |
| Brand Name | MSI |
| Product Line | MAG |
| Product Model | Z590 TORPEDO |
| Product Name | MAG Z590 TORPEDO Desktop Motherboard |
| Product Type | Desktop Motherboard |
| UPC | 824142242179 |
| Chipset Manufacturer | Intel |
|---|
| HDMI | Yes |
|---|---|
| Total Number of USB Ports | 8 |
| Number of USB 3.2 Gen 1 Ports | 4 |

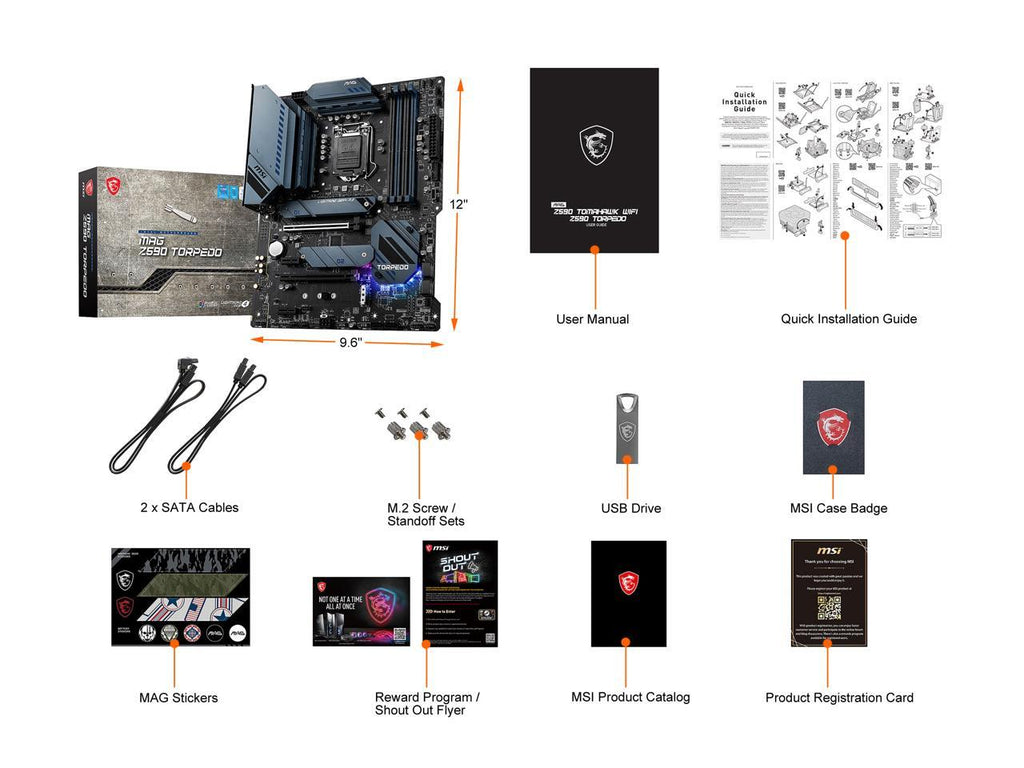

| Width | 12" |
|---|---|
| Depth | 9.6" |
