Description
- AMD B550
- Supports AMD Ryzen 5000 Series / 4000 G-Series / 3000 Series processors *
- * Not compatible with AMD Ryzen 5 3400G & Ryzen 3 3200G.
- DDR4 5100+ / 5000 / 4866 / 4733 / 4600 / 4533 / 4400 / 4266 / 4133 / 4000 / 3866 / 3733 / 3600 / 3466 / 3200 / 3066 / 3000 / 2933 / 2800 / 2667 by A-XMP OC MODE
- DDR4 3200 / 3066 / 3000 / 2933 / 2800 / 2667 / 2400 / 2133 / 1866 by JEDEC
- 1DPC 1R max speed 5100
- 1DPC 2R max speed 3866
- 2DPC 1R max speed 4000
- 2DPC 2R max speed 3600
An optimized power circuit layout is ready to unleash maximum performance.
6 layer PCB improves signal transmission for high performance capabilities across the motherboard.
An enhanced PCB material design with 2oz thickened copper increases conductivity, improving heat dissipation and high-performance reliability.
A selection of the highest quality power delivery components lets the system run reliably even under extreme conditions.
Reinforced and shielded PCIe slots for strength and stability.

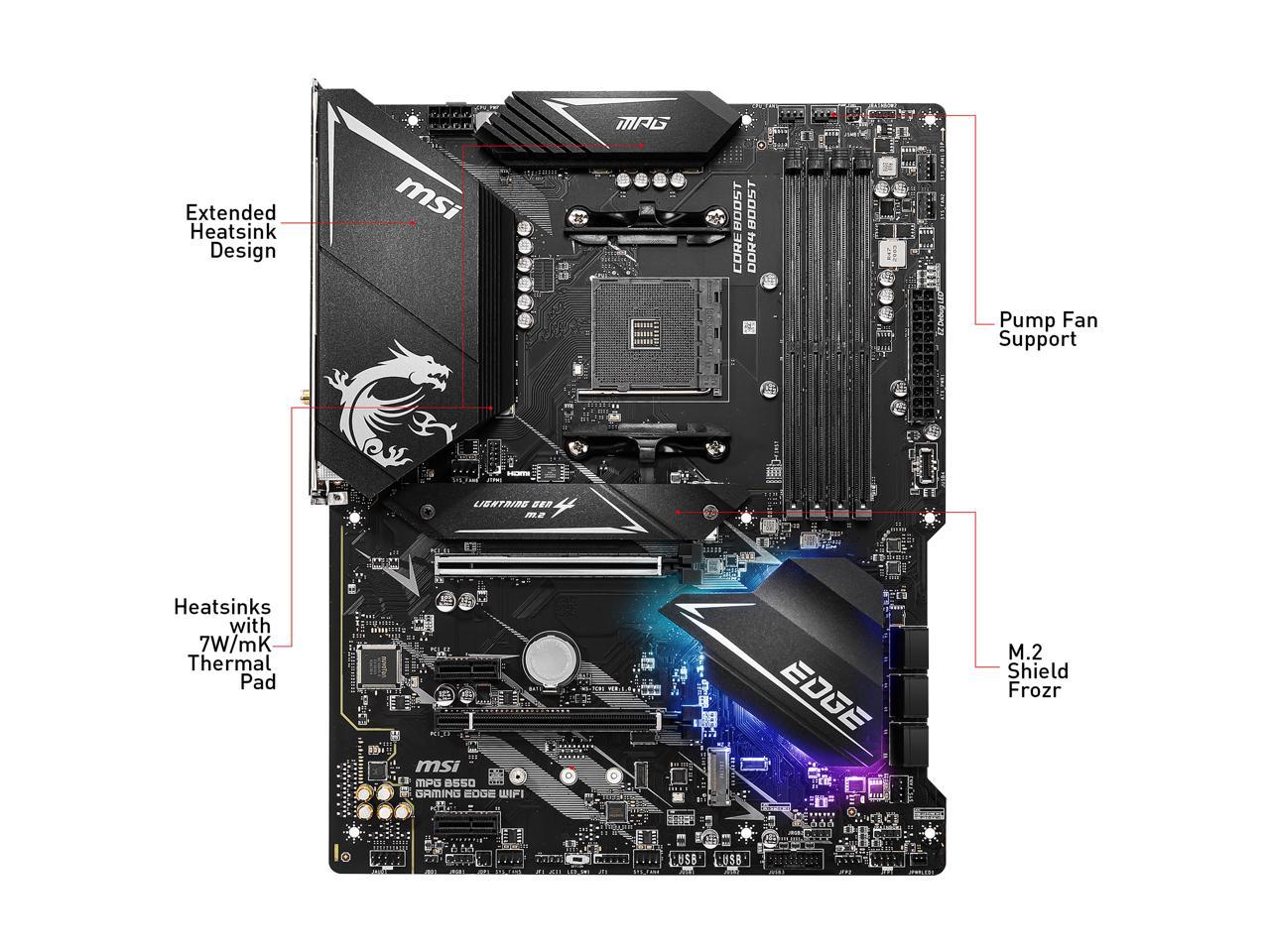

Larger heatsink design for cooling and performance.
7W/mK thermal pad provides better heat transfer to the heatsink.
Control watercooling pump speeds for flowrate and noise control.
Sustain maximum high-speed M.2 SSD data transfer with M.2 SHIELD FROZR and prevent SSD thermal throttling.

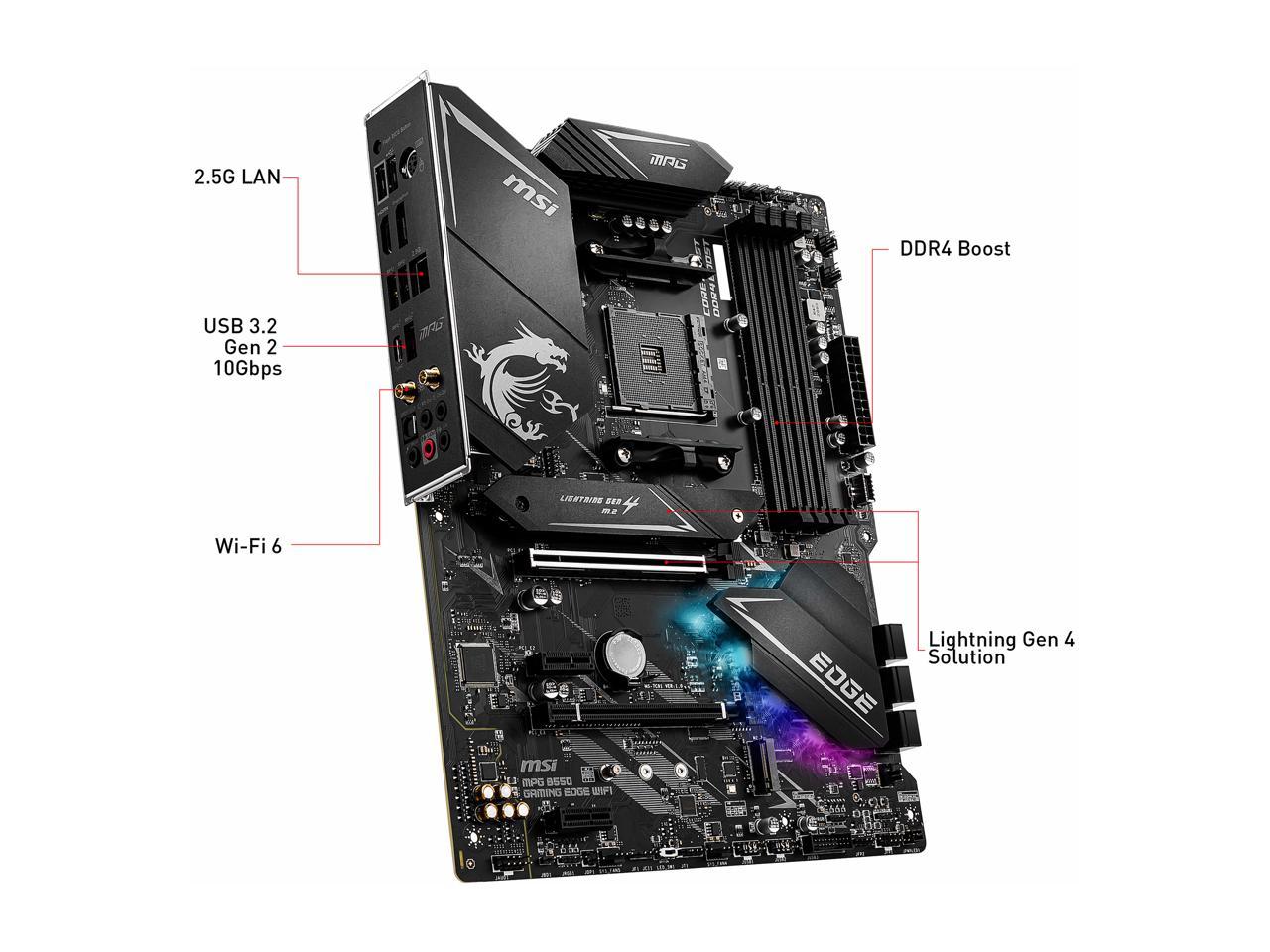

Onboard 2.5 Gigabit Ethernet LAN with gaming LAN manager.
Featuring TURBO USB 3.2 GEN2 10Gbps with reversible Type-C connector.
Featuring the latest wireless solution, delivering speeds up to 2400Mbps and supports MU-MIMO and BSS color technology.
The memory circuit design has been optimized on a reserved section of the motherboard fully isolated from other circuits.
Transfer data lightning fast across Gen 4 PCI-E and M.2 with up to 64GB/s bandwidth.
Strike fast with MSI Lightning Gen 4 PCI-E. Attach ultra fast PCI-E 4.0 devices and enjoy up to 64GB/s unidirectional transfer bandwidth.
Unleash and sustain maximum performance with an aggressive VRM design built to supply stable and steady power delivery.
- 10 phase Duet Rail CPU Power System / Smart Power Stage 60A
- 2 phase SOC Power
- 1 phase APU Power
- Digital PWM IC
An enhanced PCB material design with 2oz thickened copper increases conductivity, improving heat dissipation and high-performance reliability.
Personalize your PC with RGB LED lighting capable of 16.8 million colors with dynamic effects through the Mystic Light APP.
- Customize colors
- Customize effects

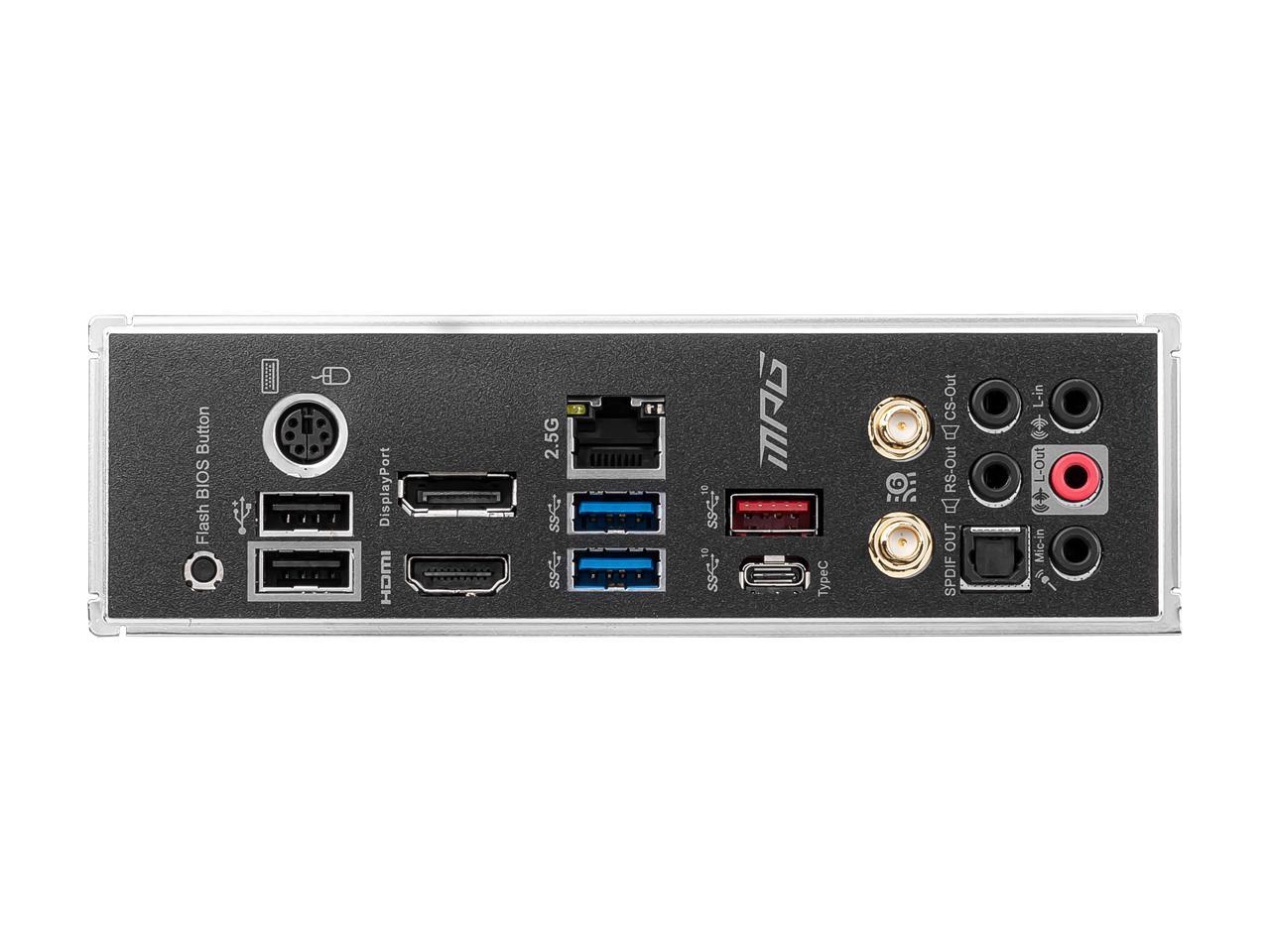

Pre-Installed IO Shielding makes handling the motherboard process easier and safer. The patent-pending design is grounded and protects the IO ports from potential electrostatic discharge damage from the external environment.
Sustain maximum M.2 SSD data transfer with M.2 SHIELD FROZR. Prevent SSD thermal throttling with a heatsink that extends across the motherboard.
MPG B550 GAMING EDGE WIFI features onboard 2.5Gbps Ethernet LAN, for gamers who demand on high-bandwidth and low-latency network connectivity. Prioritize latency-sensitive applications with MSI LAN Manager for a superior online experience.
Connect to a high-speed WIFI 6 network with onboard Wi-Fi 6. OFDMA and two-way MU-MIMO technology optimize data transmission and deliver speeds up to 2.4Gbps.

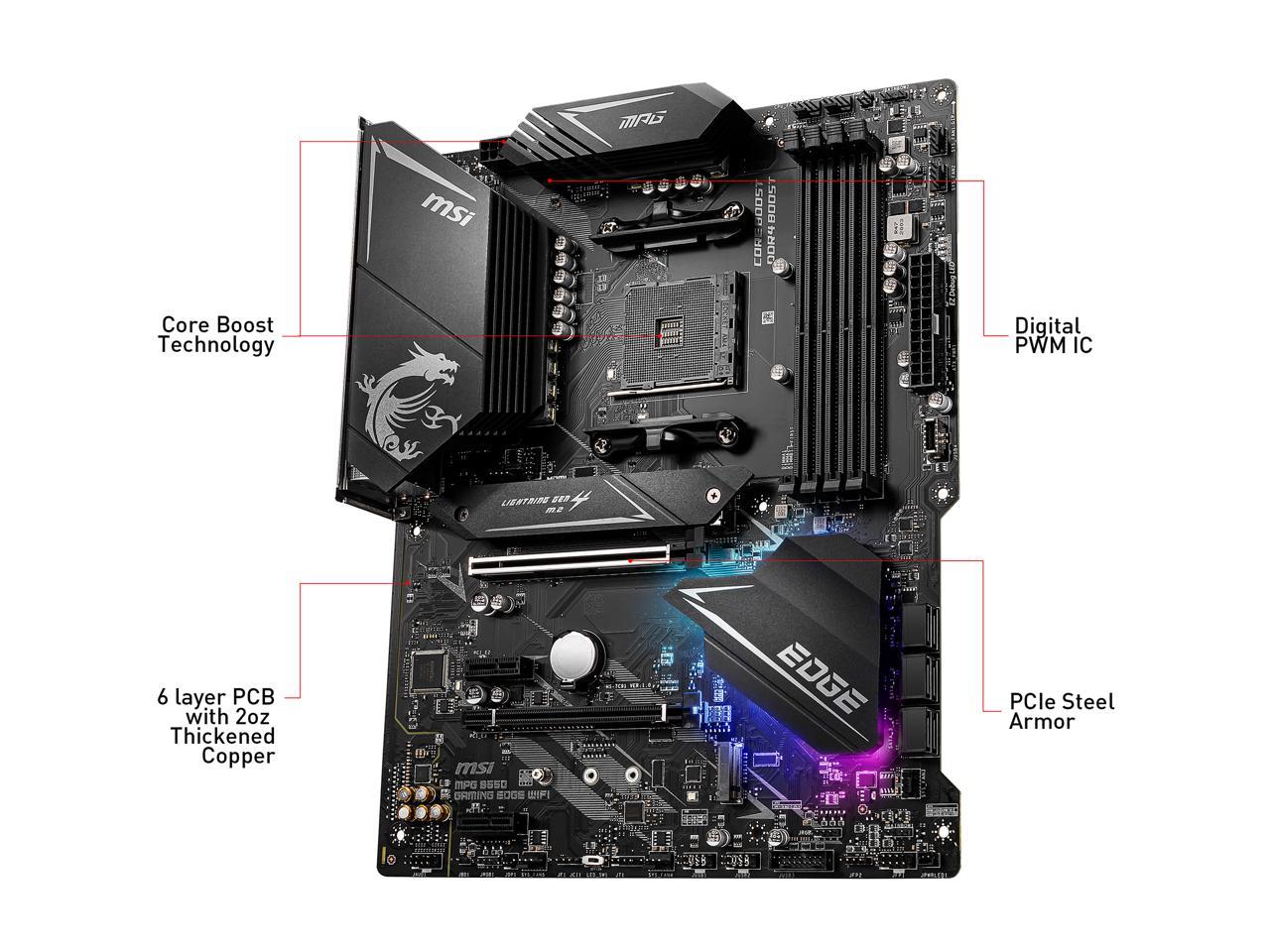

Core Boost combines a reserved zone of optimized circuits and premium power delivery components to create a highly efficient power system capable of precise current output to the CPU.
MSI takes memory stability and performance to the extreme. The memory circuit layout has been optimized for reliability and tested extensively in partnership with major memory manufacturers for compatibility.
MPG B550 GAMING EDGE WIFI supports AMD® CrossFire™ multi GPU technology. PCI-E slot placements provide optimal airflow for graphics card cooling. MSI PCI Express Steel Armor slots are secured to the motherboard with extra solder points and support the weight of heavy graphics cards. When every advantage counts, Steel Armor shields the point of contact from electromagnetic interference.
Like a dedicated sound card, Audio Boost offers a HD audio processor, dedicated amplifier and high quality audio capacitors, all physically isolated from the rest of the motherboard circuitry to ensure the purest audio signal to locate enemies with pin-point accuracy.

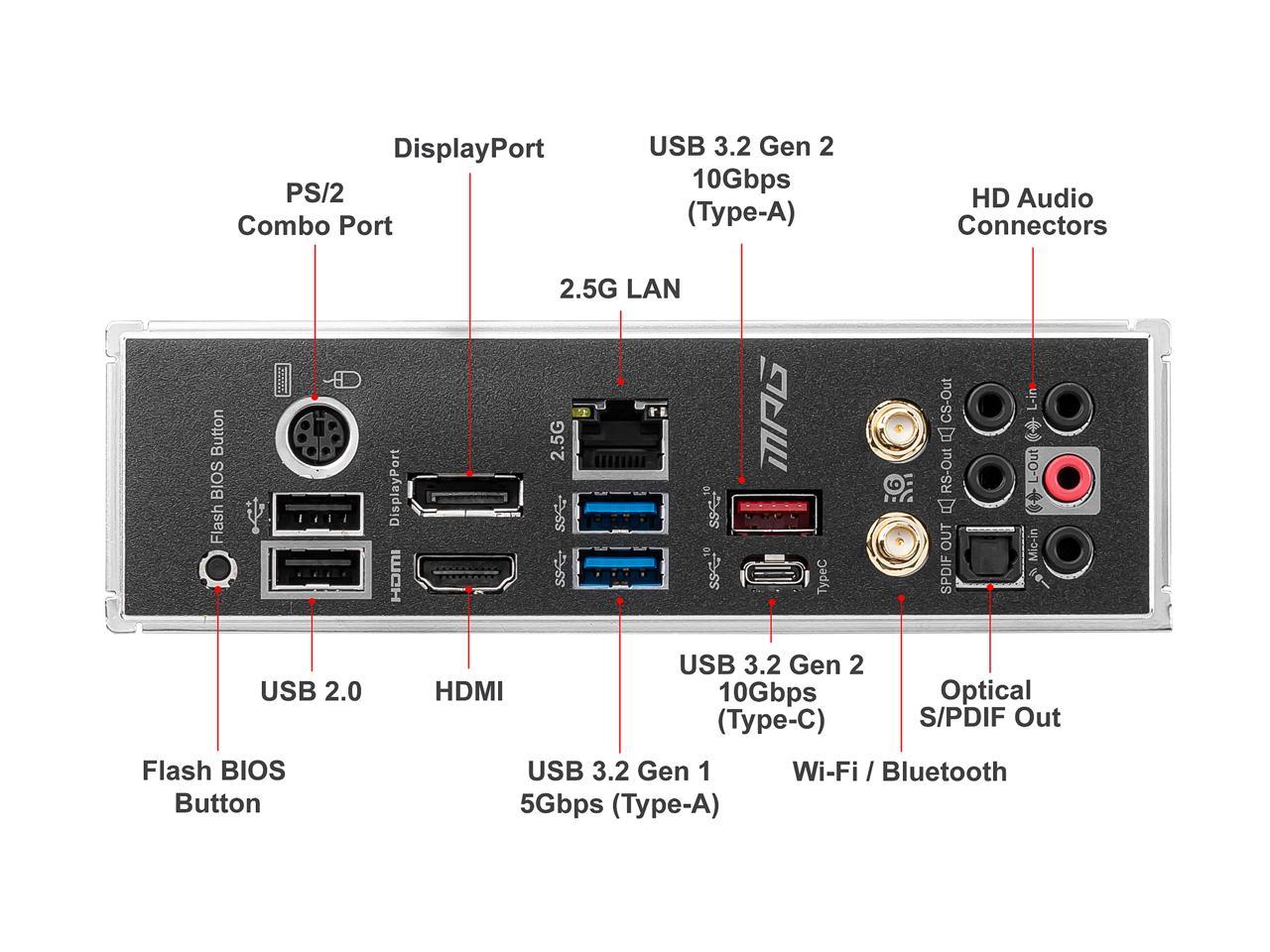

Effortlessly plug in devices with reversible USB Type-C.
A built-in LED switch on the motherboard instantly turns lighting on or off. Personalize your PC with RGB LED lighting capable of 16.8 million colors with dynamic effects through the Mystic Light APP.
General Information
| UPC | 824142217634 |
|---|
