Description
- Intel Z590
- Supports 11th / 10th Gen Intel Core processors
- Supports Intel Pentium Gold / Celeron processors
- DDR4 1R 3200 / 2933 / 2666 / 2133 for 11th Gen Intel CPU (by JEDEC & POR)
- DDR4 1R 2933 / 2666 / 2133 for 10th Gen Intel CPU (by JEDEC & POR)
- Max overclocking frequency:
- 1DPC 1R Max speed up to 5333
- 1DPC 2R Max speed up to 4700+
- 2DPC 1R Max speed up to 4400+
- 2DPC 2R Max speed up to 4000+

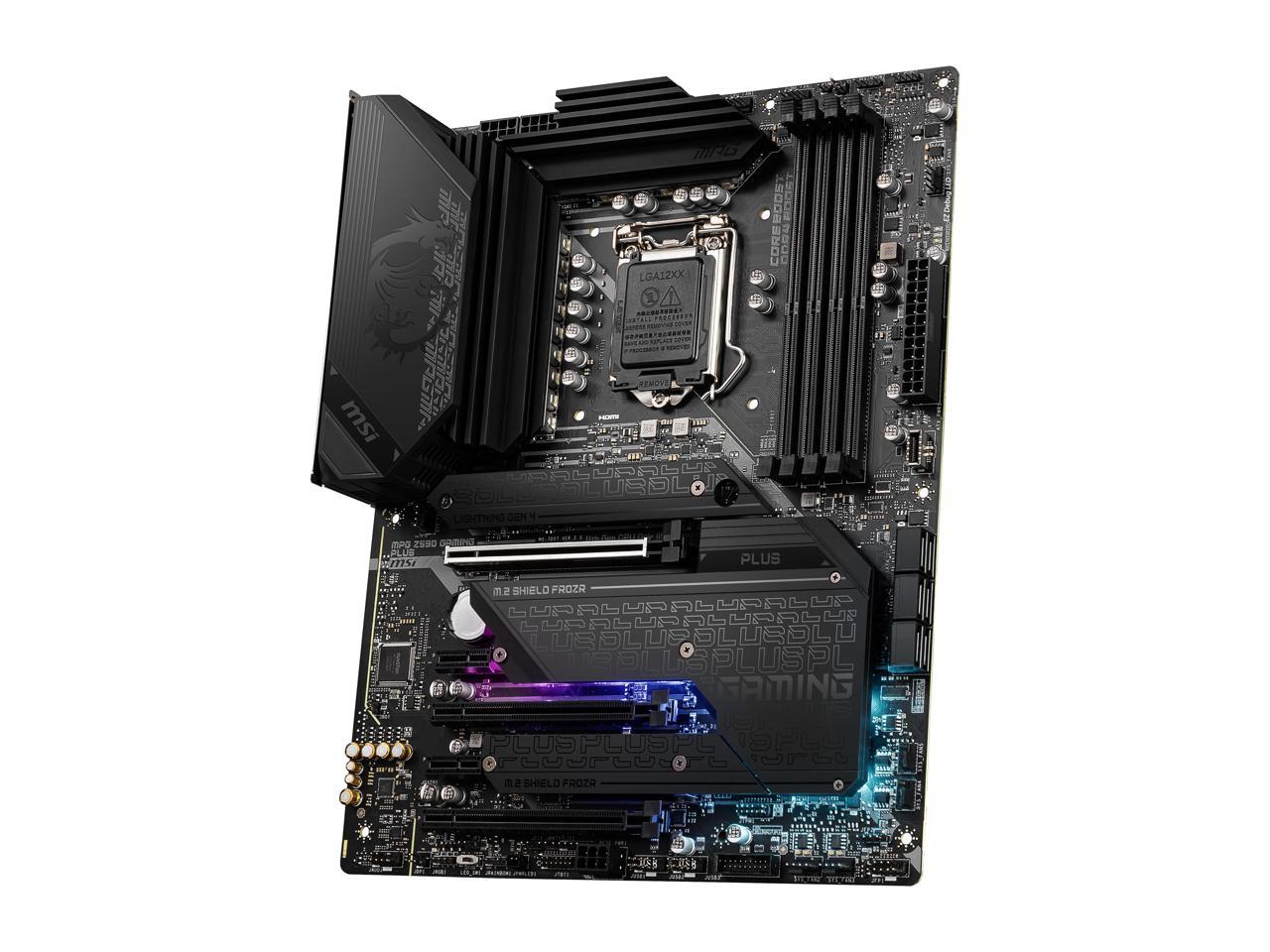

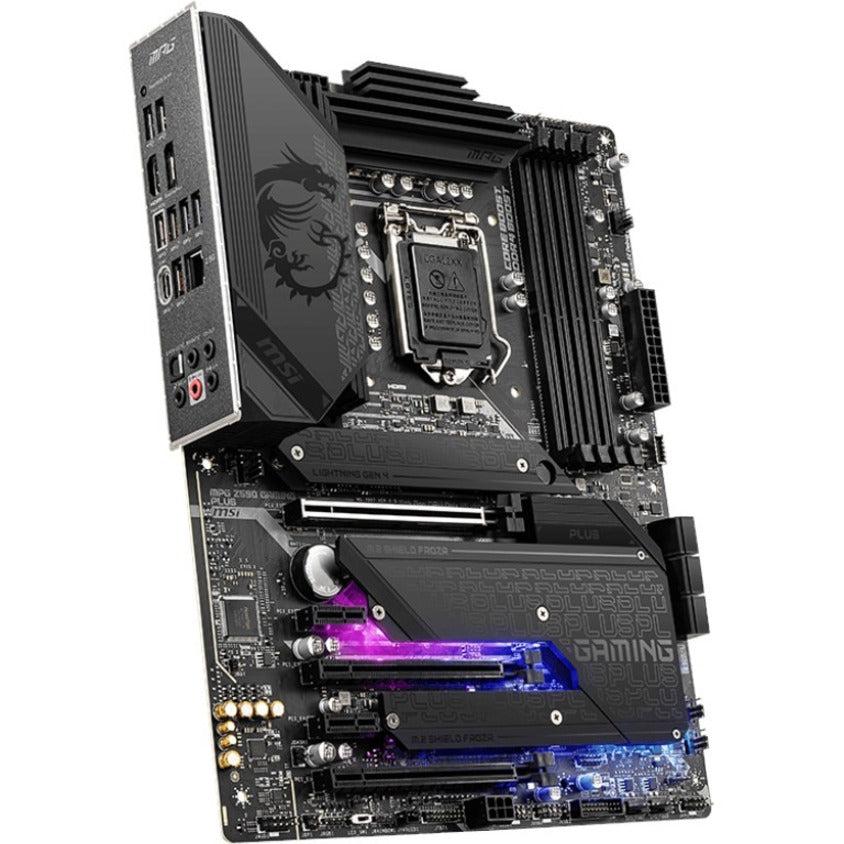

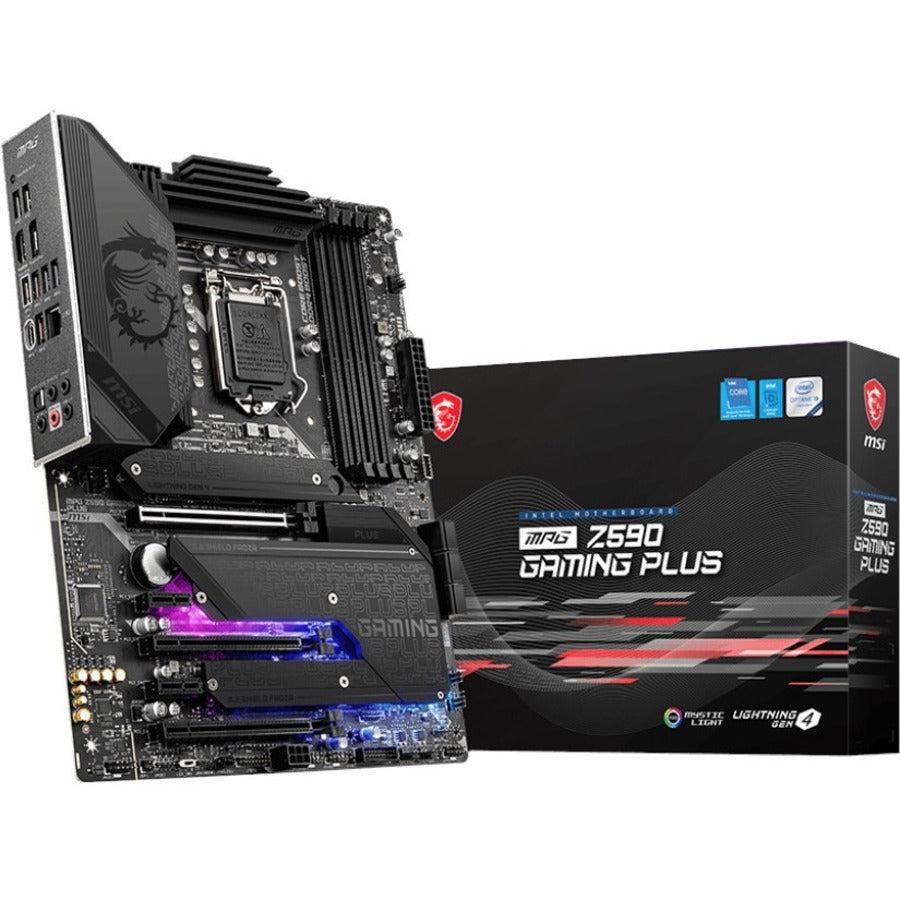

MPG Z590 GAMING PLUS
EXCLUSIVE FEATURES
Core Boost Technology
Dual 8-pin CPU power connectors and optimized power circuits let GODLIKE unleash maximum performance.
6 layer PCB with 2oz Thickened Copper
An enhanced PCB material design improves signal transmission for high performance capabilities across the motherboard.
Audio Boost 5
Isolated audio circuitry with a high quality audio processor & amp for immersive gaming experiences.

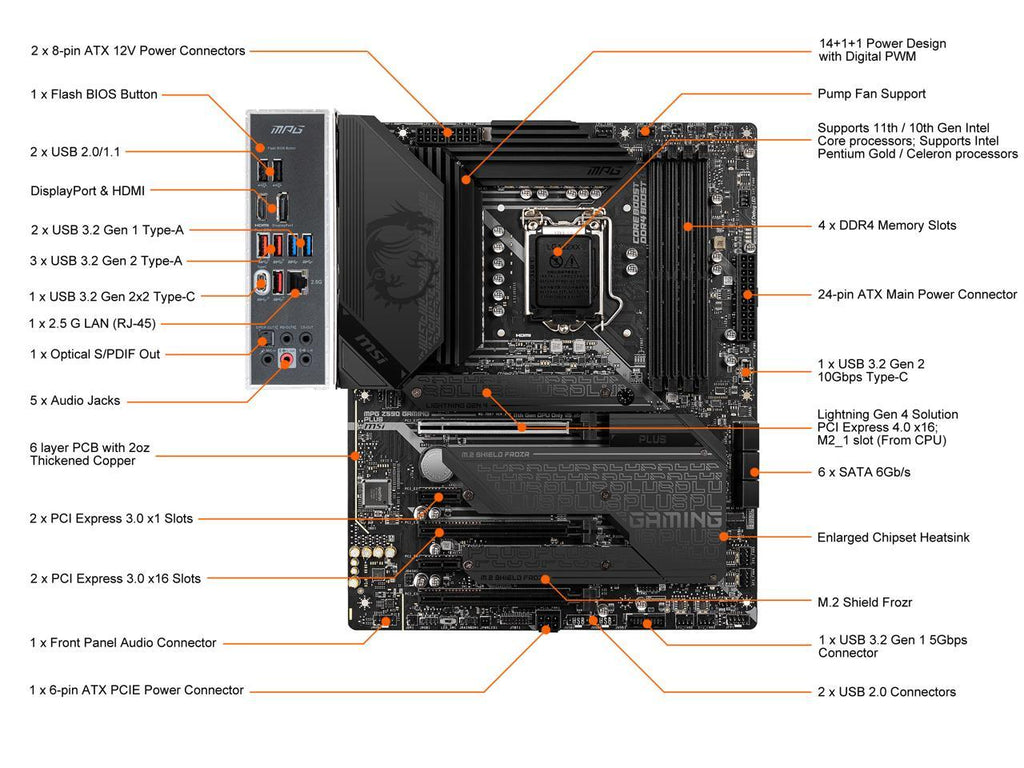

14+1+1 Power Design with Digital PWM
An aggressive digital VRM power design with digital PWM IC, and 14 Duet Rail CPU Power System with 75A Smart Power Stages lets the system run reliably even under extreme conditions.
PCIe Steel Armor
Reinforced and shielded PCIe slots for strength and stability.
MPG Z590 GAMING PLUS
PREMIUM THERMAL SOLUTION
Premium Thermal Design
Heavy plated mosfet heatsink with heat-pipe, high quality 7W/mK mosfet thermal pads and extra choke thermal pads ensure all cores run at peak performcance.
M.2 Shield Frozr
Sustain maximum high-speed M.2 SSD data transfer with M.2 SHIELD FROZR and prevent SSD thermal throttling.
Pump Fan Support
Control watercooling pump speeds for flowrate and noise control.
Enlarged Chipset Heatsink
Large heatsink over the chipset for superior heat dissipation.
MPG Z590 GAMING PLUS
HIGH-SPEED TRANSMISSION
2.5G Network Solution
Onboard 2.5 Gigabit Ethernet LAN with LAN manager.
Lightning USB 20G
Built-in USB 3.2 Gen 2x2 port, up to 20Gbps transfer speed, 4X faster than USB 3.2 Gen1.
DDR4 Boost
The memory circuit design has been optimized on a reserved section of the motherboard fully isolated from other circuits.
Lightning Gen 4 Solution
Transfer data lightning fast across Gen 4 PCI-E and M.2 with up to 64GB/s bandwidth.
14 + 1 +1 DUET RAIL POWER SYSTEM
Unleash and sustain maximum performance with an aggressive VRM design built with a total of 14 Duet Rail Power System(DRPS). Combining 2x 8-pin power connectors and exclusive Core Boost technology, MPG series motherboard is ready to sustain heavy daily work.
CORE BOOST
An optimized power circuit layout and digital power regulation supports more cores and provides stable performance.
LIGHTNING GEN 4 SOLUTION
Transfer data lightning fast across Gen 4 PCI-E and M.2 with up to 64GB/s bandwidth.
CUSTOMIZE YOUR GAMING RIG
Personalize your PC with RGB LED lighting capable of 16.8 million colors with dynamic effects through the Mystic Light APP.
EZ LED CONTROL FOR RGB CUSTOMIZATION
A built-in LED switch on the motherboard instantly turns lighting on or off. Personalize your PC with RGB LED lighting capable of 16.8 million colors with dynamic effects through the Mystic Light APP.
MAXIMIUM DATA TRANSFER WITH 2.5G LAN
MPG Z590 GAMING PLUS features onboard 2.5Gbps Ethernet LAN, for gamers and power users who demand high-bandwidth and low-latency network connectivity. Prioritize latency-sensitive applications with MSI LAN Manager for a superior online experience.
ULTRA-FAST LIGHTNING USB 20G
Connect the rear USB Type-C port and quickly move large files including uncompressed video, raw images, and bulky simulation data across USB 3.2 Gen 2x2 with transfer speeds up to 20Gbps.
AMPLIFY YOUR EXPERIENCE WITH AUDIO BOOST 5
Like a dedicated sound card, Audio Boost 5 offers a HD audio processor, dedicated amplifier and high quality audio capacitors all physically isolated from the rest of the motherboard circuitry to ensure the purest audio signal to locate enemies with pin-point accuracy. Powered by the ALC 4080 audio processor, this motherboard supports 120dB SNR, 32-bit/384kHz and DSD Super Audio CD playback & recording.
PCB WITH 2OZ THICKENED COPPER
An enhanced PCB material design with 2oz thickened copper increases conductivity, improving heat dissipation and high-performance reliability.
UNMATCHED MEMORY PERFORMANCE
MSI takes memory stability and performance to the extreme. The memory circuit layout has been optimized for reliability and tested extensively in partnership with major memory manufacturers for compatibility.
MULTIPLE GPU SUPPORT AND PCI-E STEEL ARMOR
MPG Z590 GAMING PLUS supports AMD® CrossFire™ multi GPU technology. PCI-E slot placements provide optimal airflow for graphics card cooling. MSI PCI Express Steel Armor slots are secured to the motherboard with extra solder points and support the weight of heavy graphics cards. When every advantage counts, Steel Armor shields the point of contact from electromagnetic interference.
General Information
| Manufacturer | MSI |
|---|---|
| Manufacturer Part Number | MPG Z590 GAMING PLUS |
| Manufacturer Website Address | http://www.msi.com |
| Brand Name | MSI |
| Product Line | MPG |
| Product Model | Z590 GAMING PLUS |
| Product Name | MPG Z590 GAMING PLUS Desktop Motherboard |
| Product Type | Desktop Motherboard |
| UPC | 824142242872 |
| Chipset Manufacturer | Intel |
|---|
| HDMI | Yes |
|---|---|
| Total Number of USB Ports | 8 |
| Number of USB 3.2 Gen 1 Ports | 2 |

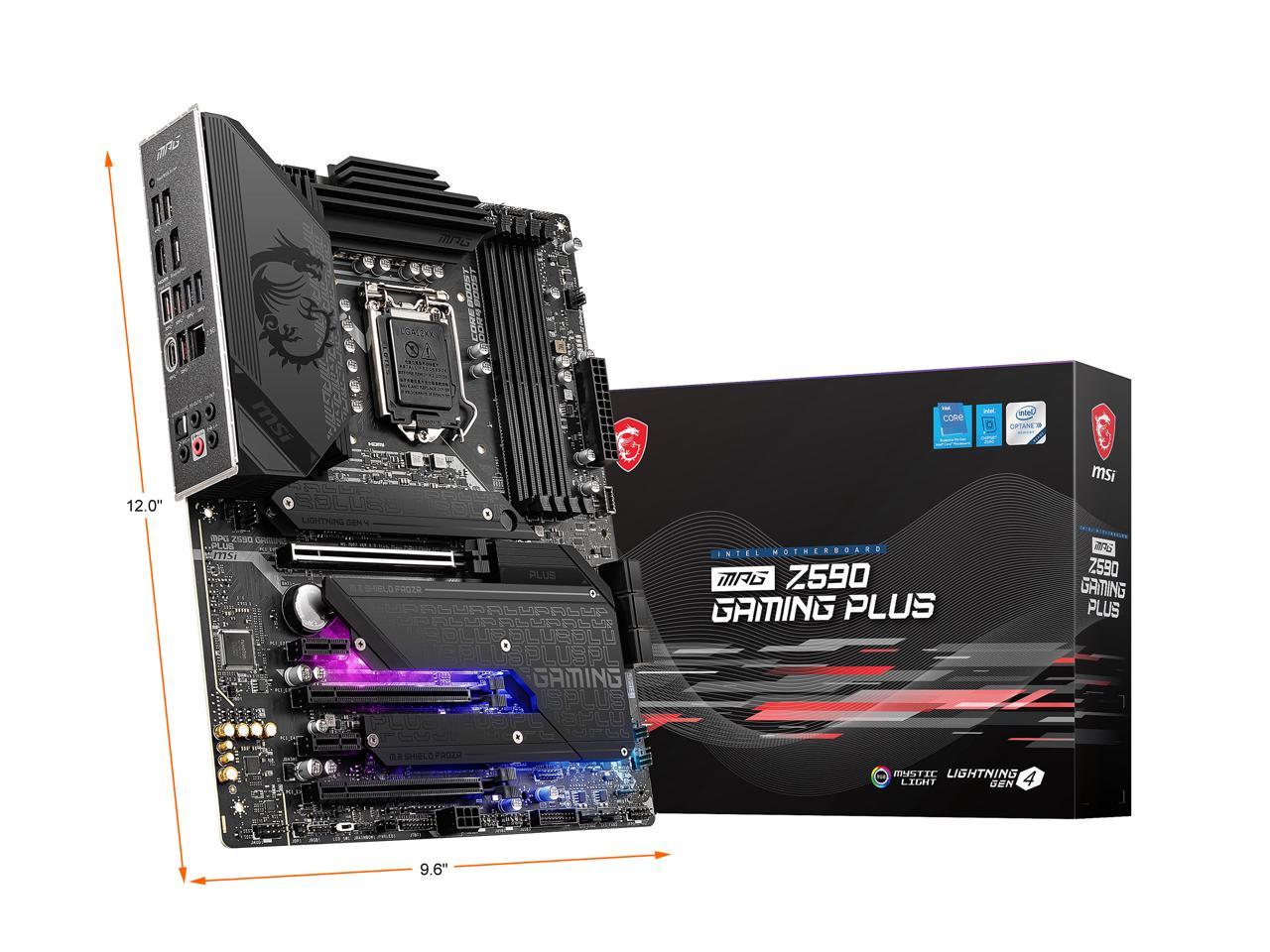

| Width | 12" |
|---|---|
| Depth | 9.6" |
