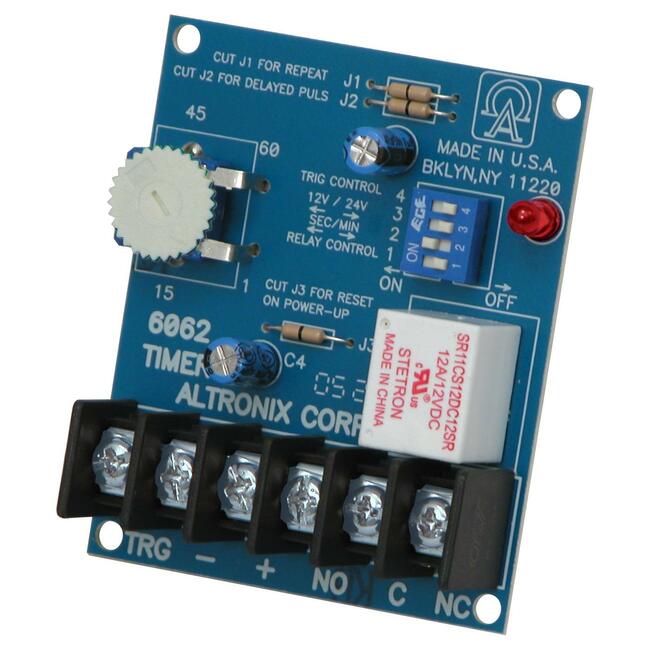

Altronix 6062 Digital Timer
Model 6062 programmable timer is suitable for many functions that require a timed operation e.g. Access Control Applications, Siren/Bell Cut Off Module, Dialer Delay, Guard Tour Supervisory Timer, etc. Some optional functions include: One Shot, Delayed Release, Delayed Operate, Delayed Pulse and Pulser/Flasher. A new feature has been added which provides a momentary relay activation at the end of a desired timing cycle. This feature eliminates the need for having to use two (2) timers to achieve this function. Another new feature will cancel (interrupt) timing cycle and reset timer if desired.
- One second momentary relay activation at the end of timing cycle.
- 1 sec. to 60 min. adjustable timing range.
- SPDT contacts rated @ 8A/115VAC
- Multi-Function Timer
- 12VDC or 24VDC operation
Product Type: Digital Timer
Environmentally Friendly: Yes
Environmental Certification: RoHS
Country Of Origin: United States
Brand Name: Altronix
Manufacturer: Altronix Corporation
Product Model: 6062
Product Name: 6062 Digital Timer
Manufacturer Part Number: 6062
Manufacturer Website Address: http://www.altronix.com
Packaged Quantity: 1
Limited Warranty: Lifetime
Weight (Approximate): 6.40 oz
