Description
- Premium quiet fan, 120x120x25 mm, 5V, 3-pin Molex, 1500 RPM, 22.4 dB(A), >150,000 h MTTF
- Award-winning 120x25mm Focused Flow design for superior quiet cooling performance

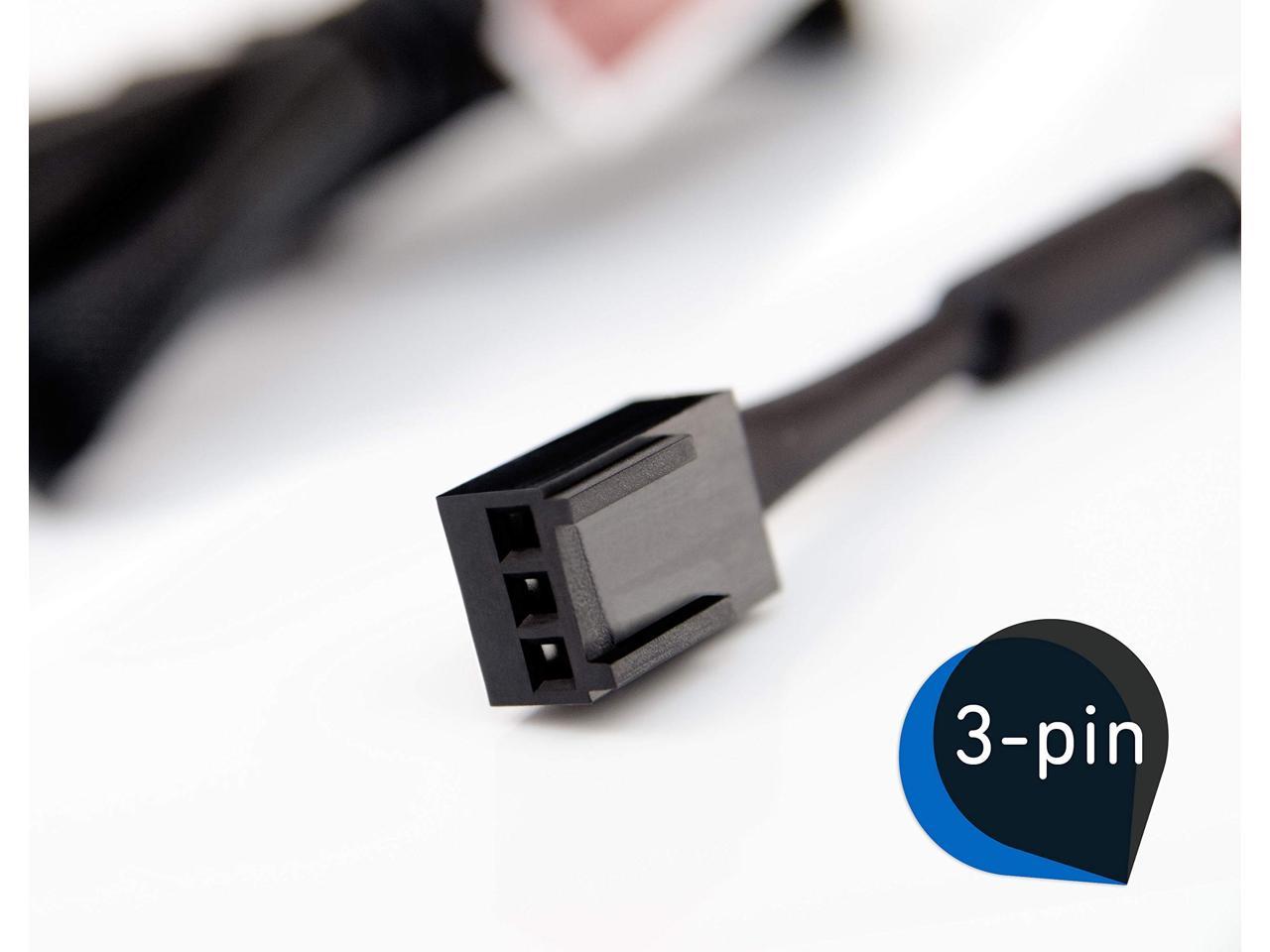

- 5V 3-pin version with polarity protection for 5V-based industrial applications or replacing 5V fans in various devices
- USB power adaptor cable allows the fan to run on devices with USB host ports, power banks or USB power supplies such as those used by smartphones
- Includes anti-vibration mounts, fan screws, extension cable and OmniJoin adaptor set for connection to proprietary fan headers

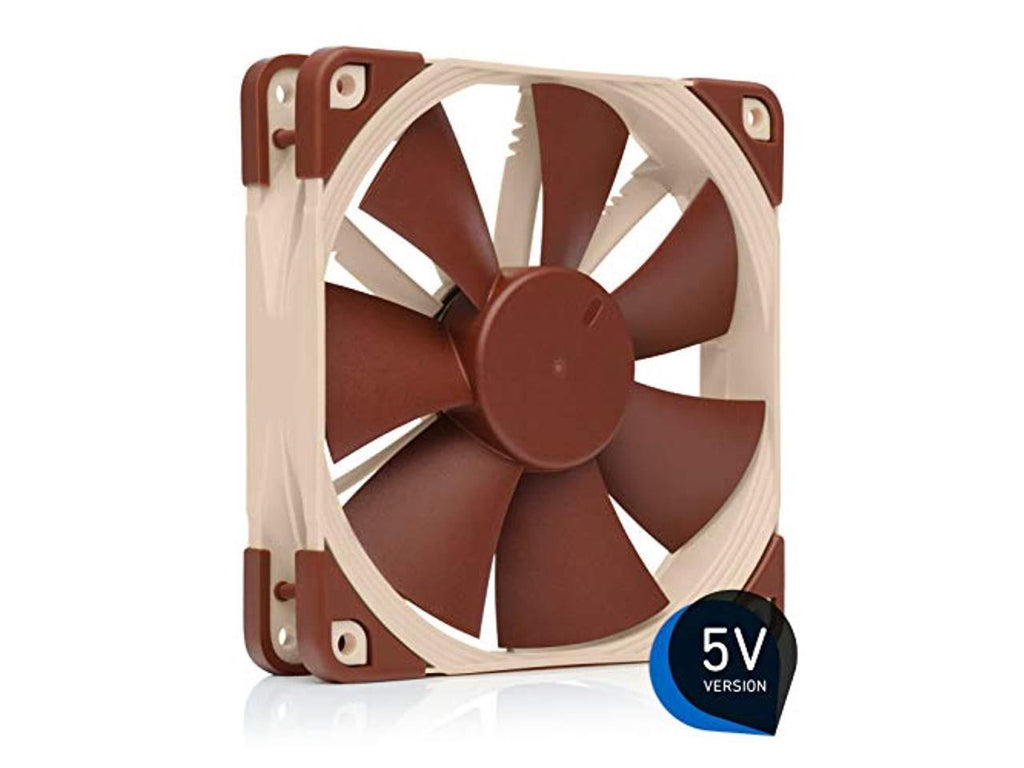

The NF-F12 5V is a dedicated 5V version of Noctua’s award-winning, premium-quality NF-F12 120mm fan. Featuring an AAO (Advanced Acoustic Optimisation) standard frame and sophisticated aerodynamic design measures such as the FocusedFlow system, the NF-F12 is renowned for its superior performance and outstanding quietness of operation. Smooth Commutation Drive technology and Noctua’s reference class SSO2 bearing ensure superb running smoothness and excellent long-term stability. Topped off with the included USB power adaptor cable and OmniJoin adaptor se, the NF-F12 5V is a premium choice for demanding 5V applications.
5V version
5V fans are used in various devices and applications. With the included USB power adaptor cable and OmniJoin adaptor set, the NF-F12 5V is a proven premium solution that gives you full flexibility both for replacing existing 5V fans and for new, custom applications.
Please Note: Being a 5V fan, the NF-F12 5V cannot be run at 12V and will be damaged when used with typical 12V power sources such as PC motherboard fan headers.

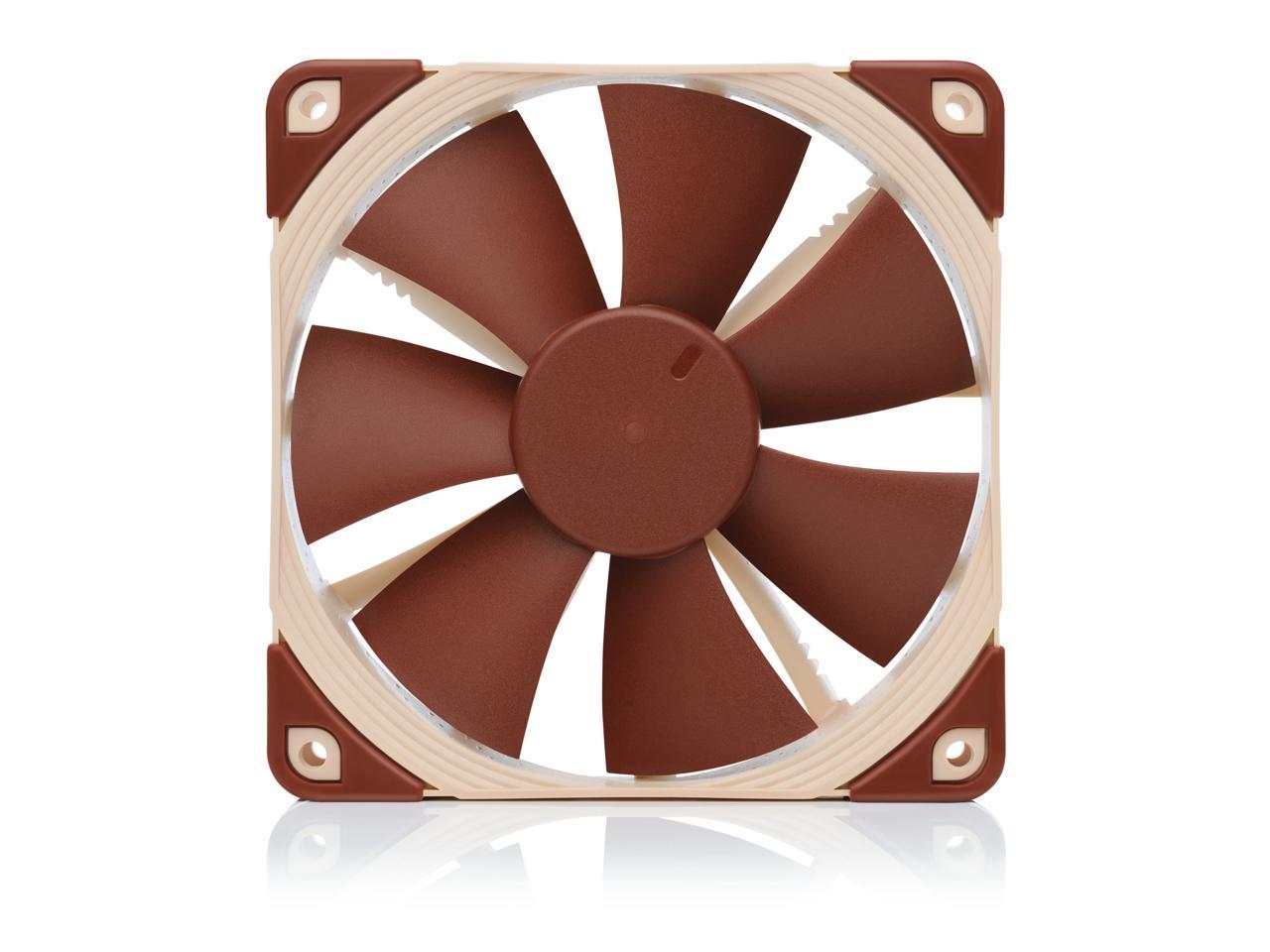

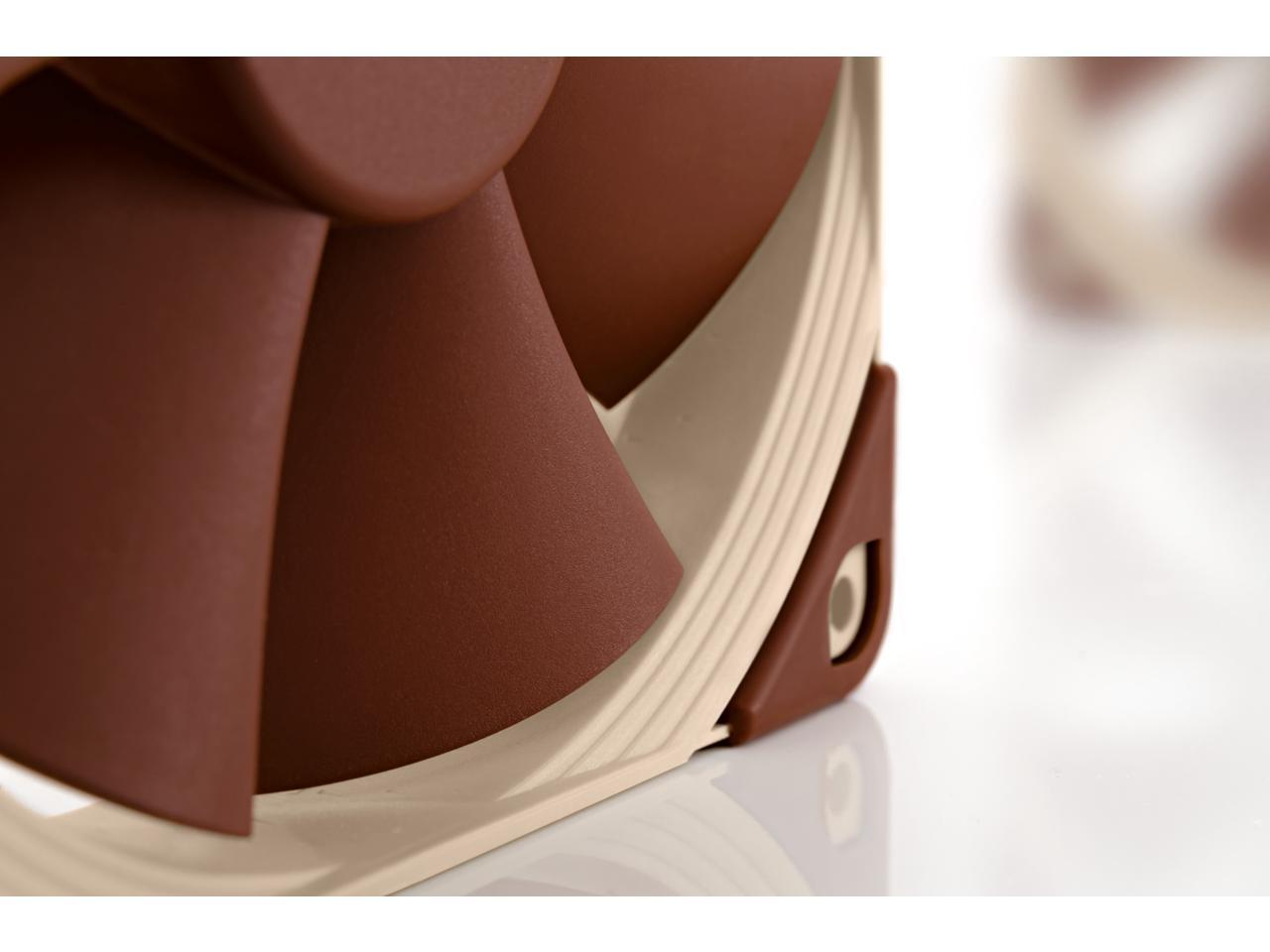

Heptaperf Impeller
Custom designed for the new Focused Flow frame and to work in tandem with the eleven stator guide vanes, the NF-F12's seven blade Heptaperf impeller has been carefully optimised to achieve a perfect balance between power and quietness.
SSO2 bearing
The NF-F12 is the first fan to feature the further optimised second generation of Noctua's renowned, time-tested SSO bearing. With SSO2, the rear magnet is placed closer to the axis to provide even better stabilisation, precision and durability.
Varying Angular Distance and Vortex Control Notches
The NF-F12's stator guide vanes are set out in Varying Angular Distance and feature Vortex-Control Notches. Both measures help to spread the noise emission over a broader frequency spectrum and thus make the fan's sound pattern more agreeable to the human ear.
USB power adaptor cable
The fan includes a USB power adaptor cable that allows it to run on power banks, devices with USB host ports or USB power supplies such as those used for smartphones, giving you near endless possibilities for using the fan in your home, in your car or wherever a need for cooling occurs!

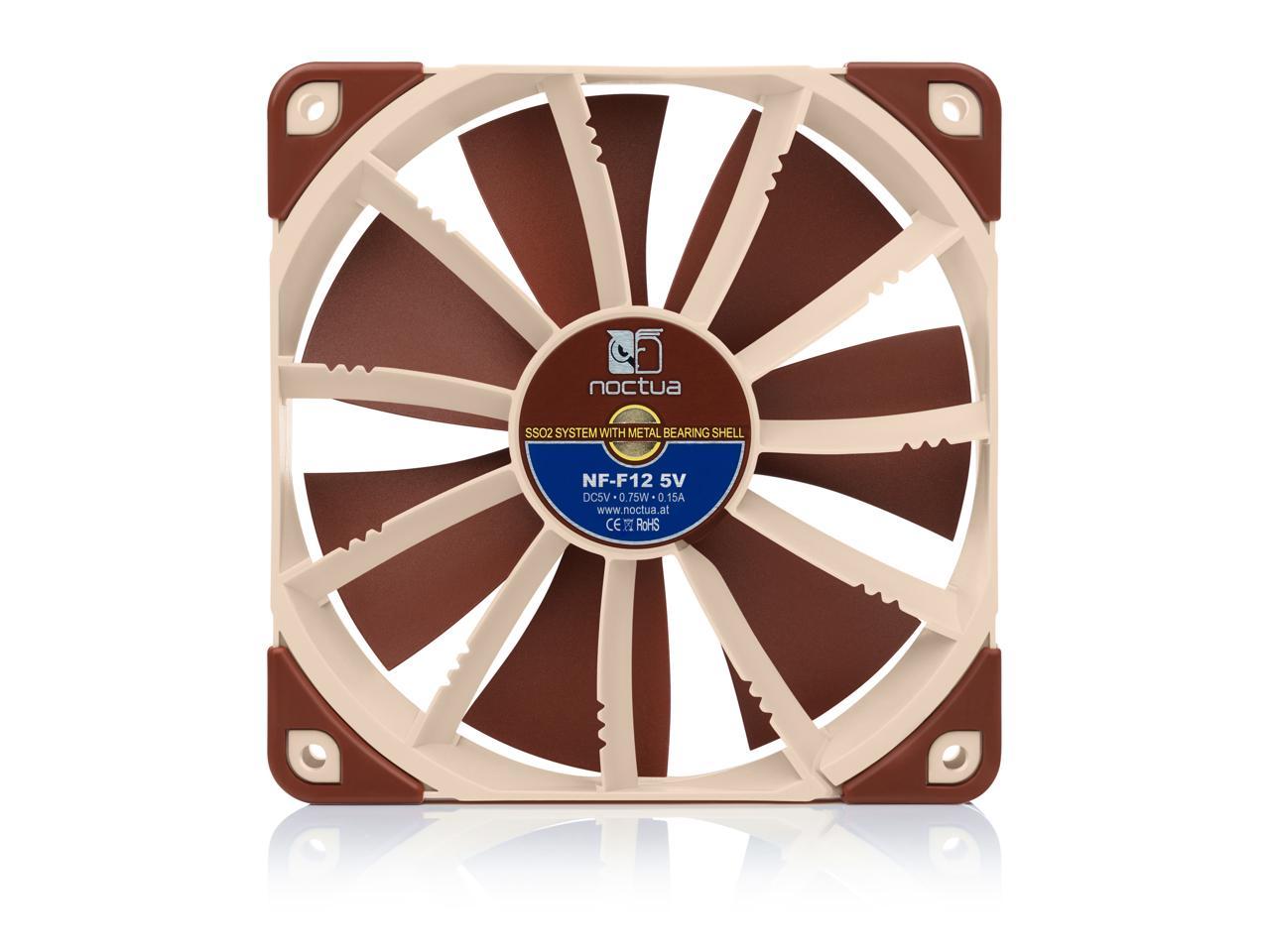

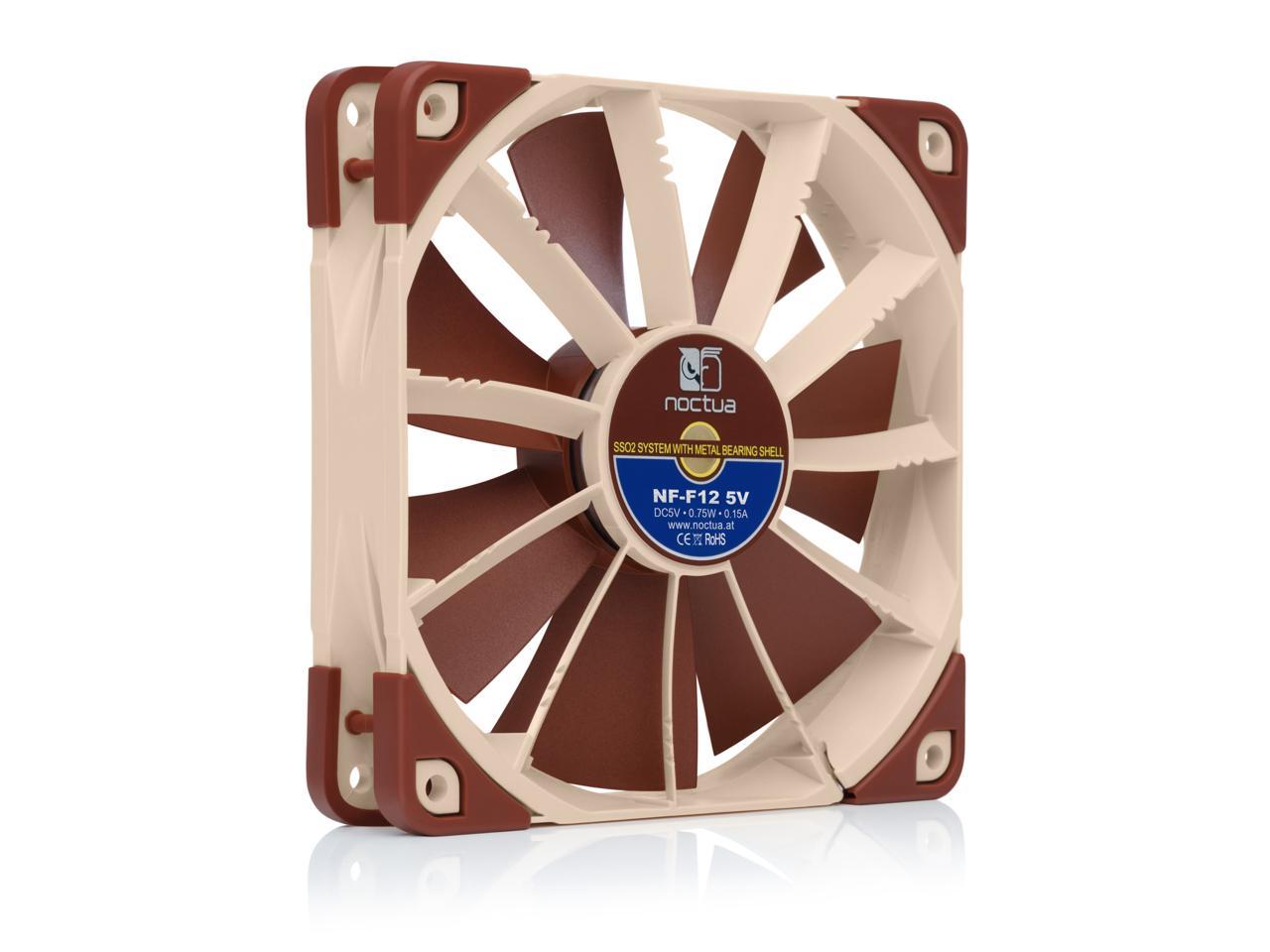

Focused Flow frame
Designed for pressure demanding applications such as heatsinks and radiators, the Focused Flow frame features eleven stator guide vanes that straighten, channel and focus the airflow, which allows the NF-F12 to rival the performance of conventional fans running at much faster speeds.
 NF-F12 PWM |
 NF-F12 PWM 5V |
 NF-F12 5V |
 NF-F12 PWM chromax.black.swap |
|
| Connector | 4-pin PWM | 4-pin PWM | 3-pin | 4-pin PWM |
|---|---|---|---|---|
| RPM | Max: 1500 / Min: 300 | Max: 1500 / Min: 300 | 1500 | Max: 1500 / Min: 300 |
| RPM with L.N.A. | 1200 | - | - | - |
| Acoustical Noise | 22,4 dB(A) | 22,4 dB(A) | 22,4 dB(A) | 22,4 dB(A) |
| Acoustical Noise with L.N.A. | 18,6 dB(A) | - | - | - |
| Voltage | 12 V | 5 V | 5 V | 12 V |
| Size (mm) | 120x120x25 | 120x120x25 | 120x120x25 | 120x120x25 |
| Color | Brown & Beige | Brown & Beige | Brown & Beige | Black with swappable coloured anti-vibration pads |
General Information
| UPC | 841501110269 |
|---|
