Description
- Premium quiet fan, 120x120x25 mm, 12V, 4-pin PWM, max. 1500 RPM, max. 22.4 dB(A), >150,000 h MTTF
- Award-winning 120x25mm fan with Focused Flow frame for high static pressure and superior quiet cooling performance
- Ideal for CPU heatsinks (e.g. Noctua NH-U12(S) series) and water cooling radiators, perfect replacement fan for loud all-in-one (AIO) coolers
- 4-pin PWM version for automatic speed control via 4-pin PWM fan headers, broad 300-1500rpm speed range (1200rpm max. with supplied Low-Noise Adaptor)

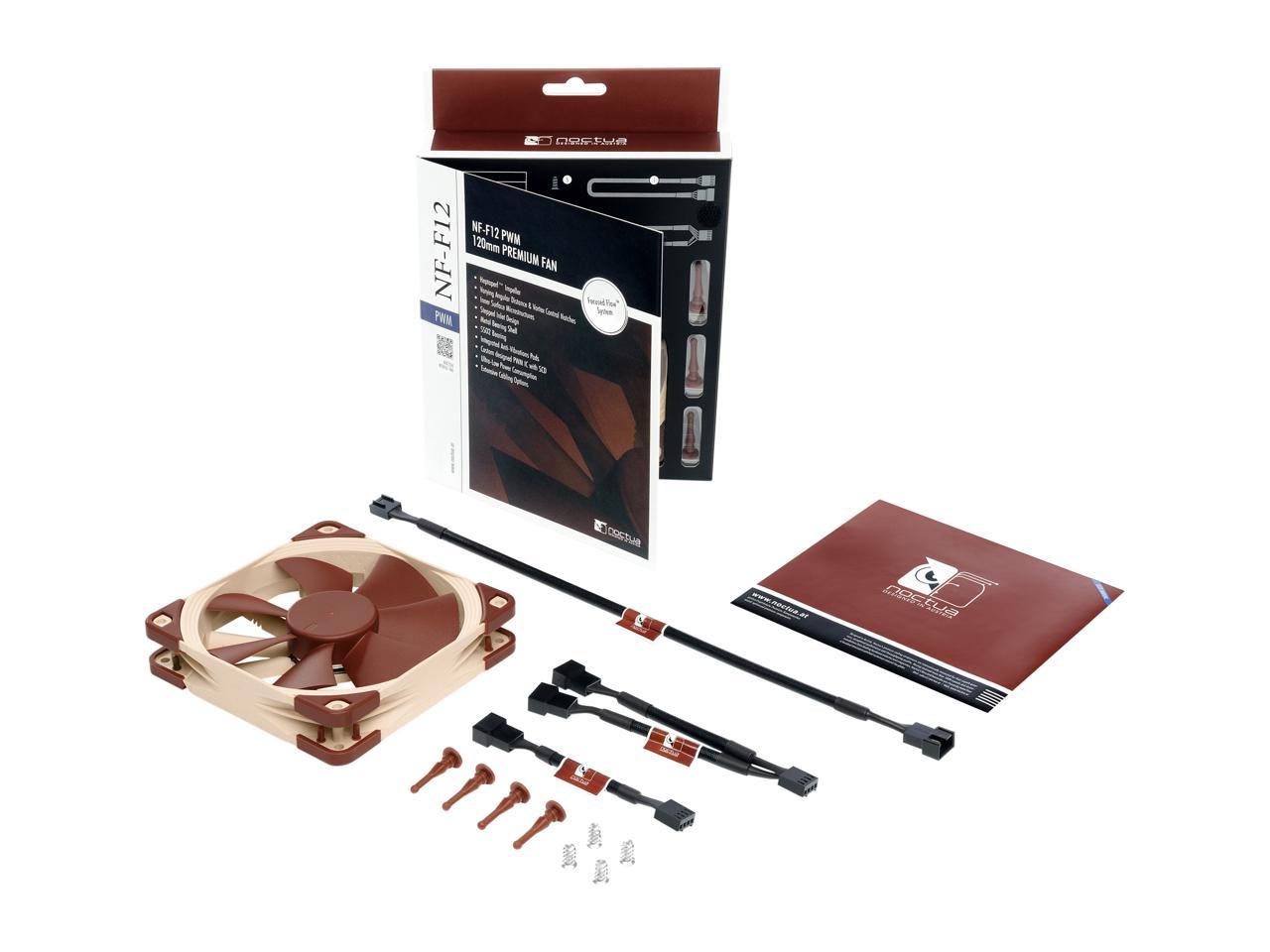

- Includes anti-vibration mounts, fan screws, Low-Noise Adaptor, extension cable and y-cable for running two PWM fans on the same header

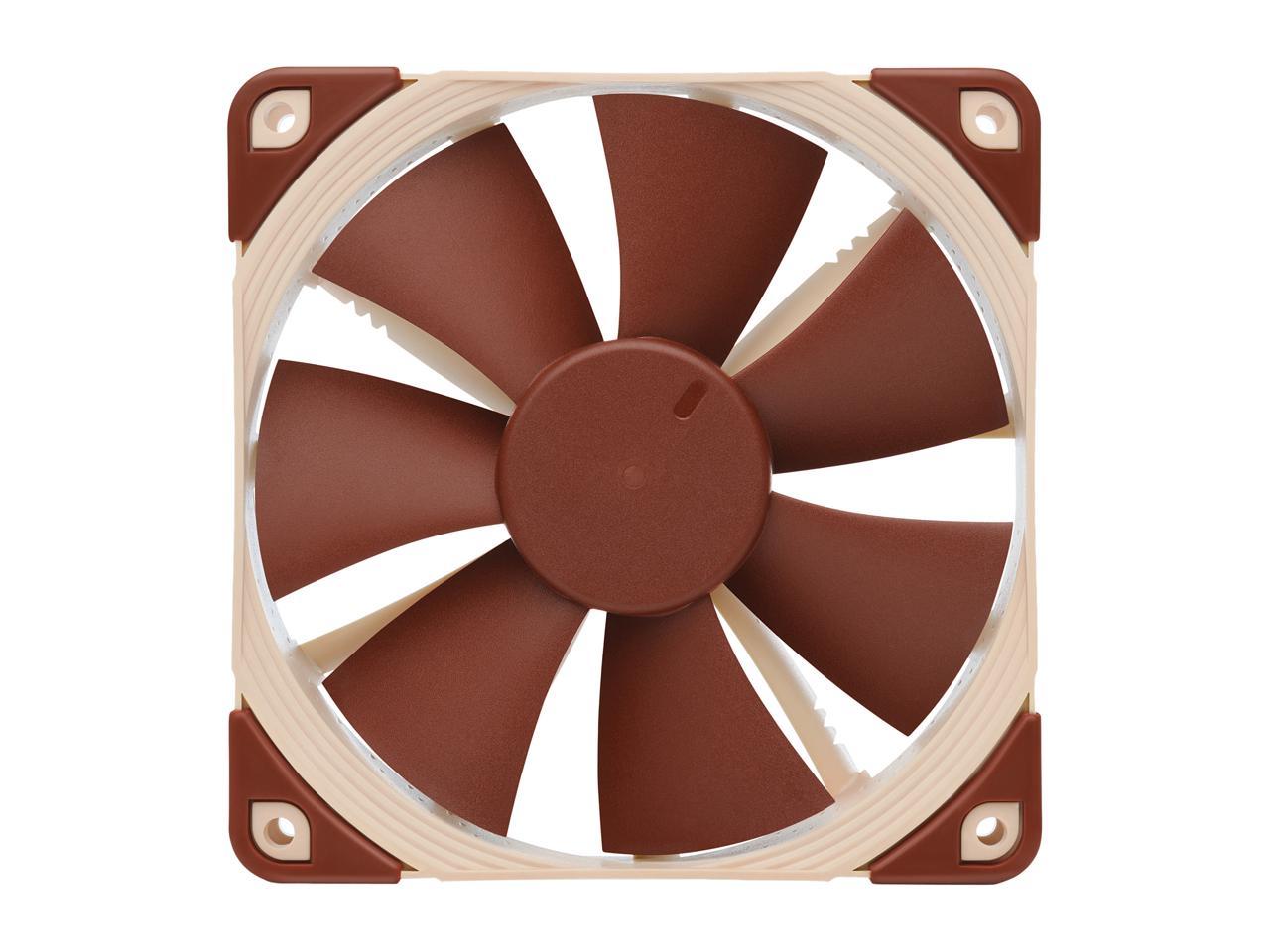

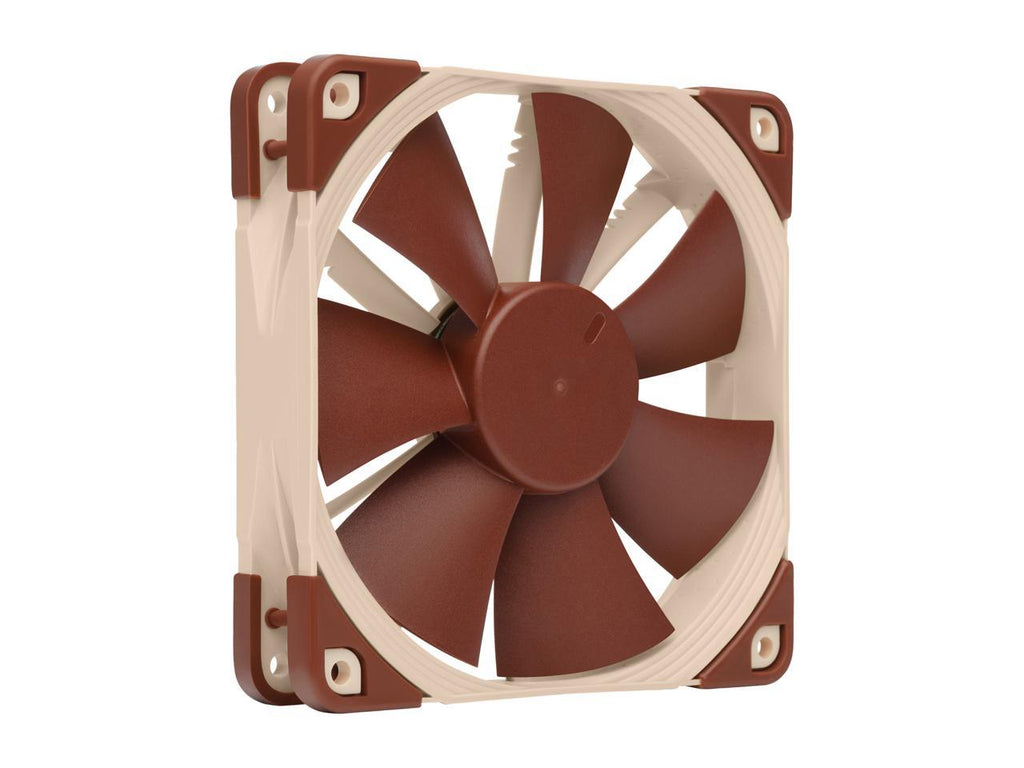

NF-F12 PWM
120 x 120 x 25mm. 4-pin. 1500RPM.
The NF-F12 PWM fan by Noctua employs a wide range of advanced aerodynamic designs to ensure high airflow and pressure at low noise level. When your PC is idle, it will completely stop. It is constructed to last and draws less power over its long life cycle.It is ideal for use on air coolers, radiators and other pressure demanding applications.

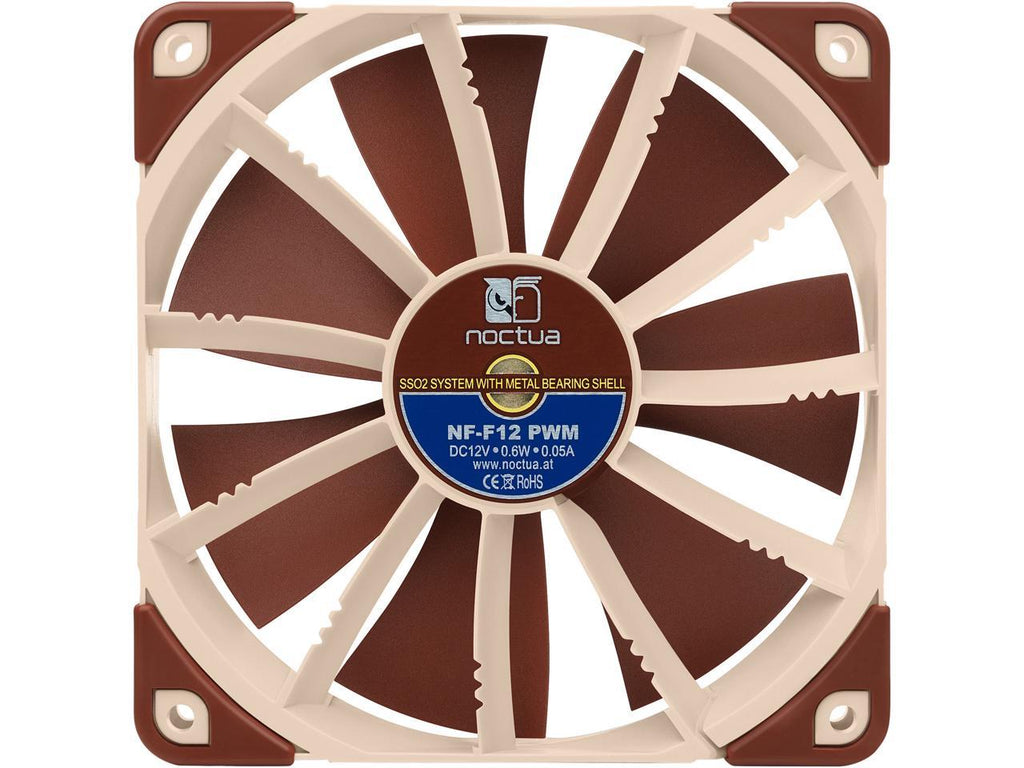

Focused Flow frame
Designed for pressure demanding applications such as heatsinks and radiators, the Focused Flow frame features eleven stator guide vanes that straighten, channel and focus the airflow, which allows the NF-F12 to rival the performance of conventional fans running at much faster speeds.
Varying Angular Distance and Vortex Control Notches
The NF-F12's stator guide vanes are set out in Varying Angular Distance and feature Vortex-Control Notches. Both measures help to spread the noise emission over a broader frequency spectrum and thus make the fan's sound pattern more agreeable to the human ear.
Heptaperf Impeller
Custom designed for the new Focused Flow frame and to work in tandem with the eleven stator guide vanes, the NF-F12's seven blade Heptaperf impeller has been carefully optimised to achieve a perfect balance between power and quietness.

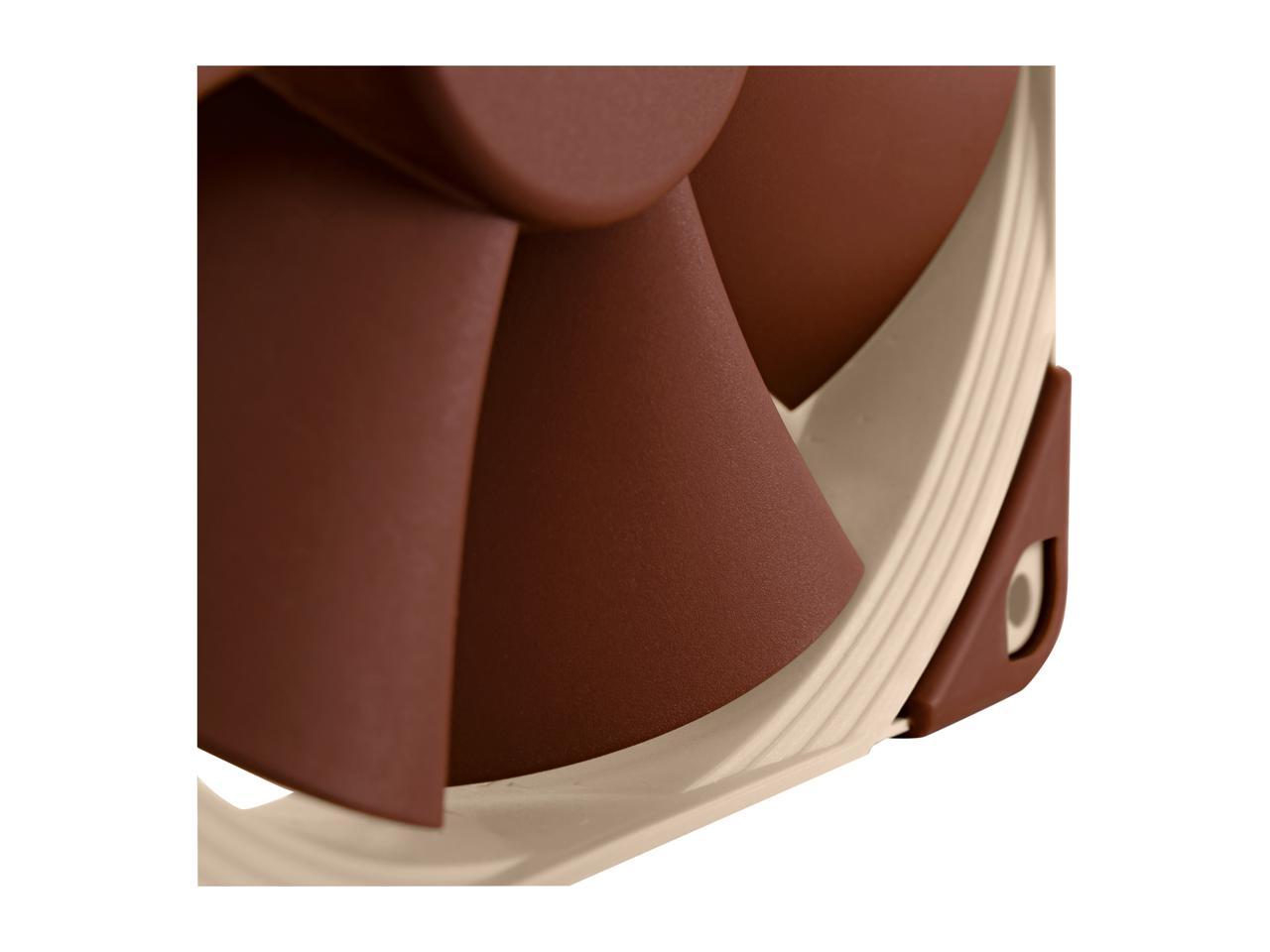

Stepped Inlet Design
Noctua's Stepped Inlet Design adds turbulence to the influx in order to facilitate the transition from laminar flow to turbulent flow, which reduces tonal intake noise, improves flow attachment and increases suction capacity, especially in space-restricted environments.
Inner Surface Microstructures
With the tips of the fan blades ploughing through the boundary layer created by the Inner Surface Microstructures, flow separation from the suction side of the blades is significantly suppressed, which results in reduced blade passing noise and improved airflow and pressure efficiency.
Integrated anti-vibration pads
Integrated anti-vibration pads made from extra-soft silicone minimize the transmission of minute vibrations while maintaining full compatibility with all standard screws and other mounting systems.
SSO2 Bearing
The NF-F12 is the first fan to feature the further optimised second generation of Noctua's renowned, time-tested SSO bearing. With SSO2, the rear magnet is placed closer to the axis to provide even better stabilisation, precision and durability.
Metal bearing shell
In order to guarantee the highest possible degree of manufacturing precision, minimum tolerance and excellent long-term stability, the NF-F12 sports a CNC milled bearing shell made entirely from brass.
Custom-designed PWM IC with SCD
Supporting fully automatic PWM speed control, the NF-F12 uses Noctua's novel, custom-designed NE-FD1 PWM IC that integrates Smooth Commutation Drive (SCD) technology. By providing smoother torque impulses, SCD suppresses PWM switching noises and thus makes the fan quieter at lower speeds.
Stops at 0% PWM
When the fan is set to 0% PWM duty cycle by the motherboard or PWM fan controller, it will stop. This makes it ideal for creating setups with semi-passive cooling that automatically turn the fans off and thus run completely silent at idle if thermals allow.
Ultra-Low Power Consumption
The NF-F12 draws only 0.6W, which is more than 50% less than many fans in the same speed range. This doesn't only make it eco-friendly but also cuts down the electricity bill: Compared to a typical 2W fan, this allows you to save about half the price of the NF-F12 after 5 years of continuous use.
Low-Noise Adaptor
The NF-F12 is supplied with a (L.N.A.) that reduces the maximum fan speed from 1500 to 1200rpm. The L.N.A. can be used either to run the fan at a fixed speed of 1200rpm or to cap the maximum speed when using automatic PWM control.
Extensive cabling options
The fan's short 20cm primary cable minimizes cable clutter in typical applications while the supplied 30cm extension provides extended reach when necessary. Both cables are fully sleeved and a 4-pin y-cable allows the connection of a second NF-F12 fan to the same PWM fan header for automatic control.
General Information
| UPC | 842431014009 |
|---|
