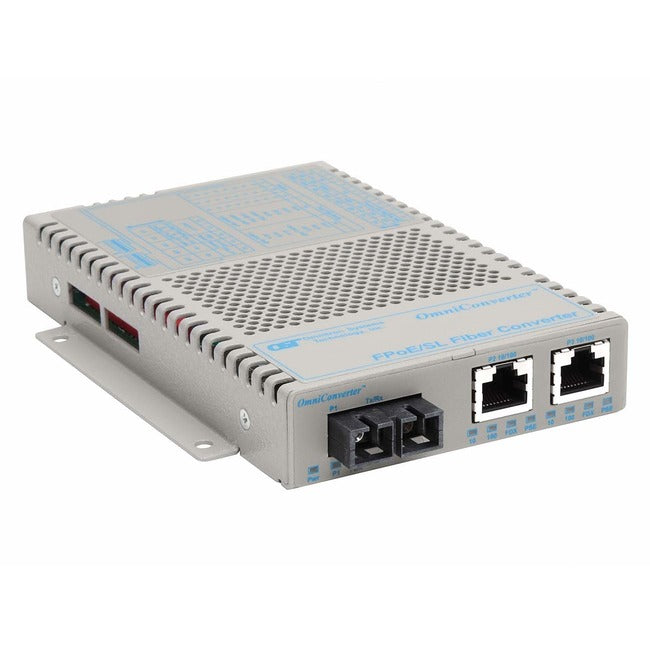

OmniConverter SL 10/100 PoE Ethernet Fiber Media Converter Switch RJ45 SC Multimode 5km Wide Temp
The OmniConverter FPoE/SL is a multi-port media converter that converts 10/100BASE-T UTP to 100BASE-FX fiber and support Power-over-Ethernet (PoE). Classified as Power Sourcing Equipment (PSE), OmniConverter FPoE/SL can provide power to one or two Powered Devices (PDs) using standard UTP cables that carry the Ethernet data. The OmniConverter functions as a PoE mini-switch, and supports a variety of port configurations, including single or dual UTP and SFP ports.
The OmniConverter media converters can power PDs such as VoIP phones, wireless access points, network cameras, building access and automation equipment. They are especially useful at powering PDs in hard-to-reach locations with limited access to AC power outlets (ceilings, closets, etc.). The cost of bringing electrical power to each device is eliminated by powering the equipment through the UTP cable.
- Supports IEEE 802.3af PoE on one or two RJ-45 copper ports
- Supports 100BASE-FX fixed-fiber and 100BASE-FX SFP transceivers
- Redundant protected fiber link option (using dual SFP transceivers)
- Configurable PoE power reset
- Available in AC and DC models
- Integrated wall mount brackets
- Commercial (0 to 50"C), wide (-40 to 60"C) and extended (-40 to 75"C) operating temperature ranges
- Lifetime Warranty and free 24/7 Technical Support
- Meet the multiple network connectivity needs of today's network environment with this 3 transceiver/media converter
- With Twisted Pair cable, get the desired data transfer rate up to a required distance
- With 10/100Base-TX technology get up to 100Mbps data transfer rate over optical fiber cable
- No hassle of internal installation, install externally
Product Type: Transceiver/Media Converter
Environmentally Friendly: Yes
Environmental Certification: WEEE
Country Of Origin: United States
Product Series: FPoE/SL
Brand Name: Omnitron Systems
Form Factor: Wall Mountable
Product Model: 9342-0-x
Product Name: OmniConverter FPoE/SL 2x PoE SC Multimode 5km US DC Powered
Package Type: Retail
Product Line: OmniConverter
Manufacturer Part Number: 9342-0-29W
Manufacturer Website Address: http://www.omnitron-systems.com
Package Contents:
- OmniConverter FPoE/SL 2x PoE SC Multimode 5km US DC Powered
- User Manual
Limited Warranty: Lifetime
Weight (Approximate): 1 lb
