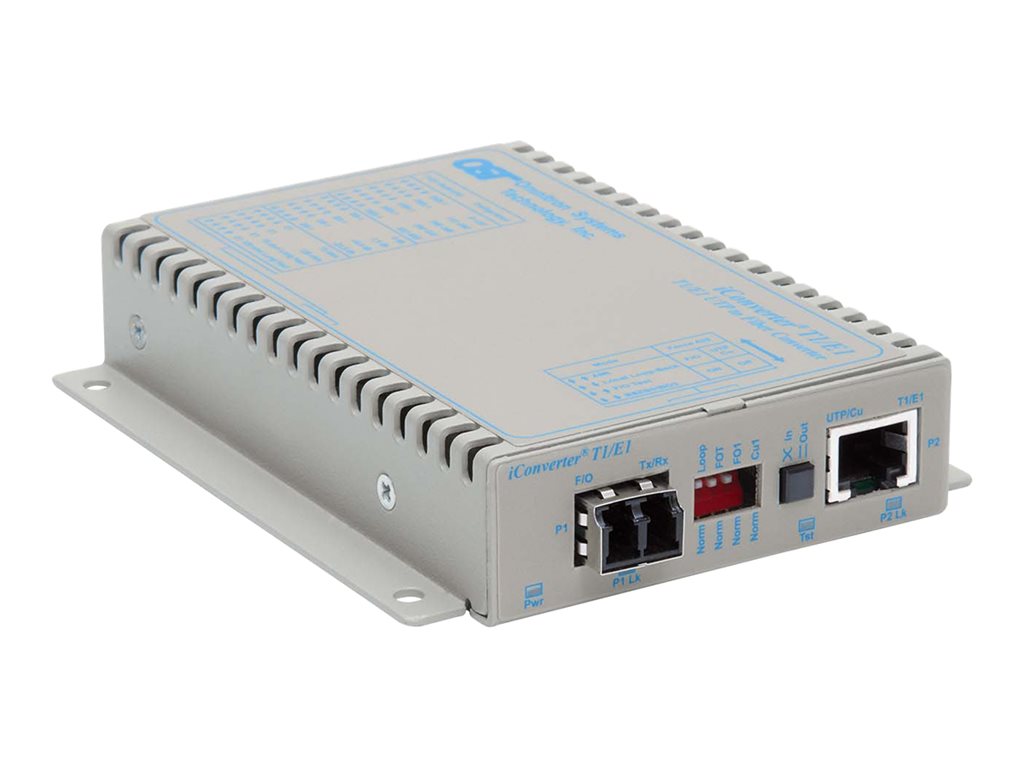

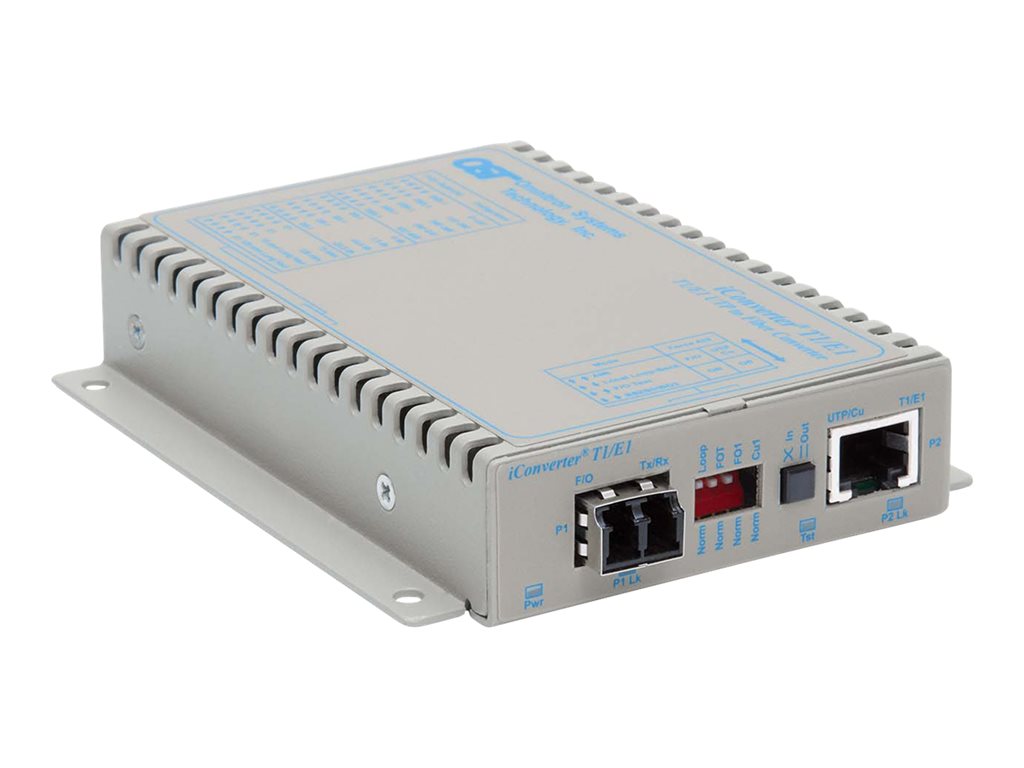

Omnitron iConverter T1/E1 - Fiber media converter - LC single-mode / RJ-45/RJ-48 - up to 18.6 miles - T-1/E-1 - 1310 nm
The iConverter T1/E1 manageable media converter is a member of the modular iConverter product family. It provides T1/E1 Copper to Fiber conversion. The fiber port supports single-mode (SM) or multimode (MM) fiber with distances up to 120km. The RJ45/RJ48 port supports T1/E1, and a DCE/DTE switch eliminates the need for a crossover cable and facilitates connectivity to devices such as PBXs and CSUs. The iConverter T1/E1 features user-selectable Local Loop-Back, Force 1's to Copper, Force 1's to Fiber, and Fiber Optic Test modes to facilitate quick fault detection, isolation, and reporting. Like all iConverter modules, the iConverter T1/E1 is hot swappable and supports three mounting options. It can be mounted in a 19-Unit, 2U (3.5 inch) high, space-saving 19-inch rack-mountable chassis with any combination of triple-redundant AC or 48VDC power supplies. It can also be mounted in a 2-Unit AC or 48VDC powered chassis or in a 1-Unit AC powered chassis.
