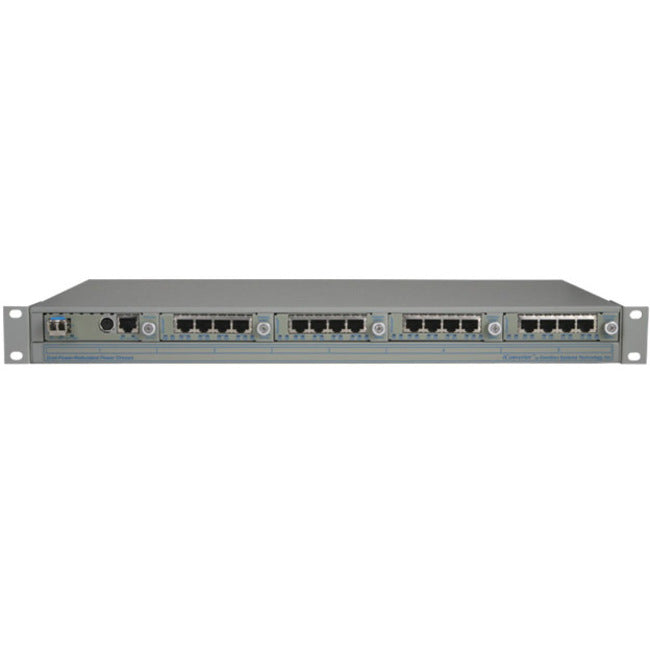

Omnitron Systems iConverter 2431-2-44W T1/E1 Multiplexer
The iConverter T1/E1 MUX/M multiplexes up to sixteen T1 or E1 circuits and one 10/100/1000 Ethernet service onto a fiber optic transport link, and features remotely managed testing and configuration capabilities.
The iConverter T1/E1 MUX/M operates in a back-to-back configuration, and can be used in applications such as multiple T1/E1 extension, mobile backhaul and building-to-building PBX connectivity.
The T1/E1 copper interfaces are available in 4, 8, 12 or 16 RJ-48 port configurations for balanced T1/E1 applications. Optional adapter cables are available to convert each RJ-48 interface to a BNC interface for unbalanced E1 transport applications.
Additional hot-swappable 4-Port T1/E1 MUX modules can be installed to increase system capacity up to 16 T1/E1 ports maximum per 1U (1.75 inch) chassis.
Product Type: Data Multiplexer
Country Of Origin: United States
Rack Height: 1U
Brand Name: Omnitron Systems
Form Factor: Rack-mountable
Manufacturer: Omnitron Systems
Product Model: 2431-2-44W
Product Name: iConverter 2431-2-44W T1/E1 Multiplexer
Product Line: iConverter
Manufacturer Part Number: 2431-2-44W
Manufacturer Website Address: http://www.omnitron-systems.com
Package Contents:
- iConverter 2431-2-44W T1/E1 Multiplexer
- 4 x 4-Port T1/E1 MUX Module
- 2 x VDC Power Supply
Limited Warranty: Lifetime
Weight (Approximate): 7.50 lb
