Name: Openbox!!! Supermicro Superserver Sys-1028R-Wmr Open Box Dual Lga2011 400W 1U Rackmount Server Barebone System
Brand: Supermicro
SKU: SYS-1028R-WMR OPEN BOX
Price: 1138.35 USD
Availability: InStock

Openbox!!! Supermicro Superserver Sys-1028R-Wmr Open Box Dual Lga2011 400W 1U Rackmount Server Barebone System

Roll over image to zoom in Click on image to zoom

Buying in volume? Bulk discounts and deal registrations are available. Contact us or email [email protected].

Mfr Part Number: SYS-1028R-WMR OPEN BOX

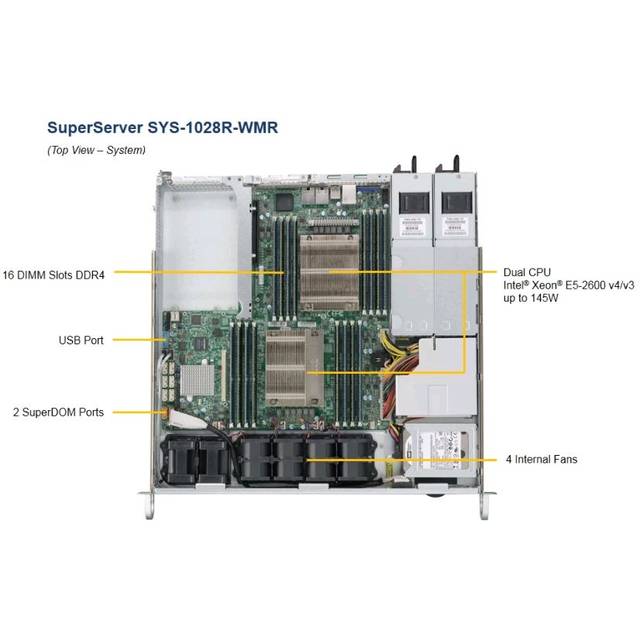

Motherboard: Super X10DRW-E
Processor/Cache:
- CPU: Intel Xeon processor E5-2600 v4/ v3 family (up to 145W TDP); Dual Socket R3 (LGA 2011)
- Cores / Cache: Up to 22 Cores / Up to 55MB Cache
- System Bus: QPI up to 9.6 GT/s
- Note: BIOS version 2.0 or above is required
System Memory:
- Memory Capacity: 16x 288-pin DDR4 DIMM slots; Up to 2TB ECC 3DS LRDIMM, 512GB ECC RDIMM
- Memory Type: 2400/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit
- DIMM Sizes:
  - RDIMM: 64GB, 32GB, 16GB, 8GB, 4GB
  - LRDIMM: 64GB, 32GB
  - 3DS LRDIMM: 128GB
- Memory Voltage: 1.2 V
- Error Detection: Corrects single-bit errors
On-Board Devices:
- Chipset: Intel C612 chipset
- SATA: SATA3 (6Gbps); RAID 0, 1, 5, 10
- IPMI:
  - Support for Intelligent Platform Management Interface v.2.0
  - IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
  - ASPEED AST2400 BMC
- Network Controllers:
  - Intel i350 Dual Port Gigabit Ethernet Controller
  - Virtual Machine Device Queues reduce I/O overhead

  - Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output

  - 1x Realtek RTL8211E PHY (dedicated IPMI)
- Video: ASPEED AST2400 BMC

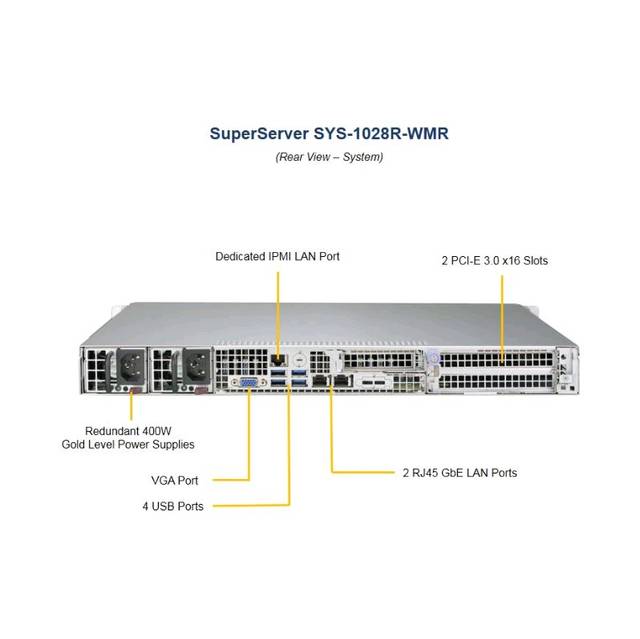

Input/ Output:
- Serial ATA: 10x SATA3 (6Gbps) ports
- LAN:

  - 2x RJ45 Gigabit Ethernet LAN ports

  - 1x RJ45 Dedicated IPMI LAN port
- USB:

  - 2x USB 3.0 ports (via header)

  - 4x USB 2.0 ports (rear)
- VGA: 1x VGA port
- Serial Port / Header: 1x Header
Chassis:
- Form Factor: 1U Rackmount
- Model: CSE-514-R400W

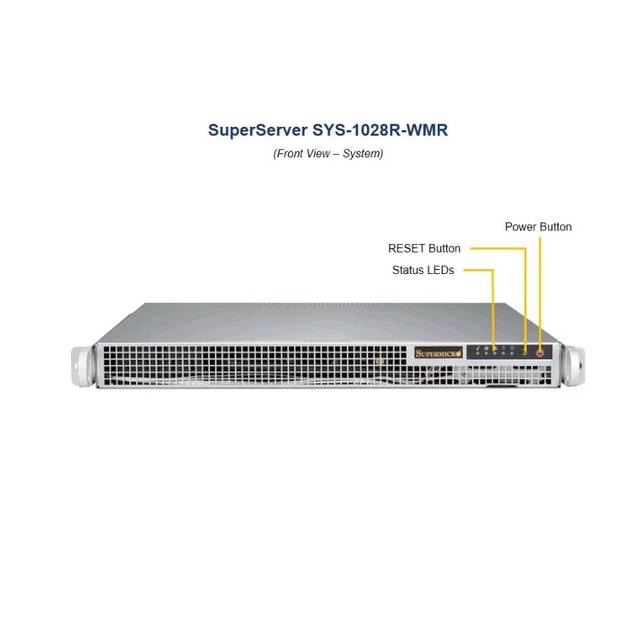

Front Panel:
- Buttons:
  - Power On/Off button
  - System Reset button
- LEDs:
  - Power LED
  - Hard drive activity LED

  - 2x Network activity LEDs

  - System Overheat LED
Expansion Slots:
- PCI-Express: 2x PCI-E 3.0 x16 Full-height, Half-length slots
Drive Bays:

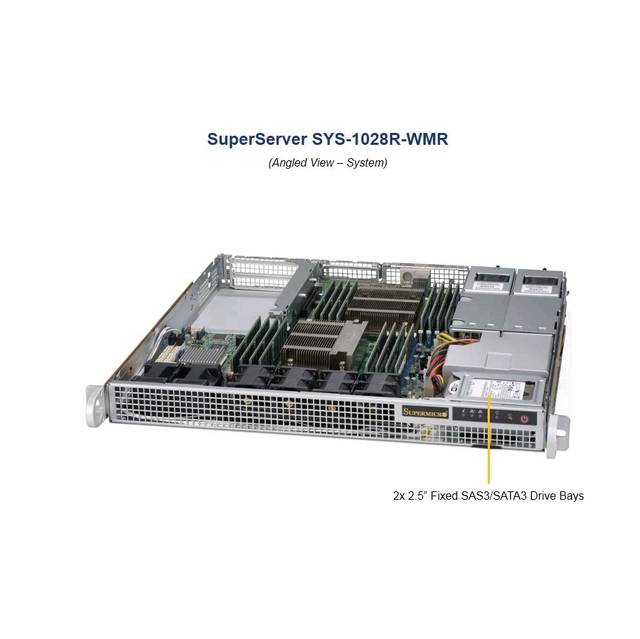

- Internal: 2x 2.5" Fixed drive bays with bracket
System Cooling: 4x 40x56mm PWM fan; 2x fans for AOC cooling
Power Supply: 400W Redundant Power Supplies w/Power Distributor, PMBus 1.2, I^2 C, and PFC
- AC Input: 100-240V, 50-60Hz, 6-3A
- DC Output: +5V standby: 3A; +12V: 33A
- DC Output With Power Distributor: +5V: 25A; +3.3V: 25A; -12V: 0.6A
- Certification: 80 PLUS Gold Certified
System BIOS:
- BIOS Type: 128Mb SPI Flash EEPROM with AMI BIOS
- BIOS Features:
  - Plug and Play (PnP)

  - PCI 2.3

  - ACPI 1.0 / 2.0 / 3.0 / 4.0

  - USB Keyboard support

  - SMBIOS 2.7.1

  - UEFI 2.3.1
Operating Environment / Compliance:
- RoHS: RoHS Compliant
- Environmental Specifications:
  - Operating Temperature: 10C to 35C (50F to 95F)
  - Non-operating Temperature: -40C to 70C (-40F to 158F)
  - Operating Relative Humidity: 8% to 90% (non-condensing)
  - Non-operating Relative Humidity: 5% to 95% (non-condensing)
Dimensions(HxWxD): 1.7" x 17.2" x 16.9"/ 43mm x 437mm x 429mm
Net Weight: 16.5 lbs (7.48 kg)
Gross Weight: 27 lbs (12.25 kg)
