Description

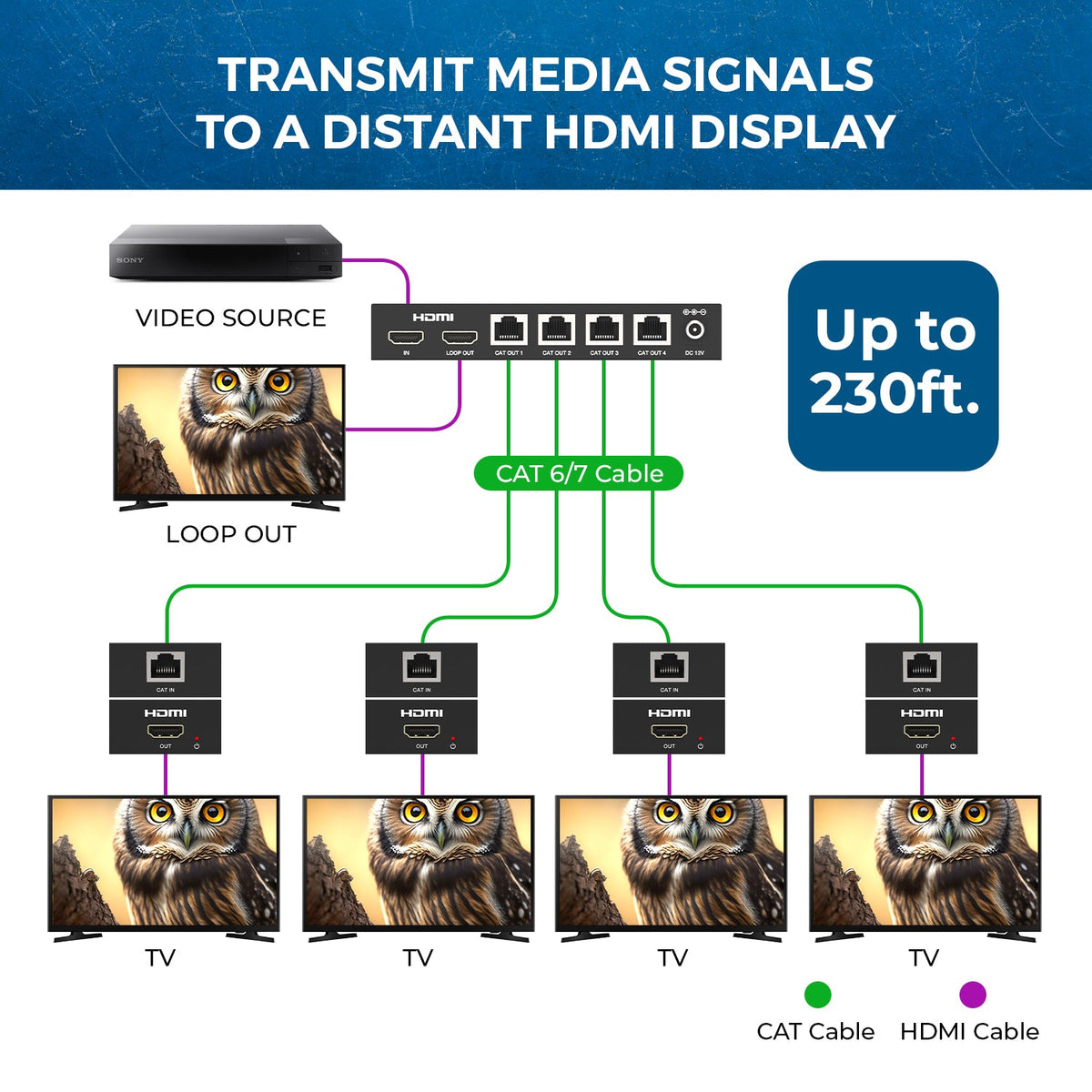

OREI 1 X 4 HDMI Extender. This HDMI extender splitter includes one transmitter and two receivers, extend 1 HDMI source to 4 HDMI displays over single CAT6/6a/7 cable up to 50m/ 132ft. The highest resolution supported is 1920×1080@60Hz, and it supports IR passback, EDID pass through and only one power adapter for the transmitter is needed, the Receiver is powered by the transmitter over CAT6 cable. Ideal solution for HDMI exhibition, Video conference and show center, etc. Specification: HDMI Signal: HDMI 1.3, Compatible with HDCP1.2 Resolution Supported: 480i@60Hz, 480p@60Hz, 576i@50Hz, 576p@50Hz, 720p@50/60Hz,1080i@50/60Hz,1080p@50/60Hz CAT6/7: up to 40m (131ft) at 1080p@60Hz IR signals: Support 20~60KHz IR device Audio Format: PCM, LPCM EDID: Support EDID setting function Network cable: UTP/STP CAT6/6a/7 Power Supply: DC5V/2A Power Consumption: <8W
[shortdes]

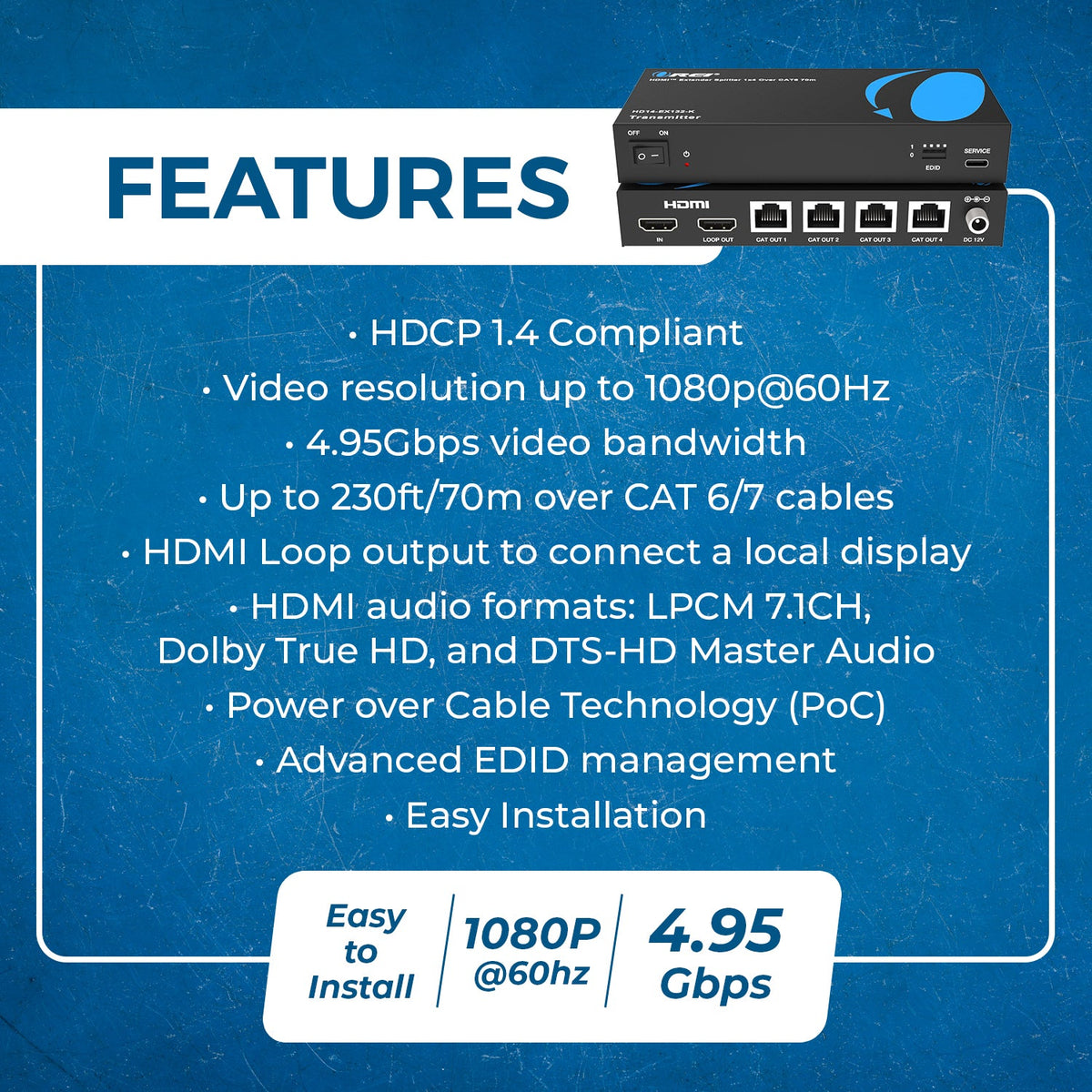

Supports 1080p@60Hz up to 132 feet
Supports 20-60KHz IR passback frequency
Supports one HDMI loop-out and EDID management
[/shortdes] [tab]
AUDIO AND VIDEO
Transmitter:
INPUT PORTS:
1x HDMI
OUTPUT PORTS:
4x RJ45

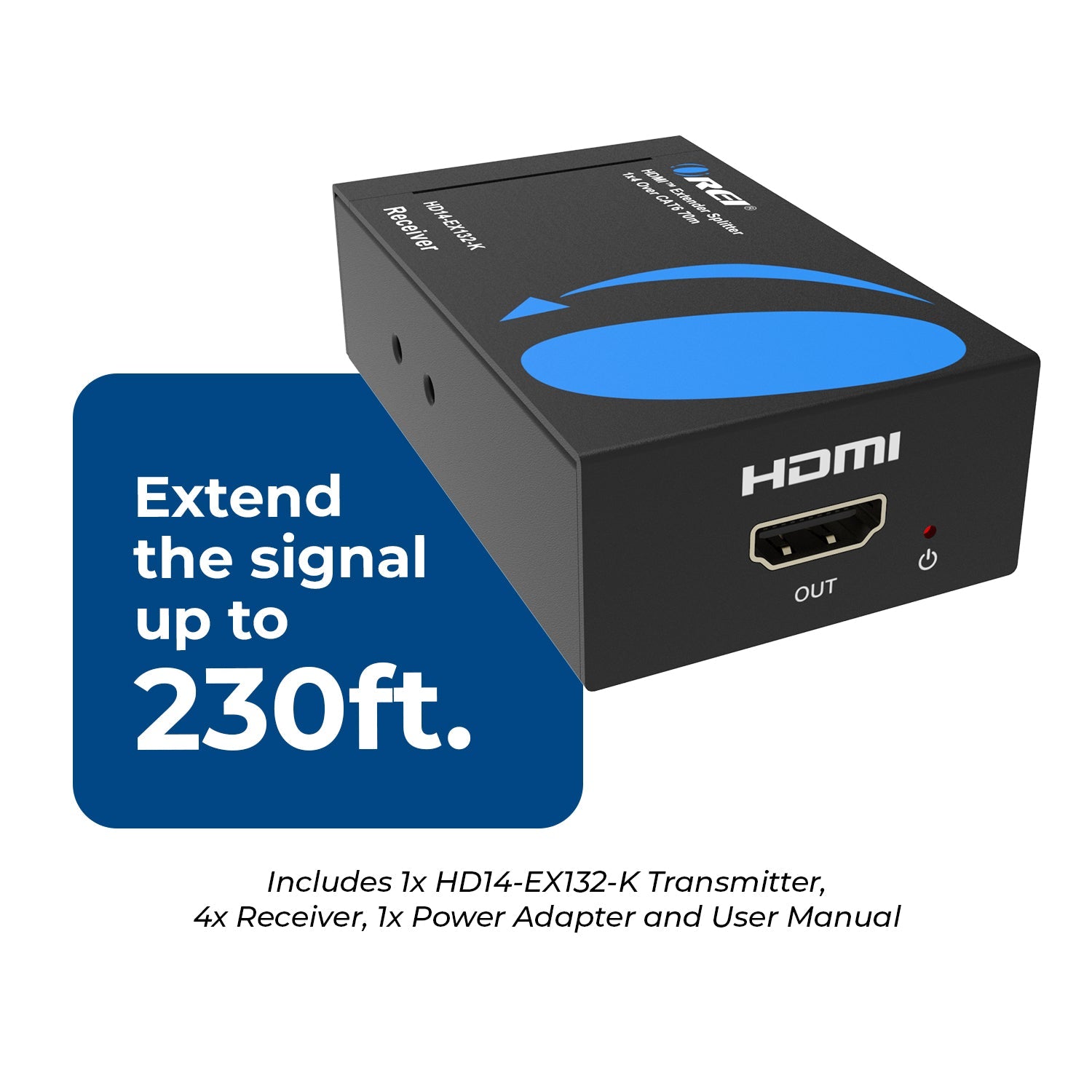

Receiver:
INPUT PORTS:
1x RJ45
OUTPUT PORTS:
1x HDMI
COMPLIANCES
HDMI Compliance:
HDMI 1.3
HDCP Compliance:
HDCP 1.2
SUPPORTED CAT CABLES
CAT5e, CAT6, CAT7:
We recommend you to use shielded CAT6 cables & High-Quality HDMI Cables for optimum performance
EXTENDING DISTANCE
1080p@60Hz:
Full HD resolution 1080p@60Hz up to 40 meters via CAT6 cable
CEC, EARC, POC/POE, IR, DOWNSCALER, KVM, OVER IP, HDBASET, RS-232 SUPPORT
CEC Function:
No
ARC Function:
No
USB KVM Function:
No
PoC/PoE Function:
No
IR Controller:
With one way IR pass back
Downscaler Function:
No
Over Network/IP Function:
No
HDBaseT Function:
No
RS-232 Function:
No
LOOP-OUT/LOCAL PORT
Has loop out port:
Yes
Number of Loop out ports:
1
SWITCHES
EDID Management:
Yes
EQ Dip Switches:
No
ARC:
No
AUDIO OUTPUT
HDMI Audio Formats:
Dolby, DTS
SPDIF/Optical Audio Formats:
Dolby, DTS
L/R Audio Formats:
NO L/R AUDIO
SIGNALS
TMDS Signals:
3V
DDC Signals:
5V
PERFORMANCE & INTERFACE
Transmission Type:
Over CAT6 cable
Transfer Method:
Uncompressed transmission
Latency:
Zero Latency
Transmission Distance:
131 Feet
Maximun Pixel Clock:
148MHz
DIMENSIONS & WEIGHT
Transmitter:
Height:
23.9mm
Width:
95.9mm
Depth:
190mm
Weight:
430g
Receiver:
Height:
22.6mm
Width:
66.6mm
Depth:
71.6mm
Weight:
80g
PROTECTION
Operation Temperature:
0～50℃
Storage temperature:
-30～70℃
Relative Humidity:
0～90%(no condensation)
Electrostatic Protection of the whole Machine:
IEC61000-4-2
RJ-45 CONNECTOR Type
WE/SS 8P8C
POWER
Power Consumption (Max):
<15W
Power Supply:
DC5V/3A
PHYSICAL PROPERTIES
Color:
Black
Housing:
Metal
Processing Technology:
Uncompressed Transmission Technology
Finishing:
Grit Blast
PACKAGE CONTENTS
1 x HDMI Transmitter
4 x HDMI Receiver
1 x DC5V/3A
4 x DC5V/1A
1 x IR blaster extension cable
4 x IR receiver extension cable
1 x User Manual
WARRANTY
1-Year Manufacturer's Warranty
[/tab]
[tab1]
FAQs
Yes, you can purchase these things directly from us. Please contact us & we will assist you further.
No, this product doesn not extend multiple screens. It will duplicate the input sources to multple outputs.
Yes, you will be able to get a signal beyond the mentioned distance but the quality of the video decreases with increase in the distance and that too when using with shielded CAT6 cable.
Yes, you can implement the daisy chain method.
Both the ends of the CAT cable should be termed as EIA-568B & the cable should be straight & not crossed.
We recommend you to use High-Quality HDMI cables & shielded CAT6 cables.
Yes, you can purchase the additional transmitter from us. Please contact us & we will let you know the price.
Yes, you can purchase the additional receiver from us. Please contact us & we will let you know the price.
You can extend the display devices up to 132 Feet when using with a shielded CAT6 cable.
The issue might be with the CAT cable. This might be due to the external interference of the signals & CAT5e has low bandwidth as compared to the CAT6. We recommend you using shielded CAT6 cable.
If the power and link led lights does not illuminate on the RJ45 port of the transmitter and the receiver, then the transmitter & receiver might be dead.
Please contact us so that we can troubleshoot the issue.
Our all the extenders supports IR Frequency & the devices using RF frequency will not be compatible with our products.
The IR Blaster/Emitter should be connected to the IR out port on the Transmitter and the IR Receiver should be connected to the IR in on the Receiver.
