OREI DA26 HDMI TO ANALOG AUDIO CONVERTER
Key Features:
- HDMI 1.3 compliant
- Extract audio signal from ARC
- Input: HDMI × 1; Output: 3.5mm L/R × 1, RCA × 2
- It has ARC Enabled: Extract audio signal from ARC (Audio Return Channel) from HDTV to analog stereo output, Audio receiver/amplifier/head-phone applications
- PCM 2.0 / Dolby 5.1 / DTS 5.1 audio down-mix to 2 channels stereo audio output
- CEC function (TV remote can control the volume)
- Output audio simultaneously from both L/R and 3.5mm ports.
- Easy to install and simple to operate
The DA26 HDMI ARC audio down-mixer can extract the audio signal from ARC-enabled HDTV to 2 channels of analog stereo audio output, for audio receiver/amplifier/ headphone applications. It features PCM 2.0/Dolby 5.1 /DTS 5.1 audio down-mixing. TV remote can control the volume via the CEC function. It Output audio simultaneously from both L/R and 3.5mm ports.
OREI DA26 is a compact and easy-to-use solution for sending audio from an ARC-enabled TV to a traditional audio system.
Package Includes DA26 HDMI ARC Audio Down-mixer, 1x USB Cable (USB-A to Micro USB), and User Manual.
[shortdes]
- HDMI 1.3 compliant
- Extract audio signal from ARC
- PCM 2.0, Dolby 5.1, DTS 5.1
[/shortdes]
[tab]
CONNECTIVITY
| INPUT PORTS: |
1 × HDMI Type A [19-pin female] |
|
1 × Micro USB |
| OUTPUT PORTS: |
1 × L/R Audio Out [RCA] |
|
1 × 3.5mm L/R |
COMPLIANCES
| HDMI Compliance |
HDMI 1.3 or above |
AUDIO AND VIDEO
| HDMI Audio Formats: |
PCM 2.0, Dolby 5.1, DTS 5.1 |
FUNCTIONS

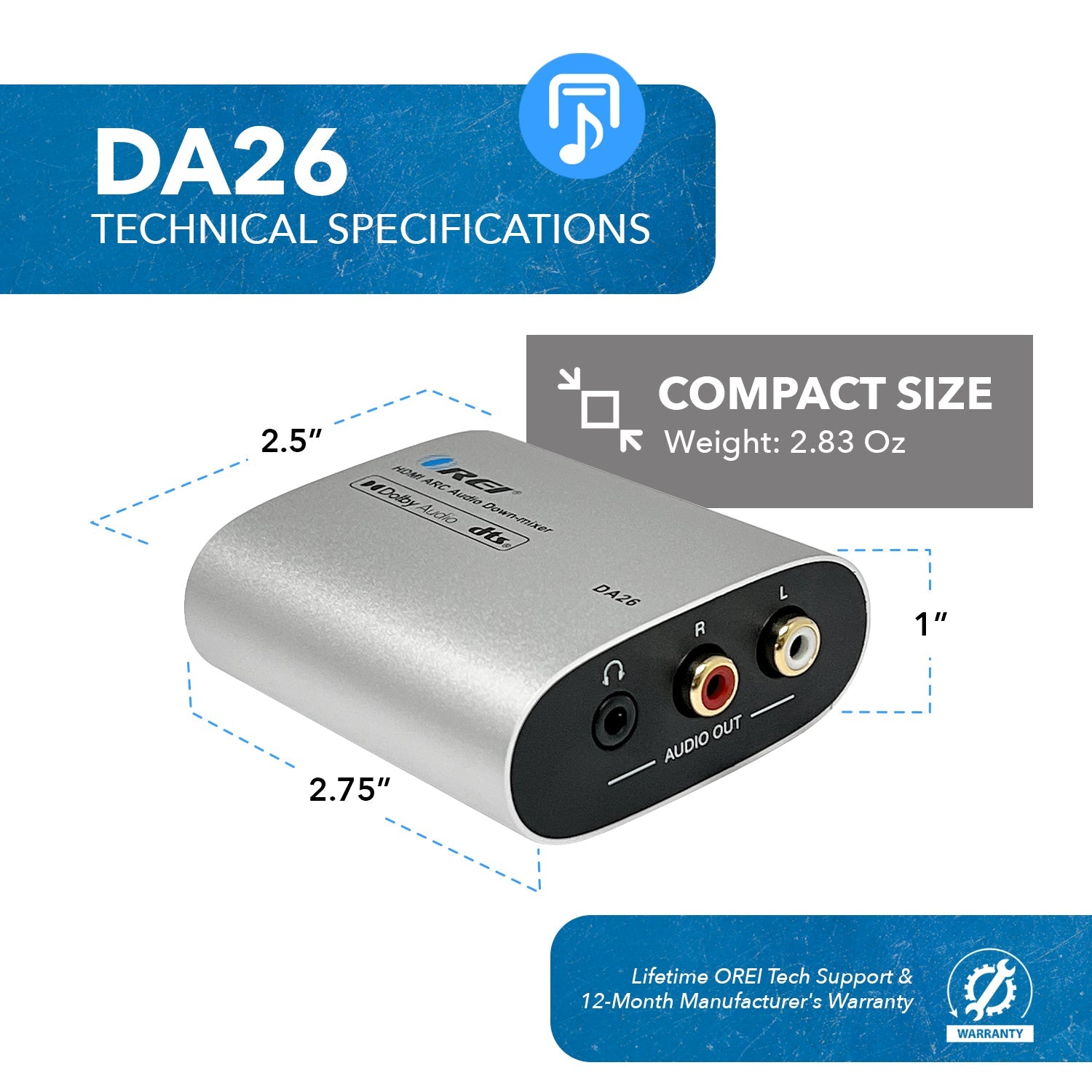

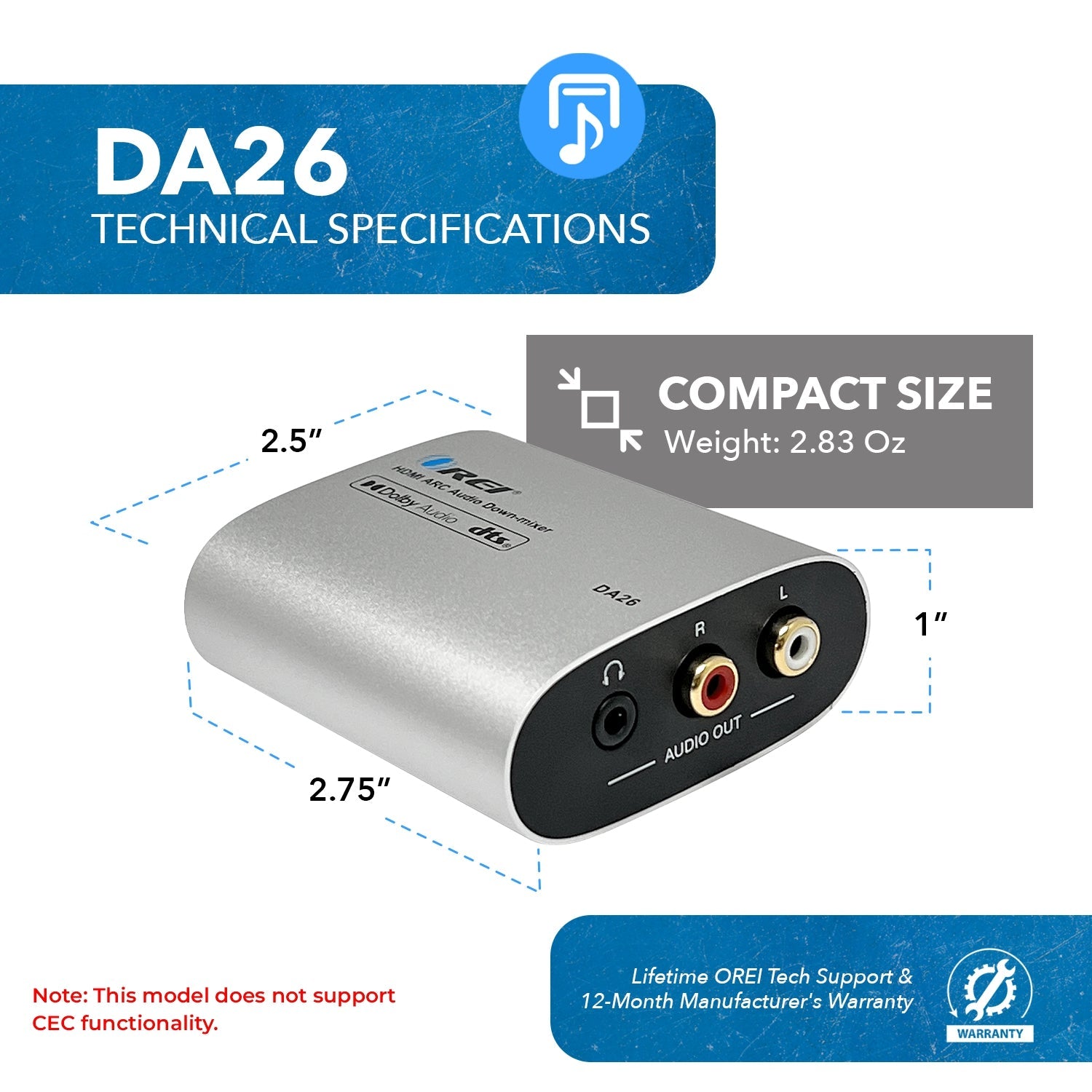

DIMENSIONS & WEIGHT
| Height: |
27mm |
| Width: |
70mm |
| Depth: |
65mm |
| Weight: |
80g |
PROTECTION
| Operation Temperature: |
32~104°F/0~40°C |
| Storage temperature: |
-4~140°F/-20~60°C |
| Relative Humidity: |
20~90% RH (non-condensing) |
| ESD Protection: |
Human-body Model: ±8kV (Air-gap discharge), ±4kV (Contact discharge) |
POWER
| Power Consumption (Max): |
0.86W (Max) |
| Power Supply: |
USB 5V/500mA |
PROPERTIES
| Color: |
Silver |
| Housing: |
Aluminium Enclosure |
PACKAGE CONTENTS
| 1x DA26 HDMI ARC Audio Down-mixer |
| 1x USB Cable (USB-A to Micro USB) |
| 1x User Manual |
WARRANTY
| 1-Year Manufacturer's Warranty |
[/tab]
